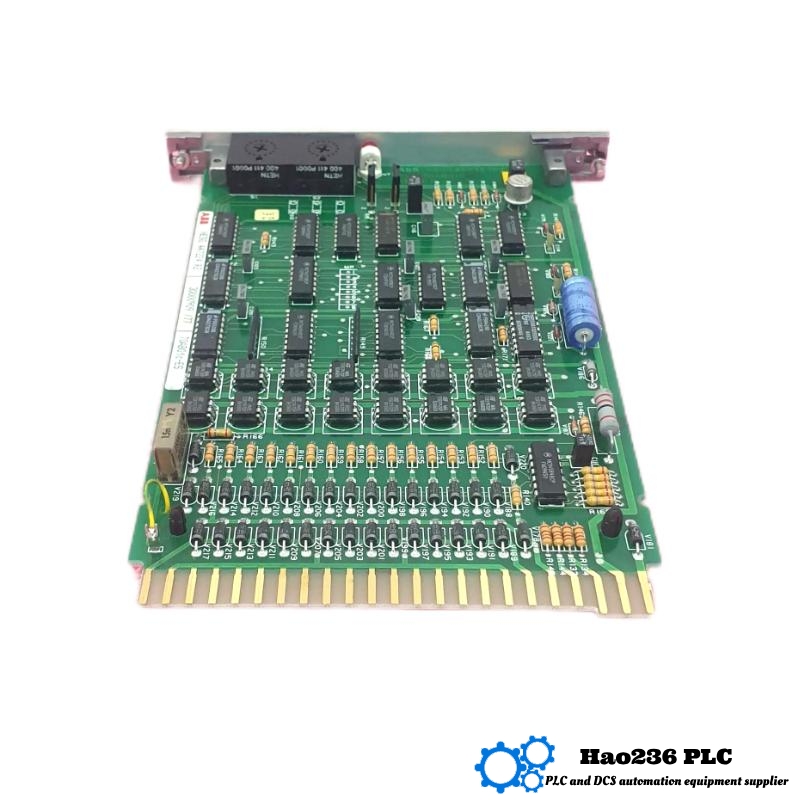

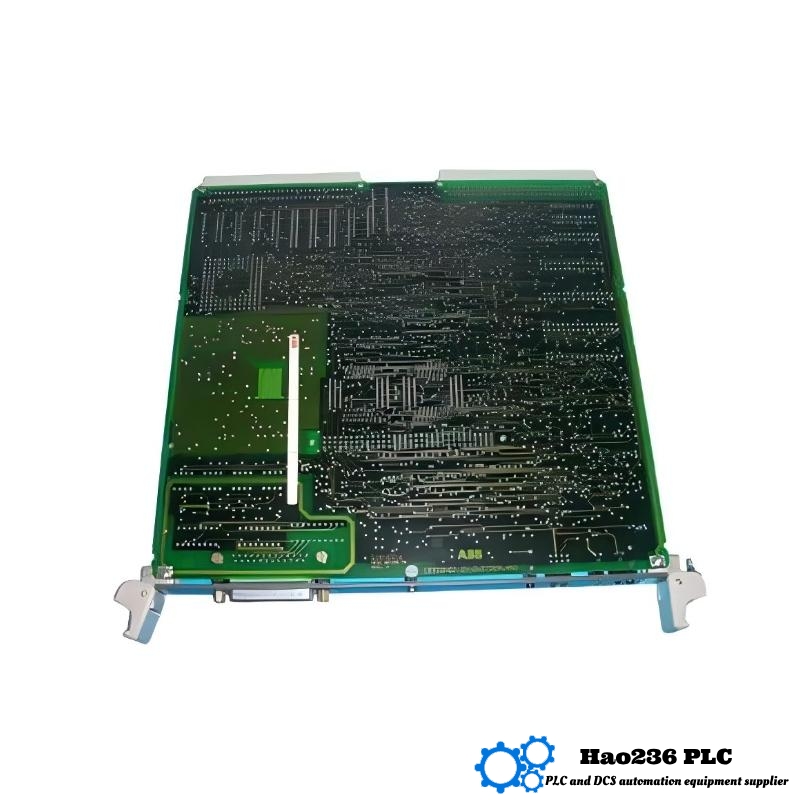

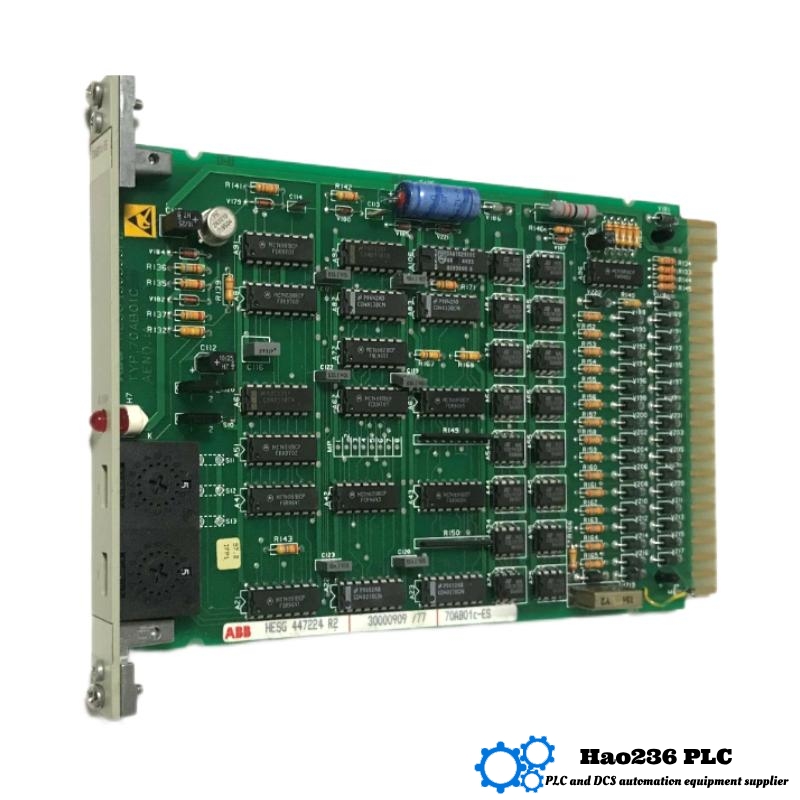

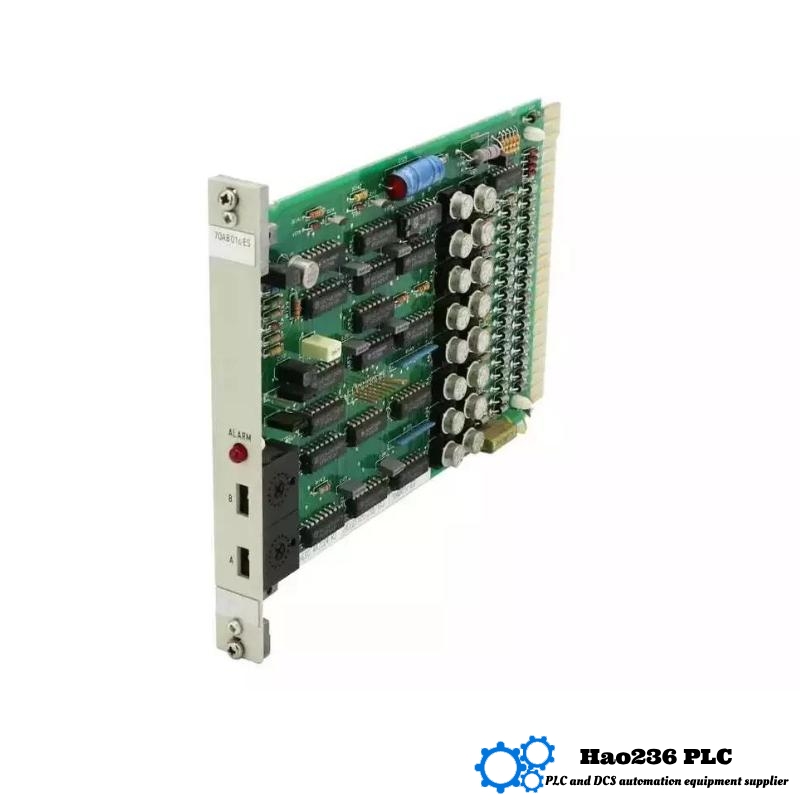

Product Overview: ABB 70AB01C-ES HESG447224R2 DCS System Binary Signal Output Module
The ABB 70AB01C-ES HESG447224R2 is a high-performance binary signal output module designed for the ABB Distributed Control System (DCS). It provides reliable, precise, and scalable output of binary signals, essential for process control and automation systems across industries. This module enables seamless integration with various components of ABB’s DCS systems, providing outstanding functionality in complex industrial environments.
Brand: ABB
Series: ABB DCS (Distributed Control System)
Model Number: 70AB01C-ES HESG447224R2
Product Parameters
| Parameter | Value |
|---|---|
| Model | ABB 70AB01C-ES HESG447224R2 |
| Dimensions (L x W x H) | 240 x 140 x 85 mm |
| Weight | 1.6 kg |
| Output Type | Binary (ON/OFF) |
| Number of Channels | 16 Channels (Output) |
| Output Voltage | 24 VDC ±10% |
| Max Output Current | 0.5 A per Channel |
| Temperature Range | -20°C to 60°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Power Supply | 24 VDC |
| Communication Protocol | Fieldbus, Modbus, Profibus |
| Mounting Type | Rack-mounted or DIN rail |
Product Description
The ABB 70AB01C-ES HESG447224R2 is a robust binary signal output module designed for use in ABB’s Distributed Control Systems (DCS). It offers 16 independent output channels that operate with high precision and reliability, providing efficient control over ON/OFF binary signals in various industrial automation processes.
This module is engineered to meet the demands of industrial environments, providing high tolerance to temperature fluctuations, humidity, and electrical noise. Its modular design allows it to be seamlessly integrated into existing DCS configurations, ensuring minimal disruption during system upgrades or expansions. The 24 VDC ±10% output voltage ensures the safe and reliable operation of connected devices while maintaining energy efficiency.
This output module is particularly suitable for environments where a large number of binary signals are required for control purposes, such as in process automation, control of machinery, and critical operations in industries such as oil & gas, chemical processing, power generation, and water treatment.
Applications
- Industrial Automation: Ideal for controlling actuators, switches, and other binary devices in complex automation systems.
- Process Control: Used extensively in chemical, petrochemical, and pharmaceutical plants for controlling processes that require precise ON/OFF switching.
- Power Generation: Enables the efficient control of power plants by providing the necessary output signals to machinery, generators, and other control devices.
- Water Treatment: Ensures accurate control of water treatment facilities by managing pumps, valves, and other binary devices.
- Manufacturing Systems: Commonly used in production lines for controlling various equipment and systems in automotive, food & beverage, and electronics manufacturing.
Advantages
- High Precision: Provides 16 reliable binary outputs with precise ON/OFF control, ensuring high accuracy in process control systems.
- Robust and Durable: Designed to operate in harsh industrial environments with a wide temperature range of -20°C to 60°C, it offers durability in challenging conditions.
- Energy Efficiency: The 24 VDC output ensures power-efficient operation, reducing the overall energy consumption of the system.
- Modular Design: Easily integrates into existing ABB DCS systems, allowing for flexible and scalable configurations.
- Wide Compatibility: Supports multiple communication protocols, including Modbus and Profibus, ensuring compatibility with a broad range of automation systems.
- Compact and Space-Saving: The compact design (240 x 140 x 85 mm) ensures easy installation in limited spaces, optimizing system efficiency.
Recommended Related Models from the ABB DCS System
| Model | Key Features | Dimensions (L x W x H) | Weight |
|---|---|---|---|
| 70AB02C-ES | 16 channels, suitable for large control systems | 240 x 140 x 85 mm | 1.6 kg |
| 70AB03C-ES | Enhanced diagnostics, fault detection features | 240 x 140 x 85 mm | 1.6 kg |
| 70AB04C-ES | High tolerance for harsh environmental conditions | 240 x 140 x 85 mm | 1.6 kg |
| 70AB05C-ES | Compact and flexible for diverse applications | 240 x 140 x 85 mm | 1.6 kg |
| 70AB06C-ES | Increased communication protocol support | 240 x 140 x 85 mm | 1.7 kg |
Top 5 Popular ABB Models
| Model | Key Features | Dimensions (L x W x H) | Weight |
|---|---|---|---|
| 07KT98G | Compact, modular design for versatile applications | 240 x 140 x 85 mm | 1.6 kg |
| 07KT87G | High performance, designed for harsh environments | 240 x 140 x 85 mm | 1.7 kg |
| 07KT85G | Flexible I/O options, suitable for large systems | 240 x 140 x 85 mm | 1.6 kg |
| 07KT80G | Suitable for high-speed control applications | 240 x 140 x 85 mm | 1.6 kg |
| 07KT82G | Advanced functionality for complex industrial needs | 240 x 140 x 85 mm | 1.6 kg |
FAQ (Frequently Asked Questions)
-
Q: How many output channels does the ABB 70AB01C-ES have?
A: It has 16 independent binary output channels. -
Q: What is the output voltage range for this module?
A: The output voltage range is 24 VDC ±10%. -
Q: Can this module be used in extreme temperature conditions?
A: Yes, it operates in temperatures from -20°C to 60°C. -
Q: What is the maximum current per channel?
A: The maximum output current per channel is 0.5 A. -
Q: What communication protocols are supported by the ABB 70AB01C-ES?
A: It supports Fieldbus, Modbus, and Profibus protocols. -
Q: Is the ABB 70AB01C-ES module easy to integrate into existing systems?
A: Yes, it easily integrates with ABB’s DCS systems and other industrial automation systems. -
Q: What is the weight of the ABB 70AB01C-ES module?
A: The weight is 1.6 kg. -
Q: Can this module handle high-demand control systems?
A: Yes, it is designed for reliable performance in demanding industrial environments. -
Q: What industries typically use the ABB 70AB01C-ES module?
A: It is used in industries such as power generation, oil and gas, water treatment, and manufacturing. -
Q: What is the mounting type for the ABB 70AB01C-ES?
A: It can be mounted on racks or DIN rails for easy installation.
