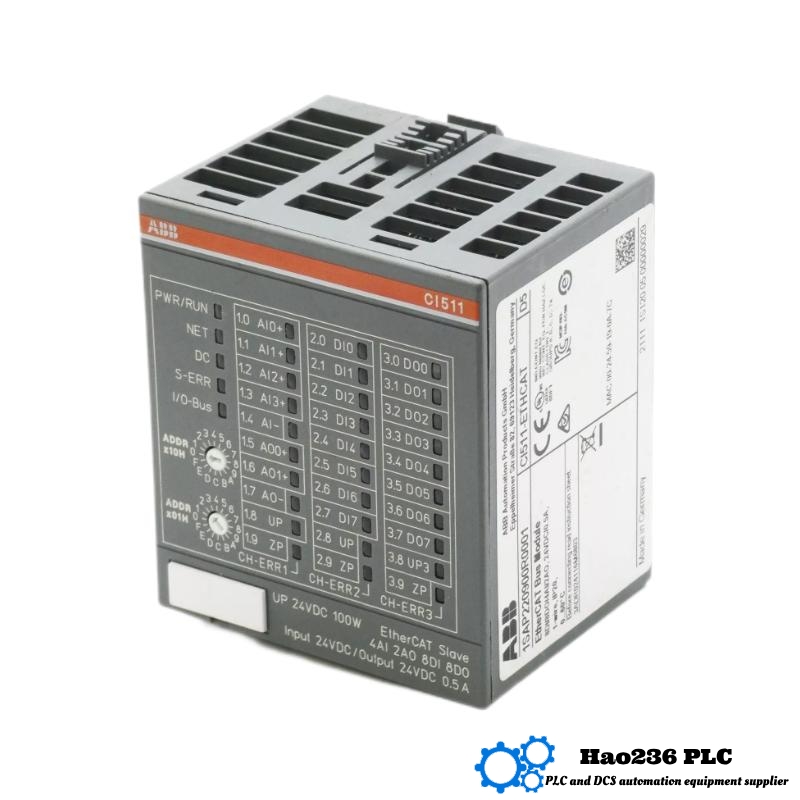

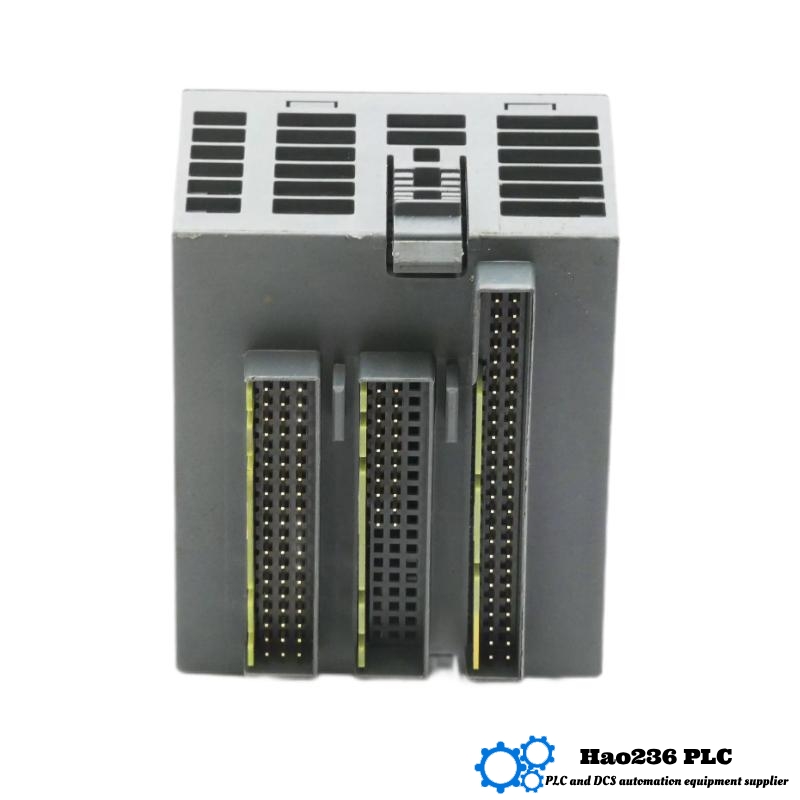

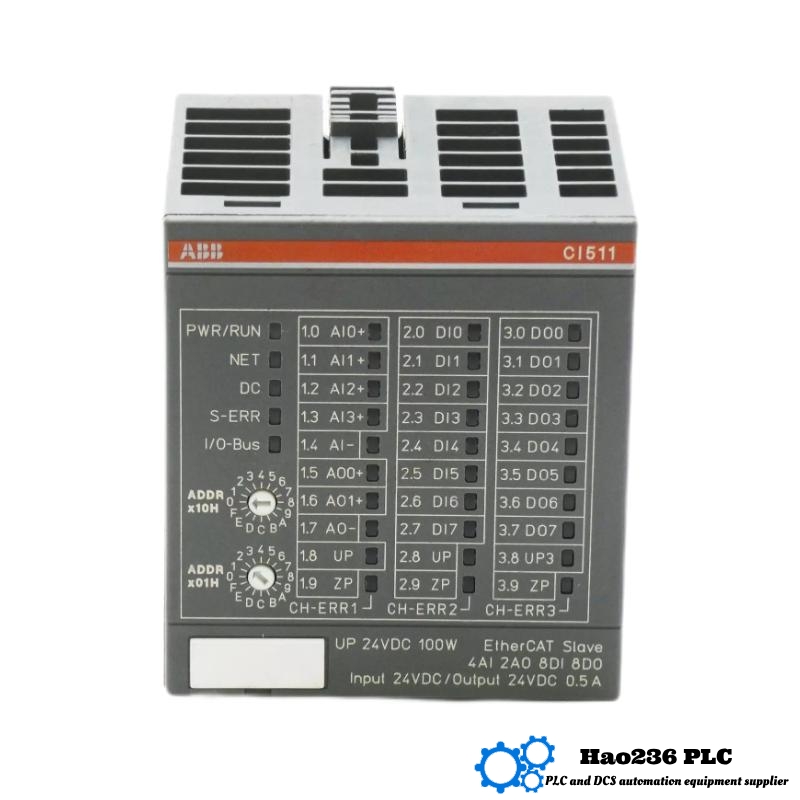

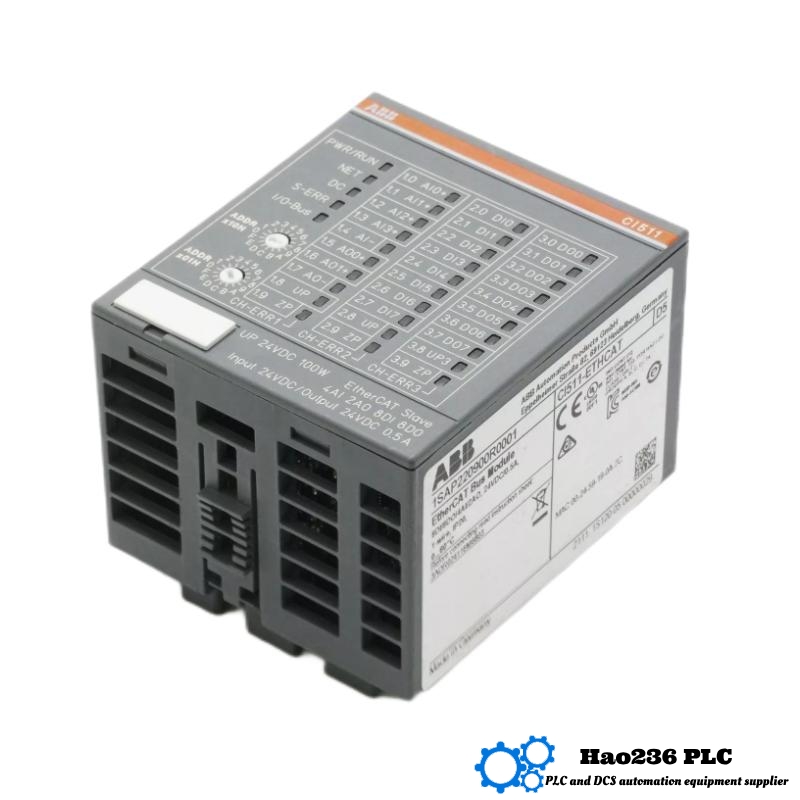

ABB CI511-ETHCAT 1SAP220900R0001 S500 Interface Module
Product Introduction
The ABB CI511-ETHCAT 1SAP220900R0001 is a versatile and efficient interface module from ABB’s S500 I/O system series. This module facilitates seamless integration between ABB’s S500 I/O systems and industrial Ethernet networks, specifically supporting EtherCAT. It plays a crucial role in providing reliable and high-speed communication between devices in an automation network, ensuring optimal system performance and real-time data transmission.
The CI511-ETHCAT module is designed for demanding industrial environments, offering high scalability and robust data handling capabilities. This module allows for quick integration into industrial control systems, helping to reduce setup time and maintenance costs while ensuring high levels of performance and reliability.
Applications
-
Industrial Automation: Perfect for automating manufacturing processes by connecting sensors, actuators, and controllers through high-speed EtherCAT communication.
-
Factory Automation: Used in assembly lines, robotics, and other factory automation systems where efficient, reliable data transmission is required.
-
Process Control Systems: Ideal for industries such as chemical, petrochemical, and food processing, where real-time control and monitoring are crucial.
-
Energy and Utilities: Facilitates communication in power plants, renewable energy systems, and grid control systems, enabling efficient energy management.
-
Building Automation: Supports the integration of building management systems, controlling HVAC, lighting, and security systems.
Advantages
-
High-Speed Communication: The CI511-ETHCAT module ensures fast, real-time communication with EtherCAT technology, making it ideal for high-speed control and monitoring.
-
Ease of Integration: This module is designed for easy integration with the ABB S500 I/O system and existing control infrastructure, making it user-friendly and time-efficient.
-
Compact Design: Measuring just 62 x 76 x 67.5 mm, the CI511-ETHCAT module offers a compact footprint that makes it ideal for installations with limited space.
-
Reliable Performance: Built to perform in harsh industrial environments, this module ensures reliability and longevity, even in high-demand conditions.
-
Scalable and Flexible: The CI511-ETHCAT is scalable, allowing users to expand their control systems without significant redesign or additional components.
-
Low Power Consumption: With minimal energy usage, this module helps reduce overall system operating costs while maintaining peak performance.
Brand: ABB
ABB is a global leader in industrial automation, power, and electrification technologies. Known for its innovative solutions, ABB delivers products and systems that improve productivity, efficiency, and sustainability for industries worldwide.
Series: S500 Series
The S500 Series is ABB’s modular I/O system designed for flexible and scalable industrial automation. It provides a range of input and output modules for various applications, allowing businesses to easily integrate different devices into a single system.
Specifications Table
| Feature | Description |
|---|---|
| Model | CI511-ETHCAT 1SAP220900R0001 |
| Dimensions | 62 x 76 x 67.5 mm |
| Weight | 0.138 kg |
| Communication Protocol | EtherCAT |
| Mounting Type | DIN rail mounting |
| Power Consumption | 0.5 W |
| I/O Modules Supported | Compatible with all ABB S500 I/O modules |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Connection Ports | 1x EtherCAT, 1x Ethernet |
| LED Indicators | Yes (for status and communication) |
Recommended Models
5 Related Models (Same Series)
| Model | Description | Dimensions | Weight |
|---|---|---|---|
| CI510-ETHCAT 1SAP220900R0001 | EtherCAT communication module | 62 x 76 x 67.5 mm | 0.139 kg |
| CI512-ETHCAT 1SAP220901R0001 | Advanced EtherCAT interface module | 62 x 76 x 67.5 mm | 0.140 kg |
| CI515-ETHCAT 1SAP220902R0001 | EtherCAT module with additional ports | 62 x 76 x 67.5 mm | 0.142 kg |
| CI520-ETHCAT 1SAP220903R0001 | EtherCAT interface for large systems | 62 x 76 x 67.5 mm | 0.141 kg |
| CI530-ETHCAT 1SAP220904R0001 | High-speed EtherCAT interface | 62 x 76 x 67.5 mm | 0.143 kg |
5 Popular ABB Models
| Model | Description | Dimensions | Weight |
|---|---|---|---|
| DI521 1SAP221310R0001 | Digital Input Module | 62 x 76 x 67.5 mm | 0.139 kg |
| DO521 1SAP221320R0001 | Digital Output Module | 62 x 76 x 67.5 mm | 0.140 kg |
| AI532 1SAP221330R0001 | Analog Input Module | 62 x 76 x 67.5 mm | 0.141 kg |
| AO532 1SAP221340R0001 | Analog Output Module | 62 x 76 x 67.5 mm | 0.142 kg |
| TB520 1SAP221350R0001 | Terminal Block Module | 62 x 76 x 67.5 mm | 0.138 kg |
FAQ (Frequently Asked Questions)
Q1: What is the CI511-ETHCAT module used for?
A1: The CI511-ETHCAT module is used to integrate ABB’s S500 I/O systems with EtherCAT, enabling high-speed communication between industrial devices.
Q2: Can the CI511-ETHCAT module be used with other brands of I/O systems?
A2: No, the CI511-ETHCAT module is specifically designed for use with ABB’s S500 I/O system.
Q3: What is the power consumption of the CI511-ETHCAT module?
A3: The module consumes 0.5 W of power.
Q4: Is the CI511-ETHCAT module suitable for outdoor installations?
A4: The module is designed for indoor use, but with appropriate housing, it may be used in outdoor environments.
Q5: What is the mounting type for the CI511-ETHCAT module?
A5: The module is mounted on a DIN rail, providing a simple and secure installation method.
Q6: What is the operating temperature range of the CI511-ETHCAT module?
A6: The operating temperature range is from -20°C to +60°C.
Q7: Can the CI511-ETHCAT module support multiple EtherCAT devices?
A7: Yes, the module supports multiple EtherCAT devices, depending on the system configuration and network capacity.
Q8: How does the CI511-ETHCAT module communicate with other devices?
A8: The module uses EtherCAT for high-speed, real-time communication between devices.
Q9: Does the CI511-ETHCAT module have diagnostic indicators?
A9: Yes, the module includes LED indicators for status and communication diagnostics.
Q10: What is the weight of the CI511-ETHCAT module?
A10: The module weighs 0.138 kg.
