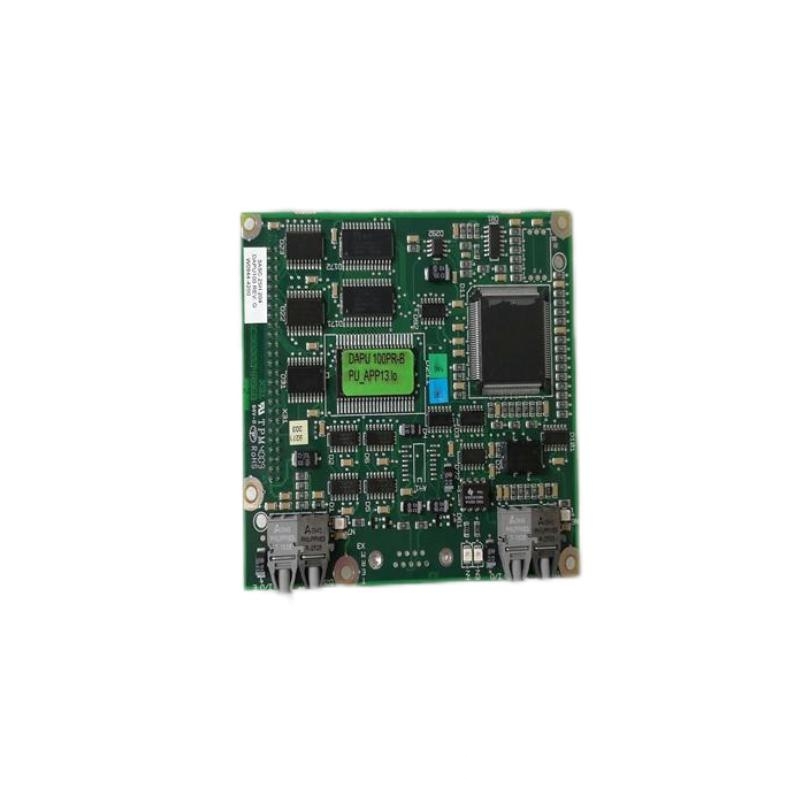

ABB DAPU100 3ASC25H204 I/O Control Board
Product Introduction
The ABB DAPU100 3ASC25H204 is an advanced I/O control board designed to integrate seamlessly into ABB’s automation systems. It is a versatile component that facilitates communication and data processing between field devices and the central control system. This board is an essential part of industrial control systems, providing high-speed, reliable, and flexible I/O functions to improve efficiency and control in various industrial applications.
The DAPU100 I/O control board is designed with precision and reliability in mind, offering a robust solution for handling a wide range of I/O operations. Its flexible configuration and ease of integration make it an ideal choice for industries such as manufacturing, process control, energy management, and more.
Product Specifications
| Parameter | Details |
|---|---|
| Model | ABB DAPU100 3ASC25H204 |
| Type | I/O Control Board |
| Dimensions (L × W × H) | 165 x 100 x 20 mm |
| Weight | 0.35 kg |
| Input Channels | 16 digital inputs, 8 analog inputs |
| Output Channels | 16 digital outputs, 8 analog outputs |
| Input Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Communication Protocol | Modbus, Profibus, Ethernet |
| Temperature Range | -20°C to +60°C |
| Mounting Type | DIN Rail |
| Power Consumption | 3 W |
| Protection Class | IP20 |
| Mounting | Modular, DIN rail |
Applications
The ABB DAPU100 I/O control board is used in a variety of industries and applications where control and monitoring of field devices are necessary. Some of the key applications include:
-
Manufacturing Automation: It is used for controlling sensors, actuators, and other devices in assembly lines, packaging systems, and robotic systems.
-
Process Control: The DAPU100 module is ideal for applications in chemical, oil & gas, food & beverage, and pharmaceutical industries, where high-precision control is required.
-
Energy Management: The module supports efficient energy control systems by connecting various electrical devices and providing accurate monitoring.
-
Building Automation: Used in controlling HVAC systems, lighting, access control, and other essential building systems.
-
Safety Systems: It can be integrated into emergency shutdown systems, alarm systems, and other safety-critical applications in industrial environments.
Advantages
-
High-Speed I/O Operations: With the ability to handle both digital and analog inputs and outputs, the DAPU100 offers quick and precise data processing.
-
Seamless Integration: This module integrates easily with ABB’s control systems, ensuring smooth communication between different components of the automation system.
-
Compact and Robust Design: Its compact size (165 x 100 x 20 mm) allows it to be used in tight spaces, and its durable construction ensures reliable operation in industrial environments.
-
Flexible Configuration: The DAPU100 supports a variety of input and output configurations, providing flexibility for different industrial requirements.
-
Wide Temperature Range: The module operates efficiently in temperatures ranging from -20°C to +60°C, making it suitable for harsh environments.
-
Energy Efficiency: The module has a low power consumption of only 3 W, contributing to overall energy savings in industrial automation systems.
Brand and Series
-
Brand: ABB (Asea Brown Boveri)
ABB is a globally recognized leader in industrial automation, providing high-quality solutions designed to increase efficiency and productivity. The DAPU Series offers a range of I/O control boards and modules that enhance control systems and communication networks in industrial automation.
Recommended Related Models
| Model | Description | Key Parameters |
|---|---|---|
| ABB DAPU101 3ASC25H205 | I/O control board with additional inputs | 24 digital inputs, 16 analog inputs, 24 V DC, Modbus |
| ABB DAPU102 3ASC25H206 | Extended I/O control board for high-density applications | 32 digital inputs, 16 analog outputs, 24 V DC |
| ABB DAPU103 3ASC25H207 | Compact I/O board with analog output focus | 16 analog outputs, 8 digital inputs, 24 V DC |
| ABB DAPU104 3ASC25H208 | Digital and analog I/O board for large-scale systems | 48 digital inputs, 32 analog outputs, Profibus |
| ABB DAPU105 3ASC25H209 | Modular I/O board for flexible applications | 16 digital outputs, 8 analog inputs, Ethernet |
| ABB DAPU106 3ASC25H210 | High-speed I/O board for industrial networks | 32 digital outputs, 16 analog inputs, 24 V DC |
Popular ABB Models
| Model | Description | Key Parameters |
|---|---|---|
| ABB DAPU200 3ASC25H211 | High-performance I/O control board for complex automation systems | 32 digital inputs, 16 analog outputs |
| ABB DAPU201 3ASC25H212 | Extended I/O control module for precise monitoring | 24 digital inputs, 12 analog outputs, Profibus |
| ABB DAPU202 3ASC25H213 | Advanced I/O board with real-time data processing | 16 digital outputs, 8 analog inputs, Modbus |
| ABB DAPU203 3ASC25H214 | Digital I/O control board with quick response times | 48 digital inputs, 16 analog outputs, 24 V DC |
| ABB DAPU300 3ASC25H215 | Modular I/O control board for large automation systems | 64 digital inputs, 32 analog outputs, Ethernet |
| ABB DAPU301 3ASC25H216 | Compact I/O board for small-scale systems | 16 digital inputs, 8 analog outputs, Modbus |
FAQ
Q1: What is the input voltage for the ABB DAPU100 I/O control board?
A1: The input voltage is 24 V DC.
Q2: How many digital input channels are supported by the ABB DAPU100?
A2: The ABB DAPU100 supports 16 digital input channels.
Q3: Does the ABB DAPU100 support analog outputs?
A3: Yes, it supports 8 analog outputs.
Q4: What is the weight of the ABB DAPU100 module?
A4: The weight is 0.35 kg.
Q5: Can the ABB DAPU100 be used in process control systems?
A5: Yes, it is ideal for use in process control applications where precise input/output management is required.
Q6: What is the temperature range of the ABB DAPU100 module?
A6: The operating temperature range is -20°C to +60°C.
Q7: What communication protocols does the ABB DAPU100 support?
A7: The ABB DAPU100 supports Modbus, Profibus, and Ethernet communication protocols.
Q8: Can the ABB DAPU100 be mounted on a DIN rail?
A8: Yes, the ABB DAPU100 can be mounted on a DIN rail.
Q9: What is the power consumption of the ABB DAPU100 module?
A9: The power consumption is 3 W.
Q10: Is the ABB DAPU100 suitable for energy management systems?
A10: Yes, the module is suitable for energy management and monitoring applications.
