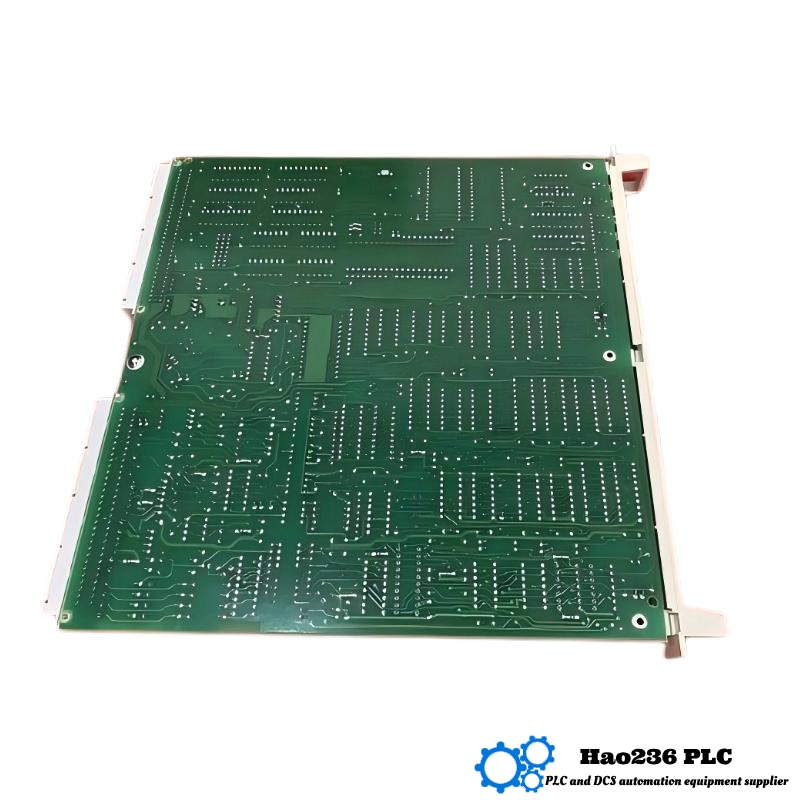

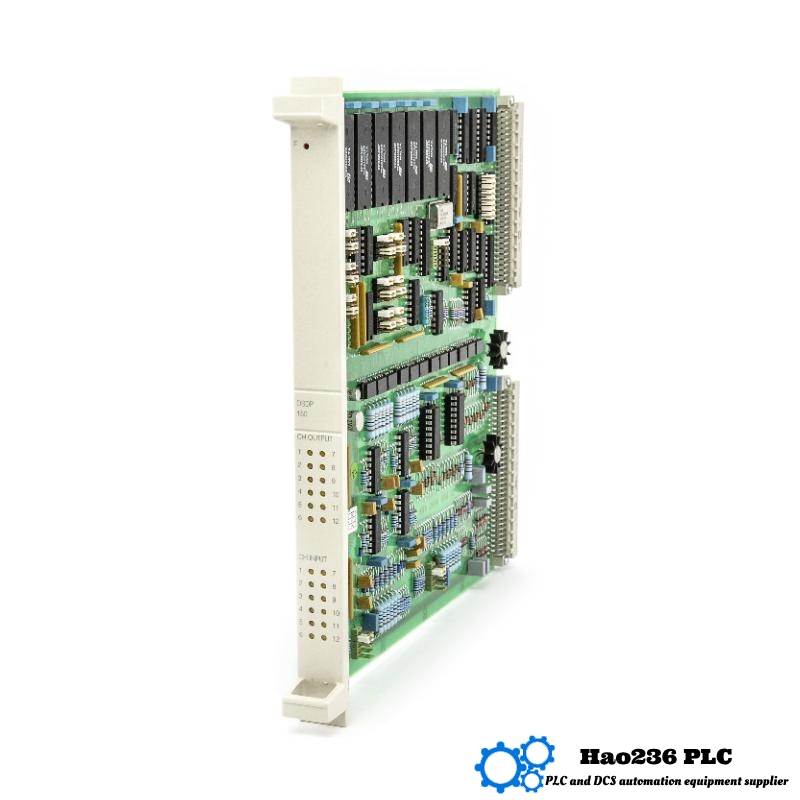

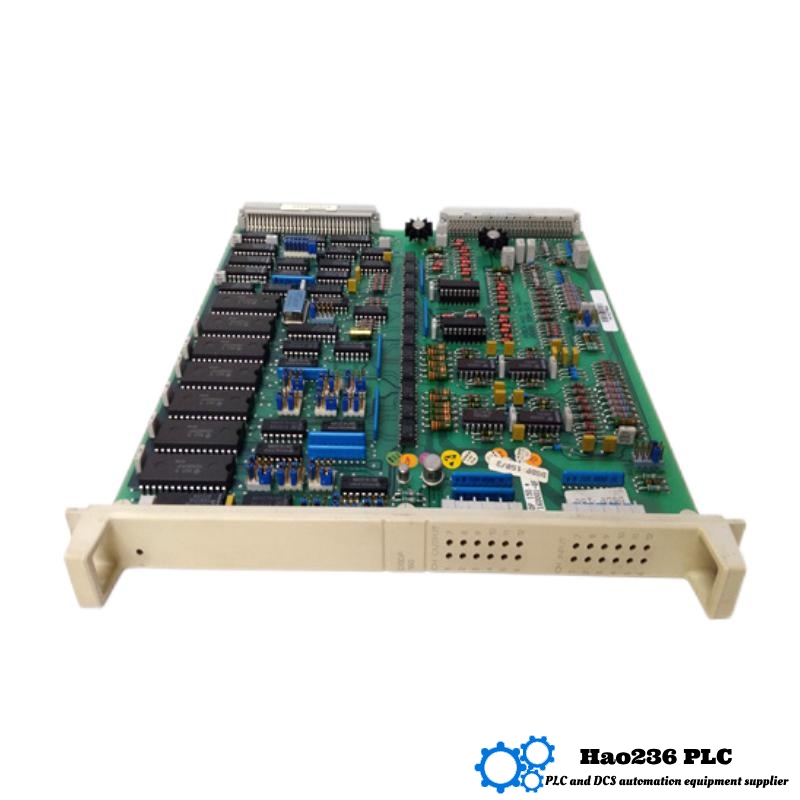

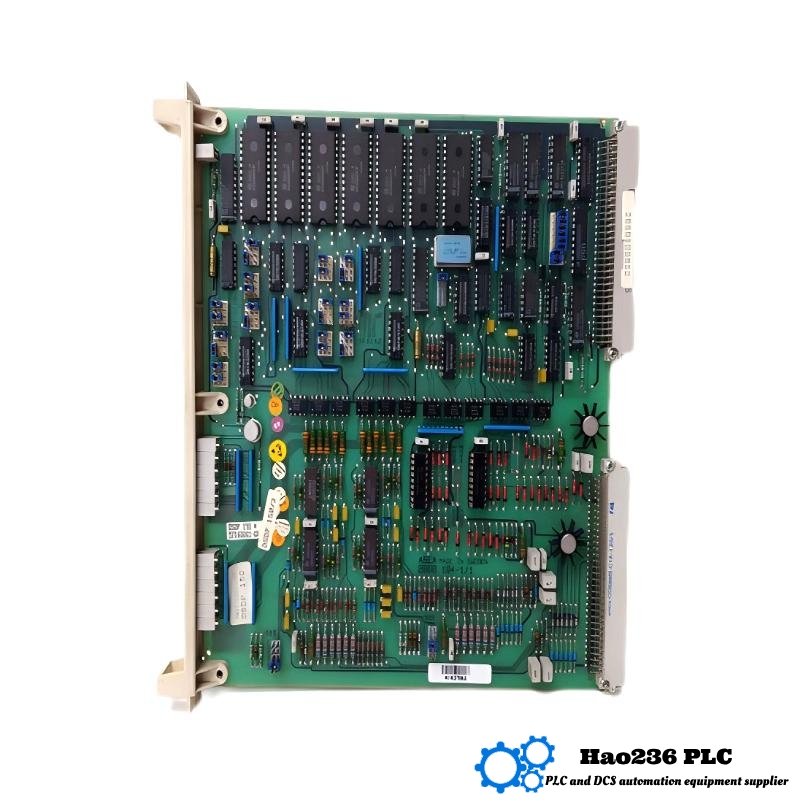

ABB DSDP 150 57160001-GF Pulse Encoder Input Unit
Product Introduction:
The ABB DSDP 150 57160001-GF is a high-performance pulse encoder input unit designed for seamless integration within ABB’s industrial control systems. This unit allows for the precise measurement and processing of pulse signals from rotary or linear encoders. It is ideal for applications requiring accurate position and speed control in automation systems. The DSDP 150 unit ensures reliability and precision, enabling real-time monitoring of mechanical movements.
Product Applications:
The DSDP 150 pulse encoder input unit is widely used in a range of industries for applications including:
-
Positioning systems for industrial machinery
-
Speed and direction monitoring in rotating equipment
-
Automation control in manufacturing lines
-
Process control for conveyor systems and assembly lines
-
Robotics for precise movement and control
-
Measurement systems for monitoring velocity and displacement
Advantages of the Product:
-
High Accuracy: Provides precise input for pulse encoding, ensuring reliable feedback for position and speed monitoring in automated systems.
-
Robust Performance: Designed to work seamlessly within ABB’s control systems, the DSDP 150 offers robust performance in demanding industrial environments.
-
Flexible Integration: Easy integration with other ABB modules and systems, improving overall system functionality.
-
High-Speed Processing: Capable of processing pulse signals at high speeds for real-time control in applications requiring fast response times.
-
Cost-Effective: Offers excellent value for performance and cost, making it an ideal solution for a wide range of applications.
Brand and Series:
-
Brand: ABB
Product Parameters
| Parameter | Value |
|---|---|
| Model | DSDP 150 57160001-GF |
| Type | Pulse Encoder Input Unit |
| Dimensions (L x W x H) | 360 x 15 x 250 mm |
| Weight | 0.425 kg |
| Input Type | Pulse Encoder |
| Pulse Inputs | 8 configurable channels |
| Communication | DS-Local Bus interface |
| Mounting | DIN Rail |
| Operating Temperature | -25°C to +60°C |
| Humidity Range | 5% to 95% (non-condensing) |
Recommended Models (Same Series or Related)
| Model | Type | Pulse Inputs | Voltage | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| DSDP 130B | Pulse Encoder Input Unit | 6 | 24 VDC | 350 x 20 x 255 | 0.40 kg |
| DSDP 140B | Pulse Encoder Input Unit | 8 | 24 VDC | 350 x 20 x 255 | 0.44 kg |
| DSDP 120B | Pulse Encoder Input Unit | 4 | 24 VDC | 350 x 20 x 255 | 0.38 kg |
| DSDP 125B | Pulse Encoder Input Unit | 4 | 24 VDC | 350 x 20 x 255 | 0.37 kg |
| DSDP 145B | Pulse Encoder Input Unit | 10 | 24 VDC | 350 x 20 x 255 | 0.47 kg |
Recommended Popular ABB Models
| Model | Type | Application | Dimensions (mm) | Weight |
|---|---|---|---|---|
| PM864AK01 | Control Processor | System Control | 185 x 160 x 85 | 1.5 kg |
| CI930F | Communication Interface | Remote Data Access | 110 x 110 x 50 | 0.3 kg |
| AI810 | Analog Input Module | Signal Monitoring | 100 x 50 x 75 | 0.28 kg |
| DI810 | Digital Input Module | Input Signal Acquisition | 100 x 50 x 75 | 0.26 kg |
| TU810V1 | Terminal Unit | Field Signal Connection | 100 x 50 x 75 | 0.25 kg |
FAQs
Q1: What is the input voltage for the DSDP 150 module?
A1: The DSDP 150 operates with a nominal input voltage of 24 VDC.
Q2: How many pulse inputs can the DSDP 150 handle?
A2: The DSDP 150 supports up to 8 configurable pulse inputs.
Q3: What is the weight of the DSDP 150 module?
A3: The DSDP 150 weighs 0.425 kg.
Q4: What is the temperature range for the DSDP 150 module?
A4: The DSDP 150 can operate in a temperature range of -25°C to +60°C.
Q5: How is the DSDP 150 module mounted?
A5: The module is mounted on a DIN rail.
Q6: What communication protocol does the DSDP 150 use?
A6: The DSDP 150 uses the DS-Local Bus interface for communication.
Q7: Can the DSDP 150 be used in harsh environments?
A7: Yes, it is designed for industrial environments and can operate in conditions ranging from 5% to 95% humidity (non-condensing).
Q8: Can the DSDP 150 module be integrated with other ABB modules?
A8: Yes, it can be easily integrated with other ABB modules in the INFI 90 series.
Q9: Is the DSDP 150 module suitable for high-speed applications?
A9: Yes, the module offers high-speed processing for real-time control in pulse-based applications.
Q10: What is the function of the DSDP 150 module?
A10: The DSDP 150 is a pulse encoder input unit that provides precise position and speed control in automation systems.
Precise Pulse Input for Accurate Automation
Achieve unparalleled precision in pulse encoding with the ABB DSDP 150. Whether monitoring speed, position, or process control, this module delivers real-time feedback for efficient automation.
Boost Your Automation with ABB's DSDP 150
ABB’s DSDP 150 Pulse Encoder Input Unit ensures fast and reliable pulse processing for your industrial applications. Perfect for high-speed, high-precision control systems.
Reliable Pulse Encoding for Industrial Applications
Experience accurate and dependable pulse input with ABB’s DSDP 150 module. Ideal for positioning systems and process control, it ensures optimized performance across a range of industries.
Simplify Your Automation with ABB's DSDP 150
Looking for high-speed pulse encoding? The DSDP 150 is your go-to solution for seamless integration and precise control in your automation systems.
