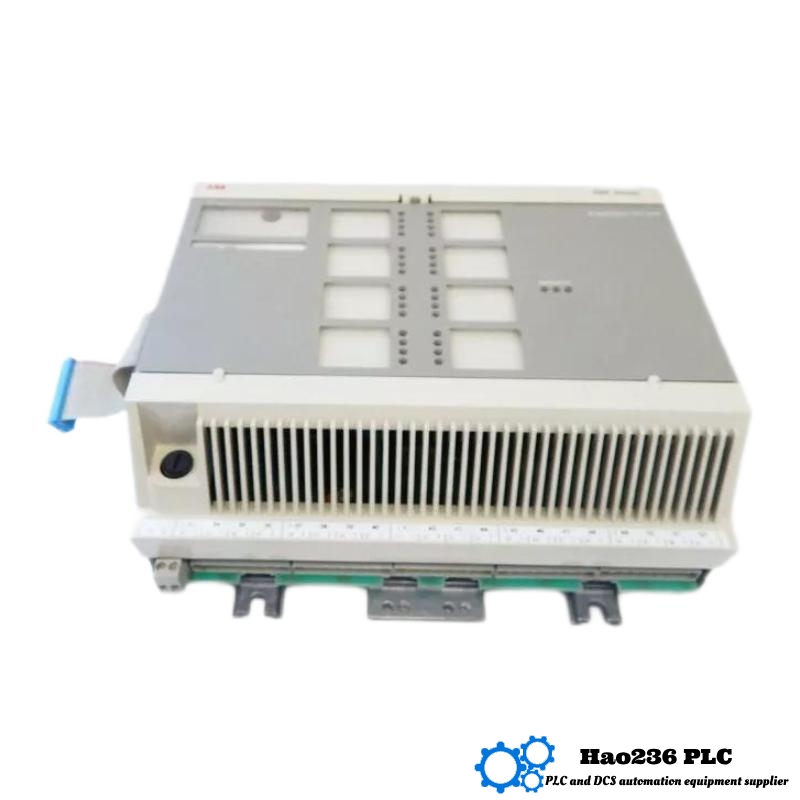

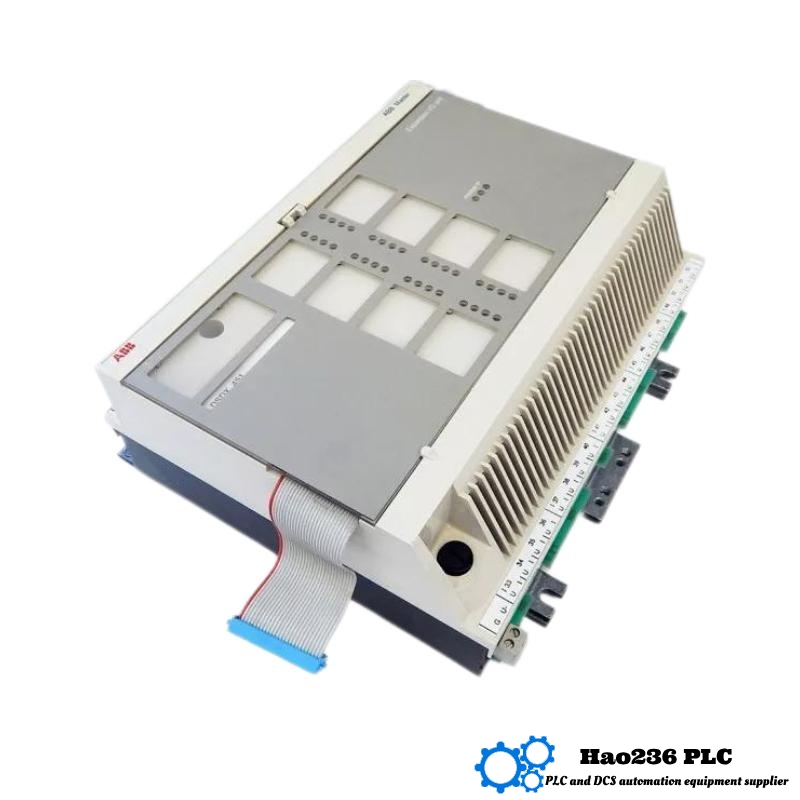

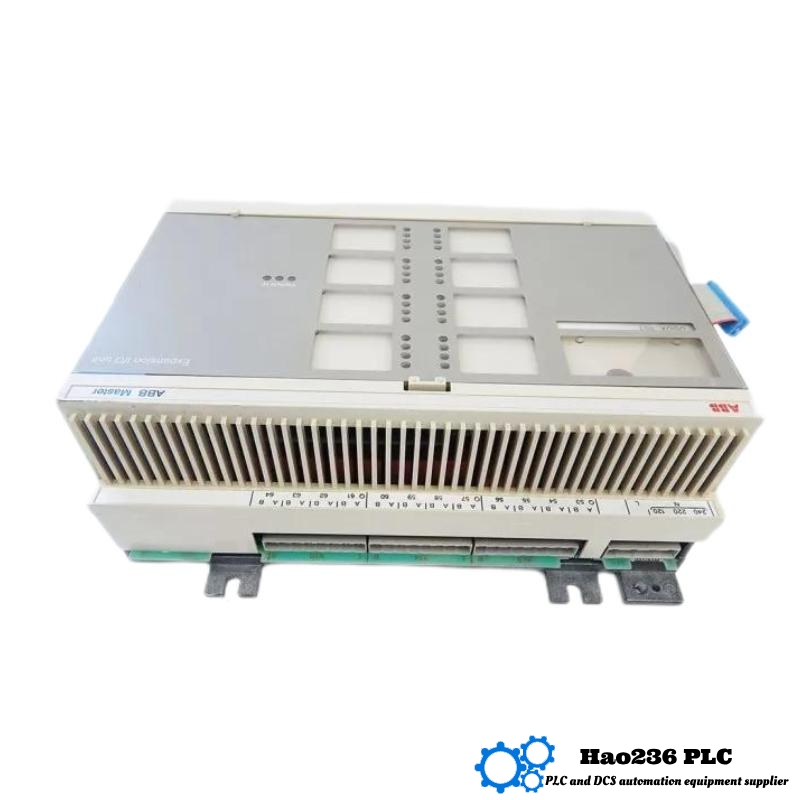

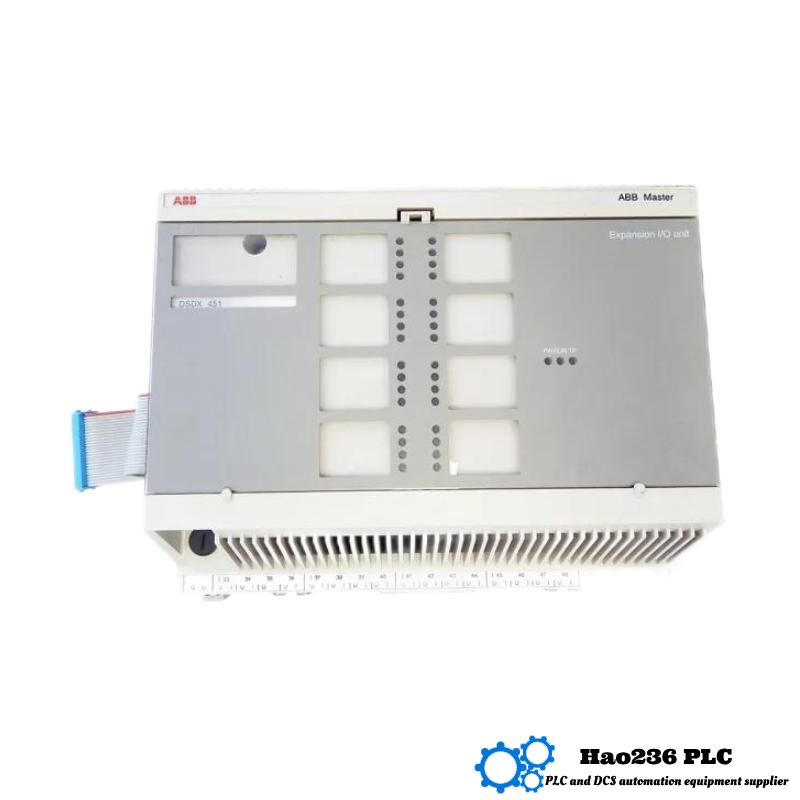

ABB DSDX 451 5716075-K Digital Input/Output Module
Product Introduction:
The ABB DSDX 451 5716075-K is a Remote Input/Output Expansion Unit designed to enhance the digital input and output capabilities of primary control systems in industrial environments. Manufactured by ABB, this module allows for the integration of additional sensors and actuators, thereby extending the functionality and flexibility of existing control systems. Its robust construction and reliable performance make it suitable for various industrial applications.
Key Features:
-
Expansion of I/O Channels: Provides additional digital input and output channels to the primary control system, facilitating the connection of more field devices.
-
Standardized Connectors: Equipped with specific plugs for seamless integration with various sensors and actuators.
-
Compact Design: Despite its robust capabilities, the module maintains a compact form factor, allowing for efficient use of space within control panels.
-
Industrial Compatibility: Designed to operate within standard industrial voltage levels and current ratings, ensuring compatibility with a wide range of industrial equipment.
-
Durable Construction: Built to withstand the rigors of industrial environments, offering reliability and longevity.
Applications:
The ABB DSDX 451 5716075-K module is utilized across various industries to enhance control system capabilities:
-
Industrial Automation: Expands the capacity of control systems to manage additional sensors and actuators in manufacturing processes.
-
Process Control: Facilitates the monitoring and control of complex processes by providing additional I/O channels.
-
Energy Management: Integrates with systems to monitor and control energy distribution and consumption.
-
Building Automation: Enhances building management systems by allowing the integration of more control points for lighting, HVAC, and security systems.
-
Transportation Systems: Utilized in control systems for transportation infrastructure to manage signaling and monitoring devices.
Advantages:
-
Enhanced System Flexibility: By providing additional I/O channels, the module allows for greater flexibility in system design and expansion.
-
Seamless Integration: Standardized connectors and compatibility with industrial voltage levels ensure easy integration into existing systems.
-
Compact and Space-Efficient: The module’s dimensions allow for efficient use of space within control cabinets.
-
Robust and Reliable: Designed to withstand industrial conditions, ensuring consistent performance and reduced downtime.
-
Scalable Solution: Enables gradual system expansion without the need for complete overhauls, offering a cost-effective approach to system upgrades.
Brand Information:
ABB is a global leader in industrial technology, specializing in electrification, robotics, automation, and motion. With a history spanning over a century, ABB is renowned for delivering innovative solutions that enhance productivity, efficiency, and sustainability across various industries. Their commitment to quality and technological advancement positions them as a trusted partner in industrial automation and control.
Product Specifications
| Parameter | Details |
|---|---|
| Module Type | Remote Input/Output Expansion Unit |
| Part Number | 5716075-K |
| Weight | 2.9 kg |
| Dimensions (W x H x D) | 94.5 mm x 180 mm x 216 mm |
| Digital Inputs (DI) | 20 channels |
| Input Voltage | 24 V DC |
| Digital Outputs (DO) | 12 channels |
| Output Current Range | 0.1–3 A (depending on load) |
| Connectors | 4-position plug (2664197-4), 2-position plug (2664193-2), 8-position plug (2664193-8) |
| Mounting Type | DIN Rail Mountable |
Recommended Related Models
| Model | I/O Capacity | Power Supply | Weight | Dimensions (W x H x D) |
|---|---|---|---|---|
| ABB DSDX 452 | 24 DI / 16 DO | 24 V DC | 3.1 kg | 100 mm x 185 mm x 220 mm |
| ABB DSDX 453 | 32 DI / 24 DO | 24 V DC | 3.5 kg | 110 mm x 190 mm x 230 mm |
| ABB DSDX 454 | 16 DI / 8 DO / 8 AI | 24 V DC | 3.0 kg | 95 mm x 175 mm x 215 mm |
| ABB DSDX 455 | 8 DI / 8 DO / 8 AI / 8 AO | 24 V DC | 3.2 kg | 105 mm x 180 mm x 225 mm |
| ABB DSDX 456 | 16 DI / 16 DO / 4 AI / 4 AO | 24 V DC | 3.4 kg | 100 mm x 185 mm x 220 mm |
Top 5 Popular ABB Models
| Model | I/O Capacity | Power Supply | Weight | Dimensions (W x H x D) |
|---|---|---|---|---|
| ABB AC500 PM573-ETH | CPU with integrated Ethernet | 24 V DC | 1.2 kg | 70 mm x 150 mm x 130 mm |
| ABB AC500 PM583-ETH | High-performance CPU with Ethernet | 24 V DC | 1.3 kg | 80 mm x 160 mm x 140 mm |
| ABB CI854A | PROFIBUS DP Master Module | 24 V DC | 0.5 kg | 30 mm x 130 mm x 120 mm |
| ABB CI853 | PROFINET IO Controller Module | 24 V DC | 0.6 kg | 35 mm x 135 mm x 125 mm |
| ABB CM579-ETHCAT | EtherCAT Coupler Module | 24 V DC | 0.7 kg | 40 mm x 140 mm x 130 mm |
Frequently Asked Questions (FAQ)
Q1: What is the ABB DSDX 451 5716075-K used for?
A1: The ABB DSDX 451 is a digital input/output module designed to provide seamless integration of field-level devices with ABB’s automation systems. It handles digital signal processing for applications where precision, reliability, and scalability are critical.
Q2: What types of digital signals does the module support?
A2: The DSDX 451 supports standard 24 V DC digital input and output signals. It is capable of handling a variety of discrete devices such as switches, sensors, indicators, and relay-driven actuators.
Q3: Which ABB systems is the DSDX 451 compatible with?
A3: It is primarily compatible with ABB Symphony and Advant series DCS platforms, as well as other control systems that use DS-series I/O components.
Q4: Can the module operate under harsh industrial environments?
A4: Yes, it is built with industrial-grade components and has a robust design capable of operating in demanding conditions including elevated temperatures, vibrations, and electromagnetic interference.
Q5: How is the DSDX 451 mounted?
A5: The module is DIN rail mountable, offering easy installation within control panels and electrical cabinets. Its form factor allows for dense packing of modules without compromising accessibility.
Q6: What are the key physical specifications of the module?
A6: The module has dimensions of 216 x 180 x 94.5 mm and weighs approximately 2.9 kg. Its compact and durable housing is designed for industrial use.
Q7: Does it support hot-swapping?
A7: No, the DSDX 451 does not support hot-swapping. It should be installed or removed only when the system is powered down to avoid damage and ensure operator safety.
Q8: What wiring method is used for input/output connections?
A8: It uses plug-in terminal blocks with multi-position connectors, allowing fast and reliable wiring of digital I/O points without complex tooling.
Q9: Is the module software-configurable?
A9: Yes, the DSDX 451 can be configured via ABB’s automation engineering tools. Parameters such as input filtering, output behavior, and diagnostics are adjustable through system software.
Q10: What kind of diagnostic features does it include?
A10: The module provides LED indicators for input/output channel status and internal diagnostics. Fault conditions are flagged directly to the control system for proactive maintenance.
