ABB P13AC8 1MRK002266-AAr03 Fiber Optic Ethernet Module Product Description The ABB P13AC8 1MRK002266-AAr03 Fiber Optic Ethernet Module is a high-performance communication device designed for industrial……

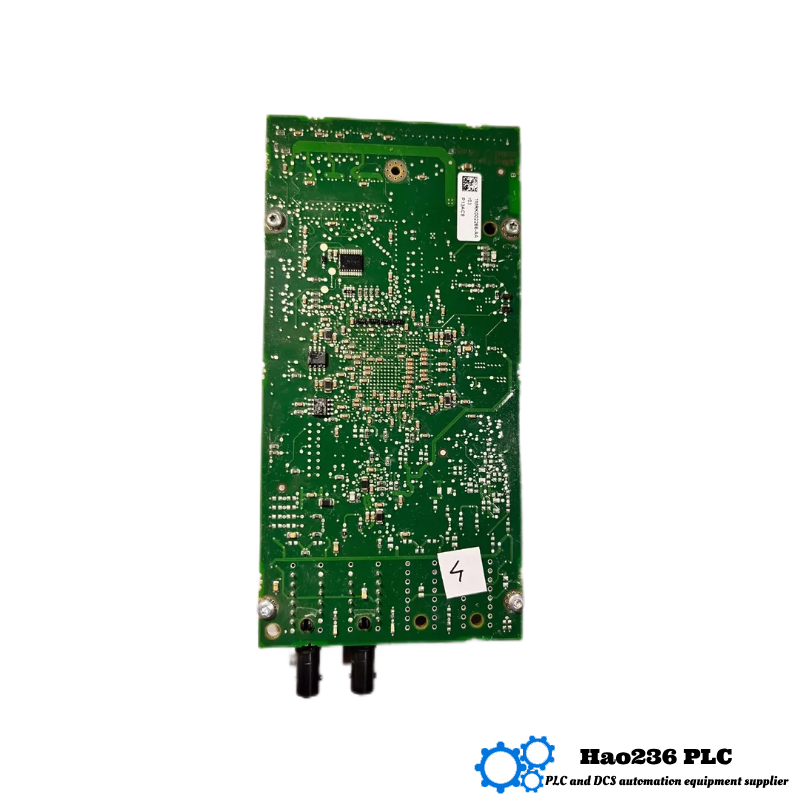

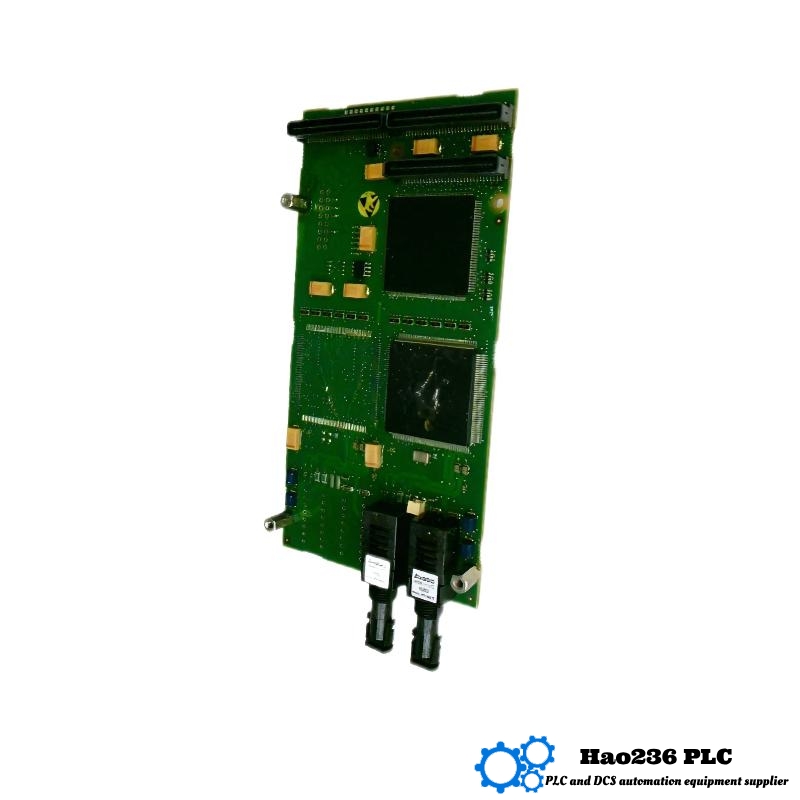

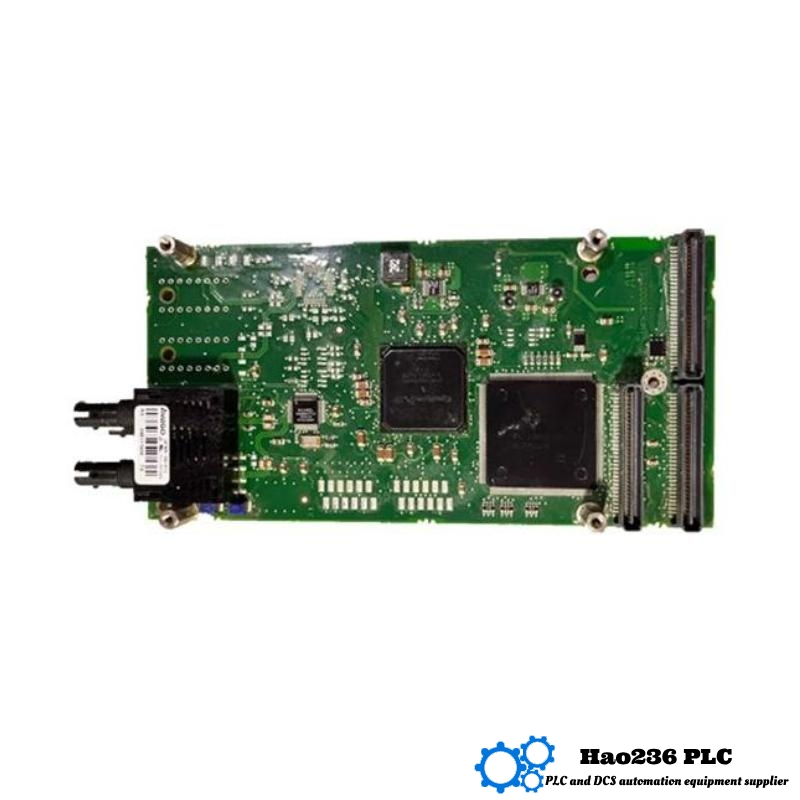

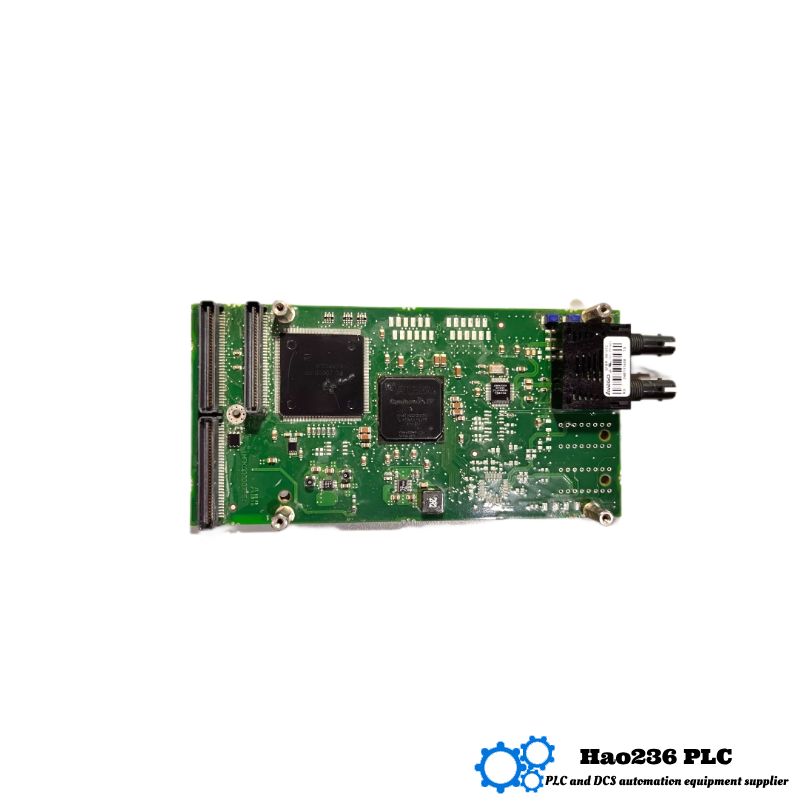

ABB P13AC8 1MRK002266-AAr03 Fiber Optic Ethernet Module

Manufacturer: ABB
Product Number: P13AC8
Product Type: Fiber Optic Ethernet Module
Origin: Switzerland
Dimensions: 230 x 130 x 30mm
Weight: 0.208kg
Order Number: 1MRK002266-AAr03
Shipping Port:Xiamen, China
Condition:New & In Stock
Payment Methods:T/T, PayPal, Western Union
Warranty:1 Year
Lead Time:1-3 Working Days
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:24-Hour Service
Certificate:COO
Views:22

Request Quote

Our advantage

ABB P13AC8 1MRK002266-AAr03 Fiber Optic Ethernet Module

Global Logistics

We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.

Brand new and original

Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.

24-hour service

We provide 7*24 hours service to our customers. We will be there whenever you need us.

Price advantage

All our products are priced very favorably because we have our own warehouse and supply.

Company Information
E-mail		sales@xm-automation.com
Mobile		+8613620394314
Whatsapp		+8613620394314
WeChat		13620394314
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

ABB P13AC8 1MRK002266-AAr03 Fiber Optic Ethernet Module

Product Description

The ABB P13AC8 1MRK002266-AAr03 Fiber Optic Ethernet Module is a high-performance communication device designed for industrial automation networks. This module utilizes fiber optic technology to enable fast, reliable, and long-distance data transmission, making it an ideal solution for demanding industrial environments. Its robust design ensures stable and secure data exchange, even in areas with high electromagnetic interference.

The module is designed to seamlessly integrate into ABB’s automation and control systems, offering high-speed Ethernet communication over fiber optic cables. With its compact size and easy installation, it ensures high reliability and operational efficiency in various industries, including energy, manufacturing, and process control.

Product Parameters

Parameter	Value
Dimensions	230 x 130 x 30 mm
Weight	0.208 kg
Communication Protocol	Ethernet over Fiber Optics
Network Speed	10/100/1000 Mbps
Transmission Distance	Up to 10 km (depending on fiber type)
Fiber Type	Single-mode/Multimode
Operating Temperature	-20°C to +60°C
Power Supply	24V DC (±20%)
Mounting Type	DIN Rail Mount
Environmental Rating	IP20

Applications

The ABB P13AC8 1MRK002266-AAr03 module is used in a variety of industrial applications that require reliable, high-speed communication over long distances. Key application areas include:

Industrial Automation: Connecting various automation devices, including programmable logic controllers (PLCs), sensors, and actuators, for seamless communication.
Energy and Power Plants: Ensuring stable data transfer in large-scale energy operations, including power plants, oil & gas, and renewable energy systems.
Factory Automation: Facilitating fast and reliable communication between machines in automated production lines.
Remote Communication: Extending network connectivity over long distances, ideal for monitoring remote sites or machinery.

Advantages

Long-Distance Transmission: Capable of transmitting data over long distances (up to 10 km), ideal for large industrial sites and plants.
High-Speed Ethernet Communication: Supports 10/100/1000 Mbps Ethernet speeds, ensuring fast data exchange for time-sensitive industrial processes.
Immunity to Electromagnetic Interference: The fiber optic technology makes this module immune to electrical noise and interference, ensuring reliable performance in noisy industrial environments.
Compact and Robust Design: With dimensions of 230 x 130 x 30 mm and a weight of only 0.208 kg, this module is designed for easy installation in space-constrained industrial control panels and enclosures.
Energy-Efficient: Low power consumption of 24V DC makes the module environmentally friendly and cost-effective.

Brand

ABB is a global leader in industrial automation and power technology. With a legacy of innovation, ABB provides advanced products and services designed to optimize productivity and sustainability across various industries, including energy, manufacturing, and utilities. The ABB brand is synonymous with cutting-edge technology, reliability, and efficiency.

Related Products (Same Series/Related Models)

Model	Description	Key Features
ABB 1MRK002267-AAr03	Enhanced Fiber Optic Ethernet Module	Increased transmission distance and redundancy
ABB 1MRK002268-AAr03	Dual-Port Fiber Optic Ethernet Interface	High availability with dual-port configuration
ABB 1MRK002269-AAr03	Compact Ethernet Module with Fiber Optic Support	Space-efficient design, ideal for small control systems
ABB 1MRK002270-AAr03	Industrial Ethernet Gateway with Fiber Optic Communication	Connects various industrial protocols over fiber
ABB 1MRK002271-AAr03	Modular Ethernet Fiber Optic Expansion Module	Scalable configuration for expanding network capabilities

Other Popular ABB Models

Model	Description	Key Features
ABB 1MRK002174-AAr00	Power Supply Module for Automation Systems	24V DC, robust for industrial applications
ABB 1MRK003211-AAr00	Digital I/O Module for Distributed Control Systems	High-density I/O, fault-tolerant design
ABB 1MRK002211-AAr00	Remote I/O Extension for Automation Systems	Extends I/O capabilities over a network
ABB 1MRK002142-AAr00	Control System Interface Module	Easy integration with ABB’s automation platforms
ABB 1MRK002307-AAr00	Communication Expansion Module	Expands network communication in automation systems

FAQ (Frequently Asked Questions)

Q1: What is the purpose of the ABB P13AC8 1MRK002266-AAr03 module?
A1: This module provides high-speed, reliable fiber optic communication for industrial automation systems, ensuring long-distance data transmission without interference.

Q2: How far can this module transmit data?
A2: The module supports transmission distances of up to 10 kilometers, depending on the fiber optic cable type used.

Q3: What are the power requirements for this module?
A3: The ABB P13AC8 1MRK002266-AAr03 operates on a 24V DC power supply with a tolerance of ±20%.

Q4: What types of fiber optics are supported?
A4: The module is compatible with both single-mode and multimode fiber optic cables.

Q5: Is this module suitable for outdoor use?
A5: No, the module is rated for indoor use with an IP20 environmental rating. Protection is needed for outdoor applications.

Q6: What is the weight of the ABB P13AC8 1MRK002266-AAr03 module?
A6: The module weighs 0.208 kg, making it lightweight and easy to integrate into existing systems.

Q7: How does this module compare to copper Ethernet solutions?
A7: Fiber optic Ethernet offers higher speeds, longer transmission distances, and immunity to electromagnetic interference, which copper cables cannot provide.

Q8: What industries can benefit from this module?
A8: Industries such as energy, manufacturing, oil & gas, and factory automation can leverage the ABB P13AC8 module for reliable communication over long distances.

Q9: Can I use this module with other ABB automation systems?
A9: Yes, the module is designed to integrate seamlessly with ABB’s broader range of automation and control systems.

Q10: What is the environmental temperature range for this module?
A10: The module can operate in temperatures ranging from -20°C to +60°C, making it suitable for a wide range of industrial environments.
