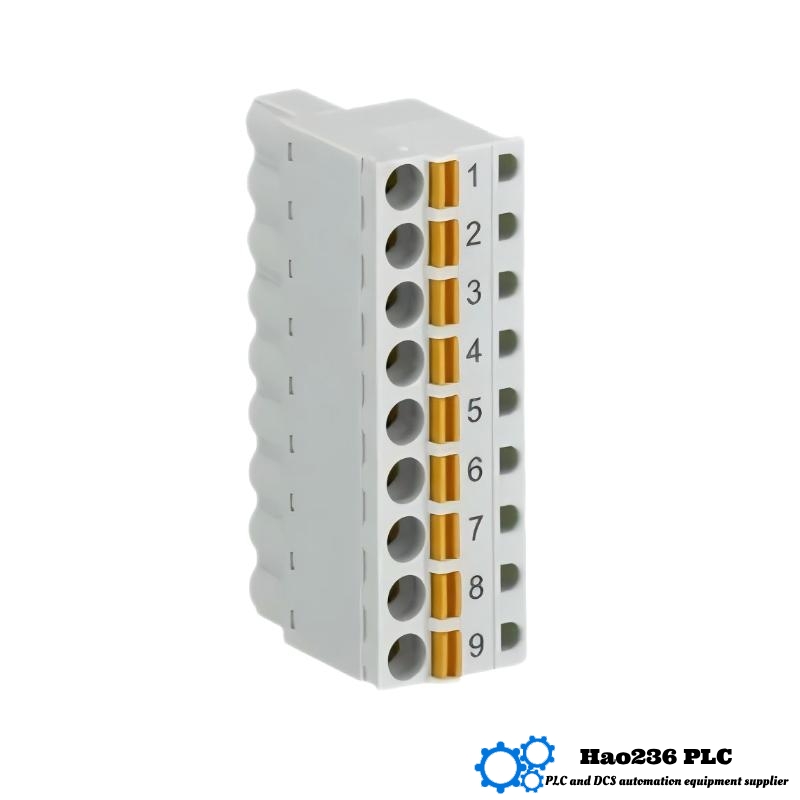

ABB TA565-9 1TNE968901R3105 Terminal Block
Product Overview
The ABB TA565-9 1TNE968901R3105 terminal block is a highly versatile and reliable connection solution for various industrial and automation applications. With its screw-type connection mechanism, this terminal block ensures a secure, long-lasting electrical connection, making it ideal for a wide range of control systems and power distribution setups.
Part of ABB’s extensive range of industrial components, the TA565-9 is designed for both flexibility and durability. It ensures maximum safety and performance for electrical wiring in control panels, power circuits, and automated systems. This terminal block is perfect for environments where space is limited, as it offers a compact design without compromising on performance.
Applications
The ABB TA565-9 terminal block is widely used in:
-
Industrial control panels: Facilitates easy and secure wiring for control systems.
-
Power distribution systems: Connects various electrical circuits in a safe and reliable manner.
-
Automation systems: Integral part of control systems, where multiple connections are required in a small footprint.
-
Building automation: Ideal for creating wiring networks in smart building control systems.
Advantages
-
Compact Design: The small form factor makes the ABB TA565-9 terminal block perfect for use in compact spaces.
-
Secure Connections: Equipped with screw terminals, this product ensures a tight, secure connection that is resistant to loosening over time.
-
Durability: Built with high-quality materials that ensure long-lasting performance in industrial environments.
-
Flexibility: The product’s versatility allows it to be used in a variety of control and automation applications.
-
Ease of Use: Its design makes it easy to install and manage, reducing installation time and enhancing overall efficiency.
Brand and Series
-
Brand: ABB
-
Type: Terminal Block for Power Distribution and Control Applications
Product Parameters
| Parameter | Details |
|---|---|
| Model | ABB TA565-9 1TNE968901R3105 |
| Type | Terminal Block |
| Dimensions (LxWxH) | 40 x 250 x 150 mm |
| Weight | 0.018 kg |
| Connection Type | Screw Terminal |
| Material | Flame-retardant plastic |
| Current Rating | 16A (maximum) |
| Voltage Rating | 500V AC/DC |
Related Models (Same Series or Similar)
| Model | Description | Dimensions (mm) | Weight | Key Features |
|---|---|---|---|---|
| ABB TA564-11 | 11-terminal connection block | 42 x 240 x 145 | 0.034 kg | Standard configuration, reliable mounting support, ideal for low current systems |
| ABB TA561-9 | 6-terminal terminal block | 40 x 220 x 130 | 0.025 kg | Compact and versatile, suitable for various control applications |
| ABB TA563-11 | Multi-purpose terminal block | 42 x 250 x 160 | 0.035 kg | Multiple configurations, high flexibility for control panel wiring |
| ABB TA570-9 | 12-terminal block with enhanced rating | 50 x 300 x 170 | 0.045 kg | High-performance model for heavy-duty industrial applications |
| ABB TA568-9 | Dual-level terminal block | 45 x 260 x 140 | 0.039 kg | Compact dual-level design for better space utilization in industrial setups |
Other Popular ABB Models
| Model | Description | Dimensions (mm) | Weight | Key Features |
|---|---|---|---|---|
| ABB TU810V1 | Compact I/O terminal unit | 110 x 147 x 40 | 0.14 kg | Modular design, supports AC 800M systems, ideal for remote input/output devices |
| ABB TB511-ETH | Communication terminal unit with Ethernet | 85 x 170 x 65 | 0.18 kg | Robust industrial communication, seamless data exchange with PLCs and other devices |
| ABB CP651 | Power distribution terminal block | 70 x 210 x 155 | 0.055 kg | High current capacity, efficient power routing within control panels |
| ABB SNK ZS4-SC | Feed-through terminal block, screw clamp type | 60 x 210 x 120 | 0.03 kg | Excellent electrical contact stability, versatile mounting options |
| ABB PR8100 | Modular relay terminal unit | 130 x 180 x 60 | 0.25 kg | Modular and expandable, ideal for controlling multiple devices |
FAQ – Frequently Asked Questions
Q1: What type of connection does the ABB TA565-9 terminal block use?
A1: The ABB TA565-9 uses a screw terminal connection type, providing a secure and stable electrical connection.
Q2: What is the maximum voltage rating for the ABB TA565-9?
A2: The ABB TA565-9 has a voltage rating of 500V AC/DC.
Q3: What is the current rating of the ABB TA565-9 terminal block?
A3: The maximum current rating for the ABB TA565-9 is 16A.
Q4: Can I use the ABB TA565-9 in low voltage systems?
A4: Yes, the ABB TA565-9 is designed for use in both low and medium voltage systems, with a voltage rating of up to 500V.
Q5: What are the dimensions of the ABB TA565-9 terminal block?
A5: The dimensions are 40 x 250 x 150 mm.
Q6: How is the ABB TA565-9 mounted?
A6: The ABB TA565-9 terminal block is designed for mounting on a standard DIN rail.
Q7: What material is used for the ABB TA565-9?
A7: The ABB TA565-9 is made from high-quality flame-retardant plastic for durability and safety.
Q8: How many terminals does the ABB TA565-9 terminal block have?
A8: The ABB TA565-9 has 9 terminals for multiple connection points.
Q9: What is the weight of the ABB TA565-9 terminal block?
A9: The ABB TA565-9 weighs 0.018 kg, making it lightweight and easy to handle.
Q10: Is the ABB TA565-9 suitable for use in high-temperature environments?
A10: Yes, the ABB TA565-9 is designed to operate in a wide range of temperatures, though users should refer to specific temperature ratings for each installation.
Secure Your Connections with ABB TA565-9
The ABB TA565-9 terminal block offers secure and reliable connections for all your industrial and automation wiring needs. Trust ABB for safety, performance, and efficiency.
Compact and Powerful: ABB TA565-9
With its compact design and secure screw connections, the ABB TA565-9 is the perfect choice for industrial control systems. Maximize space and performance with ABB.
Efficient Power Distribution with ABB TA565-9
ABB’s TA565-9 terminal block ensures smooth, safe power distribution in your control panels. A high-quality solution for both high and low-voltage systems.
Your Ultimate Wiring Solution: ABB TA565-9
Get the ABB TA565-9 terminal block for your next project. Featuring easy installation and long-lasting durability, it’s the reliable choice for all your industrial electrical needs.
