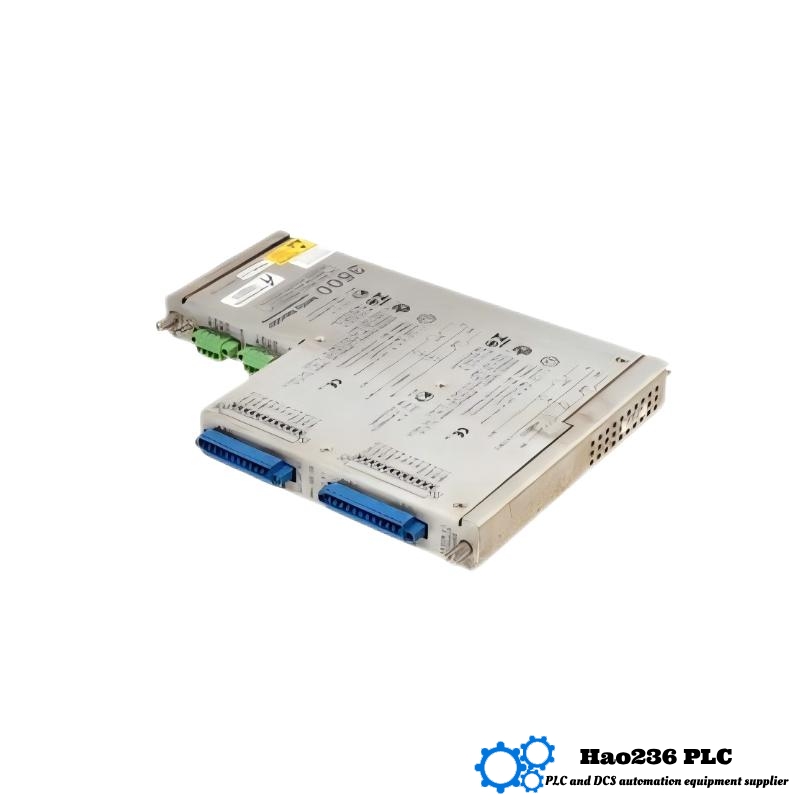

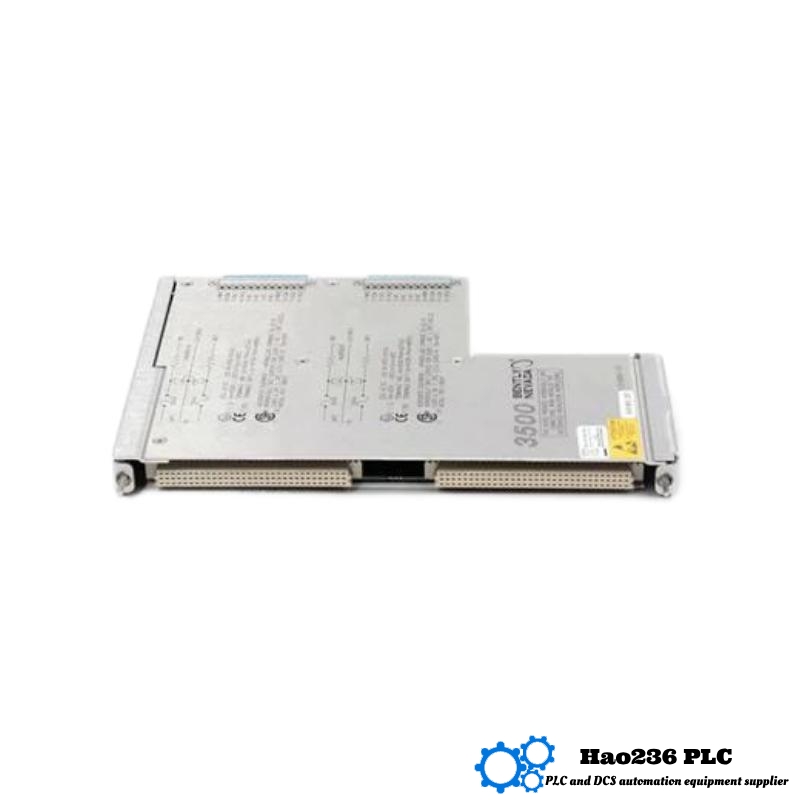

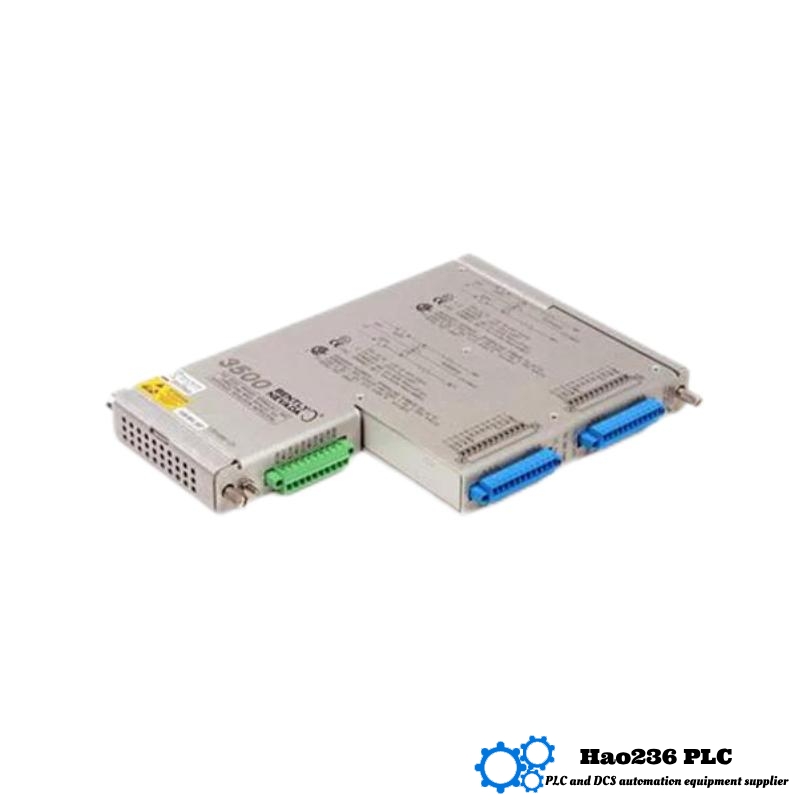

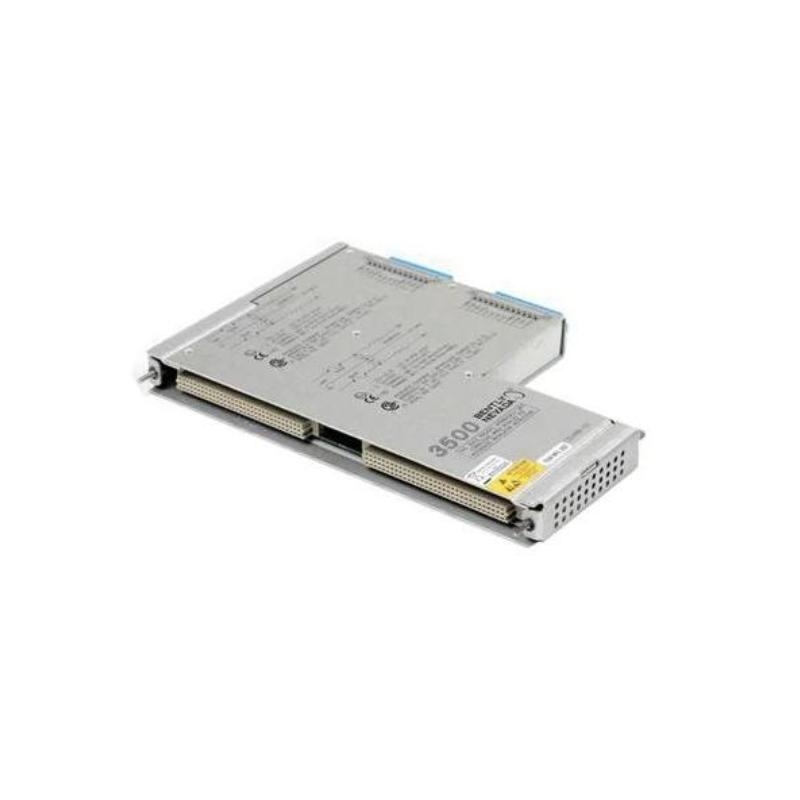

Bentley Nevada 3500/25 135473-01 Keyphasor I/O Module
Product Overview:
The Bentley Nevada 3500/25 135473-01 Keyphasor I/O Module is a critical component within the Bentley Nevada 3500 Series, designed for precise vibration monitoring and condition monitoring systems. It serves as a high-performance interface for connecting various Keyphasor sensors to the condition monitoring system. The Keyphasor I/O module is primarily used to provide synchronization signals for rotating equipment, ensuring that the system receives accurate and real-time data for diagnostics, fault detection, and predictive maintenance.
The module allows for easy integration into larger monitoring systems, offering flexibility, scalability, and superior performance in harsh industrial environments. With its compact design and advanced features, the 3500/25 is ideal for ensuring the health and efficiency of rotating machinery, such as motors, compressors, turbines, and pumps.
Product Features:
-
Keyphasor Signal Interface: The module provides an interface for connecting Keyphasor sensors to the monitoring system, facilitating accurate synchronization of rotating machinery for vibration analysis.
-
High-Resolution Data Acquisition: Provides high-resolution signals for condition monitoring and fault detection, enhancing the system’s ability to detect even minor anomalies.
-
Compact Design: The 3500/25 module is designed to fit into tight spaces, offering a small footprint of 241.3 x 24.4 x 103.1 mm and weighing just 0.46 kg, making it ideal for integration into existing systems.
-
Scalable System: The module can be integrated into larger condition monitoring systems, allowing for future scalability as monitoring needs grow.
-
Real-Time Data Synchronization: Ensures precise synchronization of machine data, enabling accurate diagnostic analysis and facilitating predictive maintenance strategies.
-
Robust Construction: Built to withstand harsh industrial environments with a focus on durability, reliability, and continuous performance.
Product Applications:
-
Condition Monitoring Systems: Used in vibration monitoring systems for rotating equipment, such as motors, turbines, and compressors.
-
Rotating Machinery Synchronization: Ideal for applications requiring precise synchronization of machinery data, ensuring accurate measurements of machine health.
-
Industrial Monitoring Systems: Perfect for industries such as power generation, oil & gas, and manufacturing, where continuous machine performance monitoring is crucial.
-
Predictive Maintenance (PdM): Essential for systems that rely on predictive maintenance by providing the synchronization needed for vibration analysis and anomaly detection.
Product Advantages:
-
Accurate and Reliable Signal Processing: The Keyphasor I/O module ensures accurate synchronization of sensors with the monitoring system, allowing for detailed fault analysis and predictive maintenance.
-
Compact and Lightweight: The small size and light weight (0.46 kg) of the module allow for easy installation and minimal impact on available space in control panels and machinery.
-
Scalability: The module can be integrated with other Bentley Nevada products to build a complete, scalable monitoring system tailored to specific needs.
-
Real-Time Performance Monitoring: Enables real-time synchronization of data, which is critical for ensuring optimal machine performance and preventing unscheduled downtimes.
-
Industrial-Grade Durability: Built to withstand harsh industrial environments, the 3500/25 module provides reliable performance even in extreme conditions.
Brand Information:
-
Brand: Bentley Nevada is a leading brand within Baker Hughes, specializing in industrial condition monitoring, diagnostic, and predictive maintenance solutions. Known for its reliability and innovative technologies, Bentley Nevada provides solutions that enhance machine health and operational efficiency.
-
Series: The Bentley Nevada 3500 series is a range of high-performance vibration and condition monitoring systems, offering critical data acquisition and diagnostic capabilities for rotating machinery.
Product Parameters:
| Parameter | Value |
|---|---|
| Model | 3500/25 135473-01 Keyphasor I/O Module |
| Type | Keyphasor I/O Module |
| Dimensions | 241.3 x 24.4 x 103.1 mm |
| Weight | 0.46 kg |
| Power Supply | 24V DC |
| Signal Input | Keyphasor sensor input |
| Signal Output | Digital signal output |
| Mounting Type | DIN rail or panel mount |
| Operating Temperature | -20°C to +60°C |
| Environmental Rating | IP20 (dust protection) |
| Certification | CE, UL, RoHS, ATEX |
| Input Channels | 1 Keyphasor input channel |
| Output Type | Digital signal processing |
| Interface Type | 24V DC I/O interface |
| System Compatibility | Compatible with Bentley Nevada 3500 series systems |
Related Models within the Bentley Nevada 3500 Series:
| Model | Features | Weight | Dimensions |
|---|---|---|---|
| 3500/11 135471-01 | Vibration monitoring module with advanced diagnostics | 0.8 kg | 241 x 50 x 100 mm |
| 3500/32 135472-01 | Analog output module for vibration monitoring | 0.9 kg | 250 x 60 x 110 mm |
| 3500/22 135475-01 | Machinery protection system | 1.2 kg | 245 x 55 x 105 mm |
| 3500/61 135473-01 | Digital data acquisition module | 1.0 kg | 242 x 52 x 105 mm |
| 3500/72 135478-01 | Gas turbine monitoring module | 0.85 kg | 240 x 60 x 110 mm |
| 3500/34 135474-01 | Vibration monitoring system with real-time analysis | 1.1 kg | 250 x 60 x 115 mm |
Popular Models from Bentley Nevada:
| Model | Features | Weight | Dimensions |
|---|---|---|---|
| 3500/25 135473-02 | Keyphasor I/O module with enhanced resolution | 0.46 kg | 241 x 24.4 x 103 mm |
| 3500/30 135470-01 | Vibration transmitter module with remote monitoring | 0.7 kg | 245 x 50 x 120 mm |
| 3500/22 135476-01 | Power monitoring and protection system | 1.0 kg | 240 x 60 x 115 mm |
| 3500/32 135470-02 | Analog vibration module with real-time diagnostics | 0.8 kg | 250 x 55 x 110 mm |
| 3500/15 135477-01 | Temperature and pressure monitoring module | 1.1 kg | 235 x 55 x 105 mm |
| 3500/62 135479-01 | Vibration sensor and monitoring hub | 1.0 kg | 242 x 60 x 115 mm |
FAQ (Frequently Asked Questions):
-
Q: What is the purpose of the Bentley Nevada 3500/25 Keyphasor I/O Module?
A: It is used to interface Keyphasor sensors with the monitoring system, providing synchronization for rotating equipment. -
Q: What is the weight of the 3500/25 module?
A: The 3500/25 weighs 0.46 kg. -
Q: What are the dimensions of the 3500/25 Keyphasor I/O module?
A: Its dimensions are 241.3 x 24.4 x 103.1 mm. -
Q: What type of input signal does the module accept?
A: The module accepts Keyphasor sensor input. -
Q: Can the 3500/25 module be used with other Bentley Nevada systems?
A: Yes, it is compatible with the Bentley Nevada 3500 series systems. -
Q: What is the power supply requirement for the 3500/25?
A: The module requires a 24V DC power supply. -
Q: How is the 3500/25 module mounted?
A: It can be mounted on a DIN rail or directly onto a panel. -
Q: What is the temperature range for the 3500/25 module?
A: It operates in temperatures ranging from -20°C to +60°C. -
Q: Is the 3500/25 module suitable for use in hazardous environments?
A: Yes, the module is certified for use in hazardous environments with CE, UL, and ATEX certifications. -
Q: Does the module have any environmental protection ratings?
A: Yes, it has an IP20 rating for dust protection.
