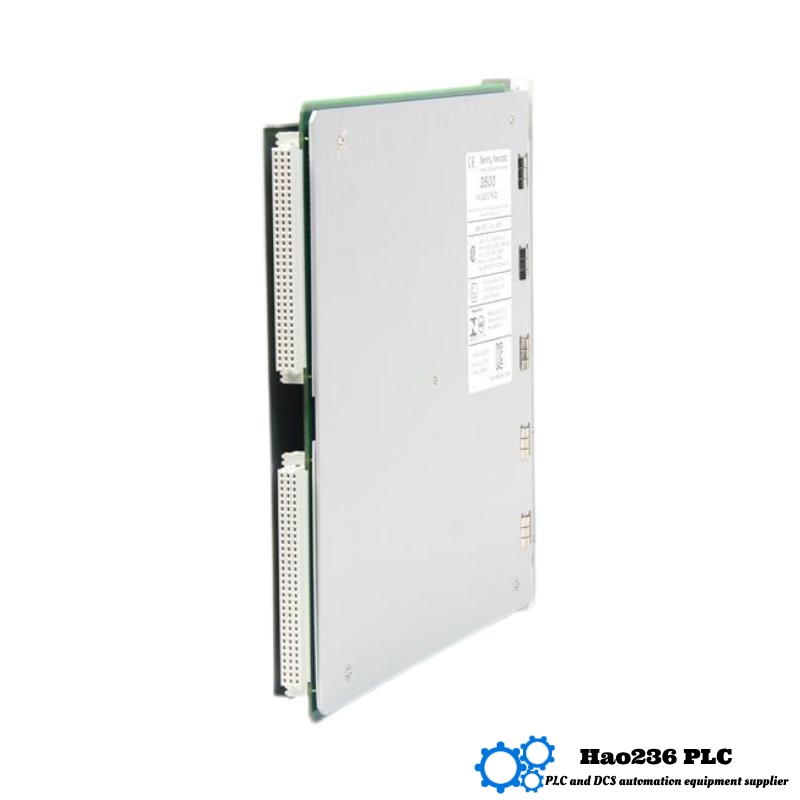

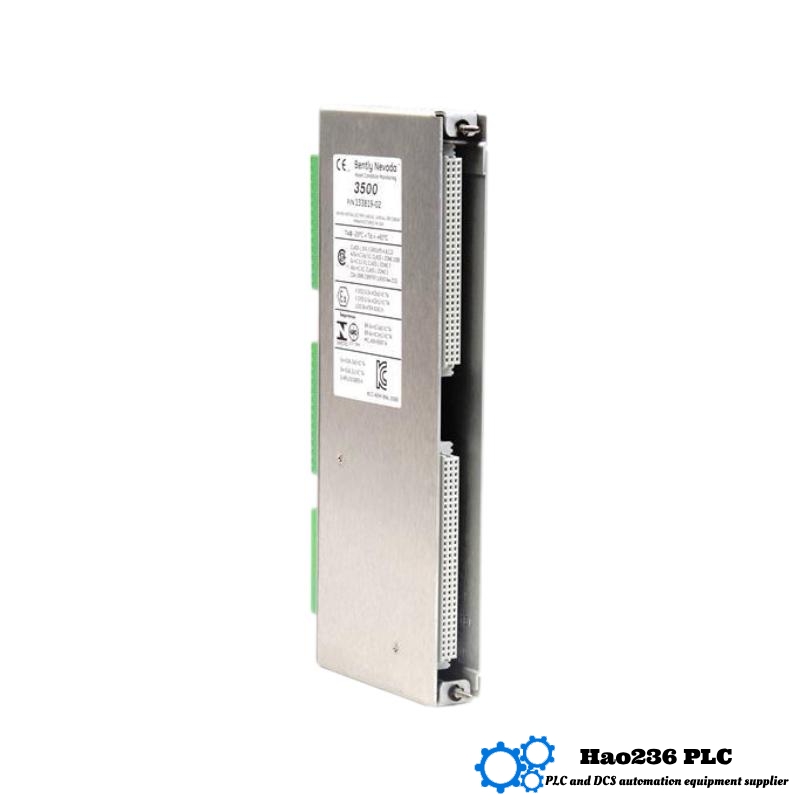

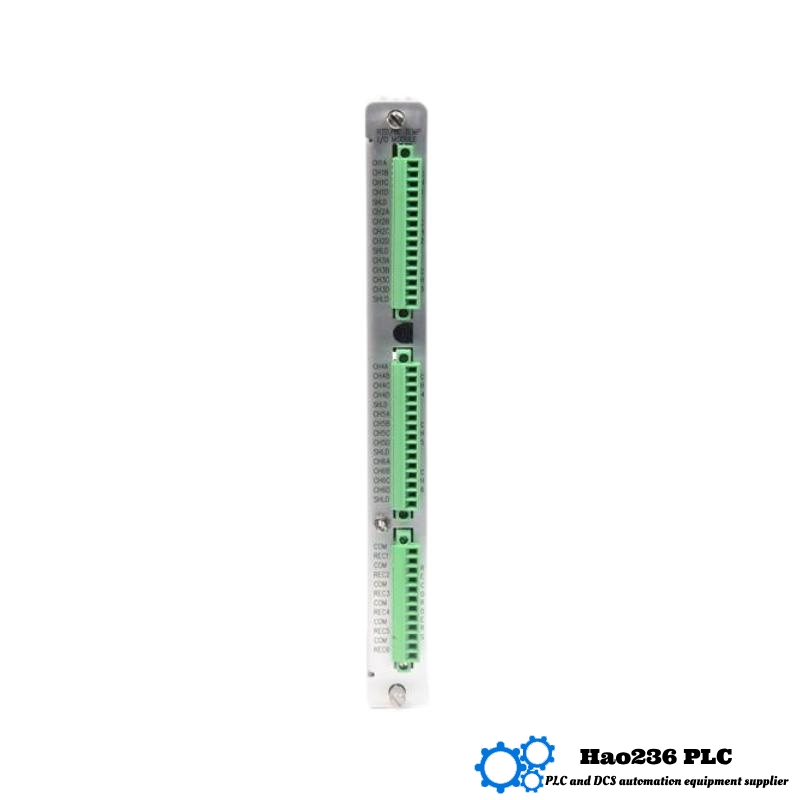

Bently Nevada 3500/61-01-00 133819-02 RTD/TC Non-Isolated I/O Module
Product Introduction
The Bently Nevada 3500/61-01-00 133819-02 is a Non-Isolated RTD/TC I/O Module designed to provide seamless temperature monitoring for critical machinery. This module accepts both RTD (Resistance Temperature Detector) and Thermocouple (TC) inputs, delivering precise temperature measurements essential for equipment health monitoring. Unlike isolated versions, this module directly interfaces with the machinery’s control system, making it ideal for applications where isolation is not a priority, yet accuracy and reliability are still crucial.
This module is a part of the Bently Nevada 3500 series and is engineered for industrial environments requiring temperature monitoring across a range of applications, such as power generation, oil and gas, and manufacturing sectors. Its robust construction and high-performance standards make it a trusted choice for integrated temperature measurement and control systems.
Product Applications
The 3500/61-01-00 RTD/TC Non-Isolated I/O Module is utilized in various industrial applications where direct temperature measurements are essential. Some typical applications include:
-
Power Plants: For monitoring the temperatures of turbines, generators, and other machinery, preventing overheating and ensuring optimal operational efficiency.
-
Oil and Gas: Used in compressors, pumps, and pipeline systems to measure temperature and avoid equipment failures.
-
Manufacturing Plants: Ensures production line machinery operates within the required temperature parameters to avoid costly breakdowns.
-
Chemical Processing: Monitors the temperature of reactors and process equipment to ensure safe operation and prevent thermal-related failures.
The module’s flexibility with both RTD and TC inputs makes it highly adaptable to various industries requiring precise temperature monitoring in their machinery.
Product Advantages
-
Dual Input Capability: The module supports both RTD and Thermocouple inputs, offering versatility in monitoring temperature from a wide range of sensors.
-
Cost-Effective: As a non-isolated module, it provides an economical solution for temperature measurement where isolation is not critical.
-
Compact Design: With its slim profile, it is designed to fit into space-constrained areas, making it suitable for modern industrial systems.
-
Easy Integration: The module integrates effortlessly with the Bently Nevada 3500 series machinery protection system.
-
High Reliability: Built to withstand harsh environments, the 3500/61-01-00 ensures long-term stability and reliable performance.
-
Flexible Application: Whether used in critical power generation equipment or manufacturing processes, this module ensures effective and precise temperature monitoring.
Brand Information
Bently Nevada, a division of Baker Hughes, is known for its advanced machinery condition monitoring solutions. Its 3500 Series products are globally recognized for their durability, precision, and ability to monitor the health of rotating machinery in challenging industrial environments. Bently Nevada’s systems are designed to detect anomalies early, thus preventing expensive downtime and potential equipment failures.
Product Series
The 3500 Series by Bently Nevada is an extensive suite of modules that provide machinery protection, monitoring, and diagnostics. The 3500 series offers solutions for vibration, temperature, pressure, speed, and other key parameters critical to the health of industrial machinery. The 3500/61-01-00 Non-Isolated RTD/TC I/O Module is a key component for temperature monitoring within this series, providing real-time data to help optimize machinery performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions (W x H x D) | 241.3 x 24.4 x 99.1 mm |
| Weight | 0.45 kg |
| Input Type | RTD (Resistance Temperature Detector), Thermocouple (TC) |
| Channels Supported | 8 Inputs (RTD/TC) |
| Power Supply | 24 VDC (Nominal) |
| Signal Isolation | No |
| Operating Temperature | -40°C to 85°C |
| Output | Integrated with 3500 Series System |
| Certifications | CE, UL, CSA (depending on model) |
Related or Similar Models
| Model | Description | Specifications |
|---|---|---|
| 3500/60-01-00 | RTD/TC Isolation I/O Module | 241.3 x 24.4 x 99.1 mm, 0.45 kg |
| 3500/61-01-01 | RTD/TC Non-Isolated I/O Module | 241.3 x 24.4 x 99.1 mm, 0.45 kg |
| 3500/60-02-00 | TC Isolation I/O Module | 241.3 x 24.4 x 99.1 mm, 0.45 kg |
| 3500/60-03-00 | TC Isolation I/O Module | 241.3 x 24.4 x 99.1 mm, 0.45 kg |
| 3500/42-01-00 | Analog Input Isolation Module | 241.3 x 24.4 x 99.1 mm, 0.45 kg |
Other Popular Models from Bently Nevada
| Model | Description | Specifications |
|---|---|---|
| 3500/20-01-00 | Vibration Monitoring Module | 241.3 x 24.4 x 241.8 mm, 0.91 kg |
| 3500/72-01-00 | Shaft Speed Monitoring Module | 241.3 x 24.4 x 241.8 mm, 0.91 kg |
| 3500/44-01-00 | Power Supply Module | 241.3 x 24.4 x 241.8 mm, 0.91 kg |
| 3500/53-01-00 | Pressure/Temperature Monitoring Module | 241.3 x 24.4 x 241.8 mm, 0.91 kg |
| 3500/72-02-00 | Speed Sensor Interface Module | 241.3 x 24.4 x 241.8 mm, 0.91 kg |
FAQ (Frequently Asked Questions)
Q1: What is the function of the 3500/61-01-00 module?
A1: The 3500/61-01-00 is a non-isolated I/O module designed to accept RTD and Thermocouple inputs for precise temperature measurement in machinery.
Q2: How many channels does the module support?
A2: The module supports up to 8 inputs (either RTD or TC) for temperature monitoring.
Q3: Does the module provide isolation for the inputs?
A3: No, the module does not offer isolation, making it suitable for environments where isolation is not required.
Q4: What power supply is required for this module?
A4: The module requires a nominal 24 VDC power supply.
Q5: Can this module be used for both RTD and Thermocouple sensors?
A5: Yes, the 3500/61-01-00 module supports both RTD and Thermocouple inputs for flexible temperature monitoring.
Q6: What is the operating temperature range for this module?
A6: The module operates within a temperature range of -40°C to 85°C.
Q7: Is the module suitable for use in hazardous environments?
A7: Yes, depending on the model, the module may have certifications such as CE, UL, and CSA, ensuring safe use in hazardous environments.
Q8: How does this module integrate with the Bently Nevada 3500 series?
A8: The module integrates seamlessly with the Bently Nevada 3500 system for continuous temperature monitoring and data collection.
Q9: What industries are best suited for this module?
A9: This module is ideal for industries such as power generation, oil and gas, manufacturing, and chemical processing, where accurate temperature monitoring is critical.
Q10: What is the weight of the module?
A10: The module weighs 0.45 kg.
