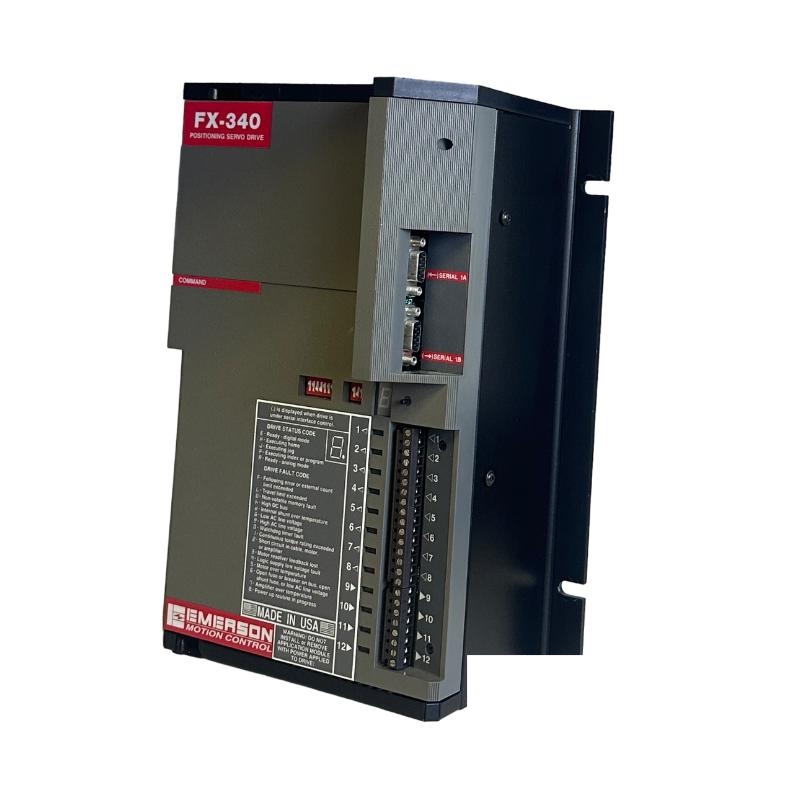

Emerson FX-340 Servo Drive
Product Introduction
The Emerson FX-340 is a state-of-the-art servo drive designed for precision motion control in various industrial applications. This drive is specifically engineered to work seamlessly with Emerson’s DeltaV automation systems, offering reliable performance and high efficiency. The FX-340 is ideal for controlling servo motors in environments where high precision and reliability are critical. With advanced features such as precise torque, speed, and position control, the FX-340 is engineered to meet the demands of modern automation systems across a range of industries.
As part of the DeltaV series, the FX-340 integrates into larger automation and control systems, providing superior ease of integration and functionality. It is known for its compact design, robust performance, and compatibility with a wide range of servo motors, making it a versatile solution for motion control.
Product Specifications
The table below presents the detailed specifications of the Emerson FX-340 Servo Drive:
| Parameter | Specification |
|---|---|
| Model | FX-340 |
| Series | DeltaV |
| Dimensions (W x H x D) | 345.7 x 240 x 151 mm |
| Weight | 4.54 kg |
| Rated Input Voltage | 200V – 480V AC |
| Rated Output Power | 2.5 kW – 7.5 kW |
| Rated Output Current | 15A |
| Control Method | Position, Velocity, Torque |
| Motor Types Supported | Synchronous, Asynchronous |
| Cooling Type | Forced air |
| Communication Interface | EtherCAT, CANopen |
| Operating Temperature Range | -10°C to 40°C |
| Storage Temperature Range | -20°C to 70°C |
| Protection Features | Overload, Overcurrent, Overvoltage, Short Circuit |
| Regulatory Compliance | CE, UL, RoHS |
| Mounting Type | Wall-mounted, Rack-mounted |
| Feedback Devices Supported | Resolver, Encoder |
| Max Torque | 12 Nm |
| Control Loop Frequency | 1 kHz |
Applications
The FX-340 Servo Drive is designed for a wide variety of applications that demand precise control over motion systems. Some of the common applications include:
-
Robotics: The FX-340 offers highly accurate positioning and velocity control, making it perfect for controlling robotic arms, which are used in assembly, welding, painting, and pick-and-place operations.
-
CNC Machines: It is ideal for CNC (Computer Numerical Control) machinery, ensuring precise motor control for operations like milling, turning, and drilling, which require fine motor control to produce intricate parts.
-
Automated Assembly Lines: The servo drive is highly effective in automated assembly systems where motion precision is required for assembling components on a production line, reducing operational errors and increasing throughput.
-
Packaging Machines: The FX-340 is employed in packaging machines to control the speed and accuracy of machines in the packaging industry, ensuring consistency and reliability in high-speed applications.
-
Conveyor Systems: The drive is used to control the speed and positioning of conveyors in various industries, ensuring smooth, continuous operation with minimal downtime.
-
Material Handling: The FX-340 is used in material handling systems, where accurate positioning and speed control are essential for efficient transport and sorting of materials.
Advantages of FX-340 Servo Drive
-
High Precision and Accuracy: The FX-340 offers advanced control algorithms that deliver exceptional accuracy in both position and velocity, crucial for demanding applications such as robotics and CNC machines.
-
Energy Efficiency: This servo drive incorporates energy-saving technology, reducing overall energy consumption while maintaining high performance. This is essential for industries looking to reduce operational costs and improve sustainability.
-
Seamless Integration: The FX-340 is designed to integrate effortlessly with Emerson’s DeltaV automation system, ensuring smooth communication and synchronization with other components within the system.
-
Wide Compatibility: The FX-340 is compatible with a range of servo motors and feedback devices, making it a versatile solution that can be used in various industries and applications.
-
Robust Protection Features: Equipped with multiple protection features such as overload, overcurrent, and short-circuit protection, the FX-340 ensures that both the drive and connected systems remain safe and operational even under stressful conditions.
-
Compact Design: Despite its high performance, the FX-340 has a compact design that allows for easy installation in space-constrained environments, without sacrificing performance or features.
-
Flexible Communication: The drive supports multiple communication protocols, including EtherCAT and CANopen, allowing easy integration into a variety of automation systems.
Related Models in the DeltaV Series
Here are five related models in the DeltaV Series that could be of interest:
| Model | Rated Power | Communication Interface | Key Features |
|---|---|---|---|
| FX-345 | 3.0 kW | EtherCAT, CANopen | Enhanced energy efficiency, high-speed control |
| FX-350 | 7.5 kW | EtherCAT, Modbus, CANopen | High torque output, flexible control modes |
| FX-320 | 1.5 kW | EtherCAT, CANopen | Compact size, low energy consumption |
| FX-330 | 2.0 kW | EtherCAT, CANopen | Compact, easy integration, low noise |
| FX-360 | 10 kW | EtherCAT, Modbus, CANopen | High-performance, multiple protection features |
Popular Models from Emerson
Here are five popular servo drive models from Emerson that are well-known in the industry:
| Model | Rated Power | Rated Current | Communication | Key Features |
|---|---|---|---|---|
| AX-350 | 5 kW | 10 A | EtherCAT, CANopen | Advanced motion control, scalable |
| AX-300 | 3.5 kW | 8 A | EtherCAT, CANopen | Compact, reliable, cost-effective |
| DX-550 | 7.5 kW | 15 A | Modbus, CANopen | Superior overload capacity, low power consumption |
| DX-400 | 4 kW | 12 A | EtherCAT, CANopen | Flexible, robust protection features |
| MX-320 | 2 kW | 6 A | Modbus, CANopen | Space-saving, easy to use |
FAQs
-
Q: What is the input voltage range of the Emerson FX-340?
A: The FX-340 accepts an input voltage range of 200V to 480V AC. -
Q: Can the FX-340 drive different types of motors?
A: Yes, the FX-340 is compatible with synchronous and asynchronous motors. -
Q: What communication interfaces does the FX-340 support?
A: The FX-340 supports EtherCAT and CANopen communication protocols. -
Q: What is the cooling method used in the FX-340?
A: The FX-340 uses forced air cooling for efficient heat dissipation. -
Q: How does the FX-340 handle overload conditions?
A: The FX-340 has built-in protection features, including overload protection, to prevent damage during excessive load conditions. -
Q: What are the protection features of the FX-340?
A: The FX-340 provides protection against overload, overcurrent, overvoltage, and short-circuit conditions. -
Q: What are the supported motor feedback devices?
A: The FX-340 supports resolver and encoder feedback devices. -
Q: What is the maximum output current of the FX-340?
A: The maximum output current of the FX-340 is 15A. -
Q: What temperature range does the FX-340 operate in?
A: The operating temperature range of the FX-340 is from -10°C to 40°C. -
Q: How do I integrate the FX-340 into a DeltaV system?
A: The FX-340 is designed for seamless integration into DeltaV systems, using standard communication protocols like EtherCAT and CANopen.
