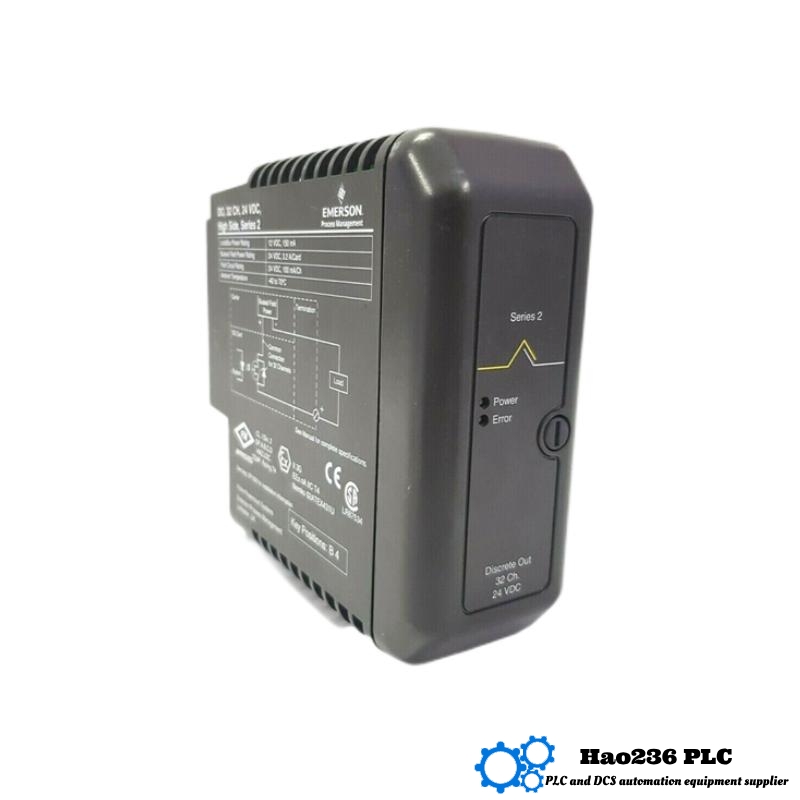

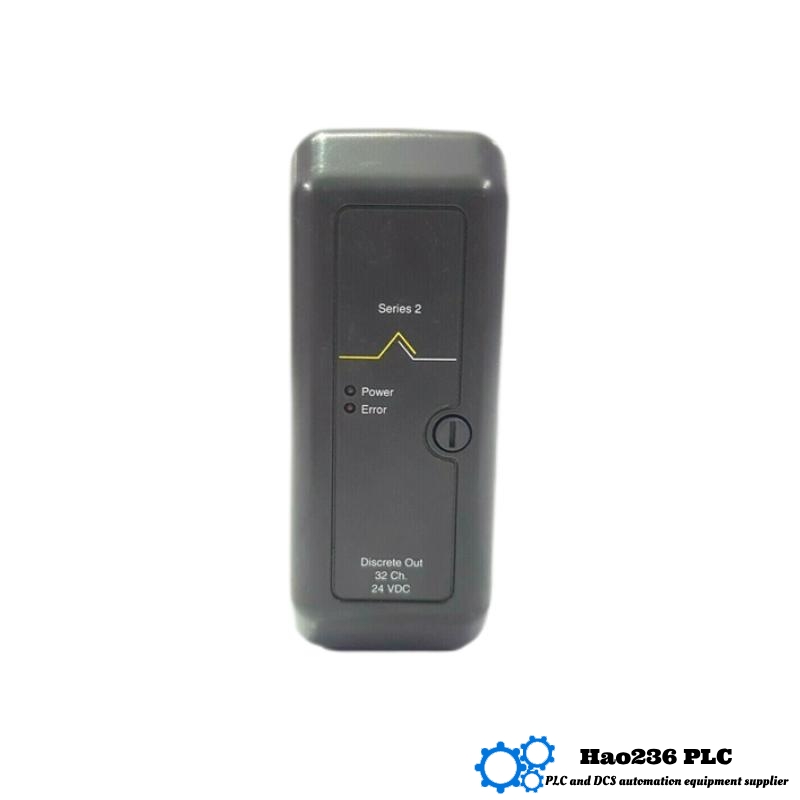

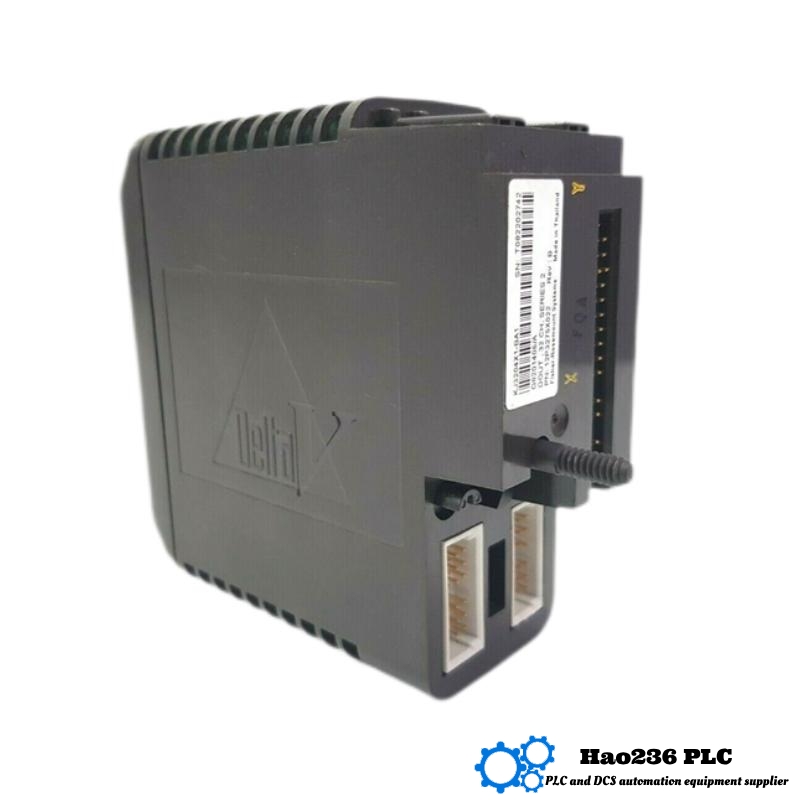

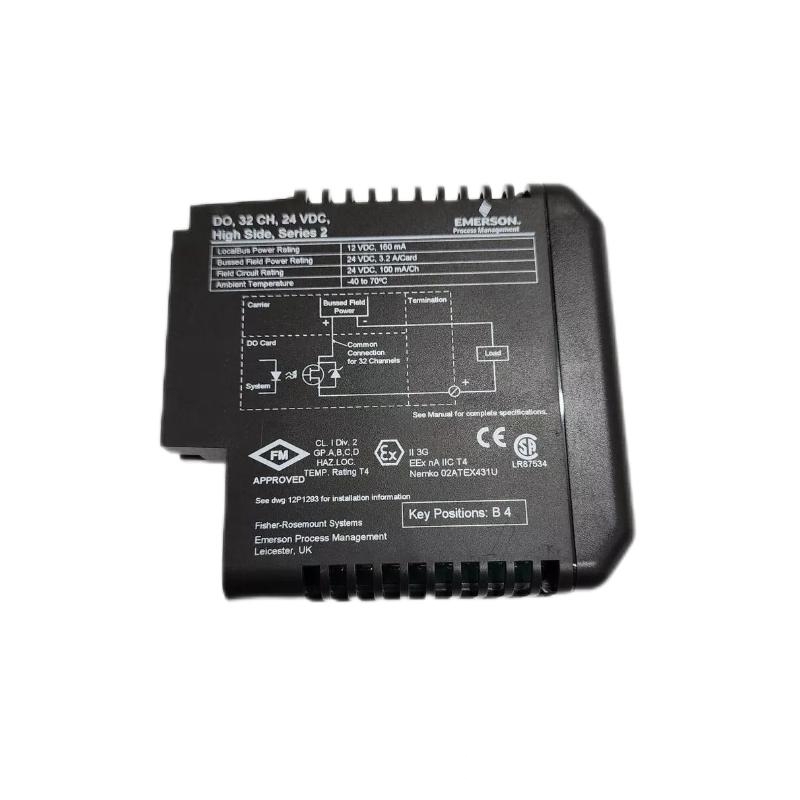

Emerson KJ3204X1-BA1 Discrete Output Module Card
Product Introduction
The Emerson KJ3204X1-BA1 is a highly reliable Discrete Output Module Card designed for use in the DeltaV process automation system. This module is part of the DeltaV™ series, which is renowned for its advanced features and integration capabilities. The KJ3204X1-BA1 provides four discrete outputs, making it ideal for controlling digital devices such as solenoids, valves, or other on/off control devices. The module supports high-speed control with isolated outputs, ensuring precise and efficient operation in demanding industrial environments.
With a compact form factor, the KJ3204X1-BA1 module measures 107 x 41 x 105 mm and weighs only 0.181 kg, making it easy to integrate into existing automation systems without occupying too much space. It is engineered to meet high standards of reliability and durability, offering flexibility and robustness in a variety of automation applications.
The DeltaV series, including the KJ3204X1-BA1, is known for its seamless integration with Emerson’s DeltaV controllers and the wider DeltaV automation ecosystem, ensuring a high degree of efficiency, accuracy, and ease of use for operators.
Product Applications
The KJ3204X1-BA1 Discrete Output Module is widely used in industries where digital on/off control is required. Some common applications include:
-
Solenoid Control: Ideal for controlling solenoids in process control systems.
-
Valve Control: Used in controlling valves that require on/off digital control in industrial processes.
-
Motor Control: Frequently used for on/off control of motors in process applications.
-
Signal Switching: Used in signal switching applications for industrial control systems.
-
Automation Systems: Perfect for general discrete output control within industrial automation systems, including oil & gas, pharmaceuticals, and manufacturing.
Product Advantages
-
High-Speed Control: The KJ3204X1-BA1 offers fast response times, ensuring high-speed on/off control of devices.
-
Compact Design: With dimensions of 107 x 41 x 105 mm and a weight of 0.181 kg, it is easy to install and integrate into space-constrained applications.
-
Isolated Outputs: The module provides isolated outputs to prevent electrical interference, enhancing system reliability and minimizing downtime.
-
Robust and Durable: Built to withstand the demands of industrial environments, the KJ3204X1-BA1 is designed for longevity and high operational reliability.
-
Seamless Integration with DeltaV Controllers: It works seamlessly with DeltaV controllers, allowing for easy integration into existing DeltaV control systems.
-
Flexible Usage: Suitable for various industrial automation and process control applications, making it versatile across different sectors.
Brand Information
Emerson is a global leader in automation technology and process control systems. With a long history of providing reliable, innovative products, Emerson’s DeltaV™ series is known for offering powerful solutions for process automation. Emerson is dedicated to advancing automation technology to improve productivity, safety, and operational efficiency. The DeltaV series, including the KJ3204X1-BA1 Discrete Output Module, provides critical control for industrial processes across various industries like oil & gas, pharmaceuticals, food and beverage, and chemical manufacturing.
Technical Parameters
| Parameter | Details |
|---|---|
| Model | KJ3204X1-BA1 |
| Type | Discrete Output Module |
| Number of Outputs | 4 Outputs |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.181 kg |
| Output Type | Discrete (On/Off) |
| Output Isolation | Yes (Isolated Outputs) |
| Power Supply | 24 V DC |
| Current per Output | 0.5 A per output (max) |
| Operating Temperature Range | -20°C to +60°C |
| Protection Class | IP20 |
| Integration | DeltaV Controller Integration |
Related Models (Same Series)
| Model | Type | Number of Outputs | Dimensions | Weight | Key Feature |
|---|---|---|---|---|---|
| KJ3204X1-BA2 | Discrete Output Module | 4 Outputs | 107 x 41 x 105 mm | 0.18 kg | Enhanced output isolation for sensitive applications |
| KJ3205X1-BA1 | Discrete Output Module | 5 Outputs | 107 x 41 x 105 mm | 0.20 kg | Increased output count for large systems |
| KJ3204X1-BA3 | Discrete Output Module | 4 Outputs | 107 x 41 x 105 mm | 0.182 kg | Higher voltage range for larger systems |
| KJ3210X1-BA1 | Discrete Output Module | 10 Outputs | 107 x 50 x 120 mm | 0.25 kg | Ideal for applications requiring higher output capacity |
| KJ3206X1-BA1 | Discrete Output Module | 6 Outputs | 107 x 41 x 105 mm | 0.19 kg | Suitable for medium-size control systems |
Popular Models (Same Brand)
| Model | Type | Number of Outputs | Dimensions | Weight | Key Feature |
|---|---|---|---|---|---|
| KJ3204X1-BA1 | Discrete Output Module | 4 Outputs | 107 x 41 x 105 mm | 0.181 kg | High-speed control for various industrial applications |
| KJ3202X1-BA1 | Analog Input Module | 4 Inputs | 107 x 41 x 105 mm | 0.175 kg | Ideal for measuring various industrial input signals |
| KJ3212X1-BA1 | Discrete Output Module | 12 Outputs | 115 x 45 x 115 mm | 0.28 kg | Perfect for complex automation systems with more control points |
| KJ3204X1-BA4 | Discrete Output Module | 4 Outputs | 107 x 41 x 105 mm | 0.180 kg | Designed for harsh environments with improved protection |
| KJ3215X1-BA1 | Analog Output Module | 15 Outputs | 107 x 45 x 120 mm | 0.25 kg | High output capacity for larger scale systems |
FAQ (Q&A Format)
Q1: What is the number of outputs on the KJ3204X1-BA1 module?
A1: The KJ3204X1-BA1 module has 4 discrete outputs, which are used for on/off control of devices like solenoids and valves.
Q2: What is the power supply requirement for the KJ3204X1-BA1 module?
A2: The module requires a 24 V DC power supply to operate.
Q3: How much does the KJ3204X1-BA1 module weigh?
A3: The module weighs 0.181 kg, making it lightweight and easy to integrate into your system.
Q4: What is the temperature range for the KJ3204X1-BA1 module?
A4: The operating temperature range for this module is -20°C to +60°C, suitable for various industrial environments.
Q5: Is the output of the KJ3204X1-BA1 isolated?
A5: Yes, the outputs on the KJ3204X1-BA1 module are isolated, which helps prevent electrical interference and ensures better system performance.
Q6: How does the KJ3204X1-BA1 integrate with DeltaV controllers?
A6: The KJ3204X1-BA1 module seamlessly integrates with DeltaV controllers, providing reliable and efficient control for process automation systems.
Q7: What industries can benefit from using the KJ3204X1-BA1?
A7: The module is ideal for use in industries such as oil & gas, pharmaceuticals, food processing, and chemical manufacturing, where on/off control is necessary.
Q8: What is the maximum current for each output?
A8: Each output on the KJ3204X1-BA1 can handle a maximum current of 0.5 A.
Q9: Can this module be used in hazardous environments?
A9: The KJ3204X1-BA1 has a protection class of IP20, which means it is suitable for general industrial environments but may not be suitable for hazardous locations without additional protection.
Q10: How is the KJ3204X1-BA1 module mounted?
A10: The module can be easily mounted within a DeltaV system, typically in a control panel or a system rack, ensuring easy access and maintenance.
