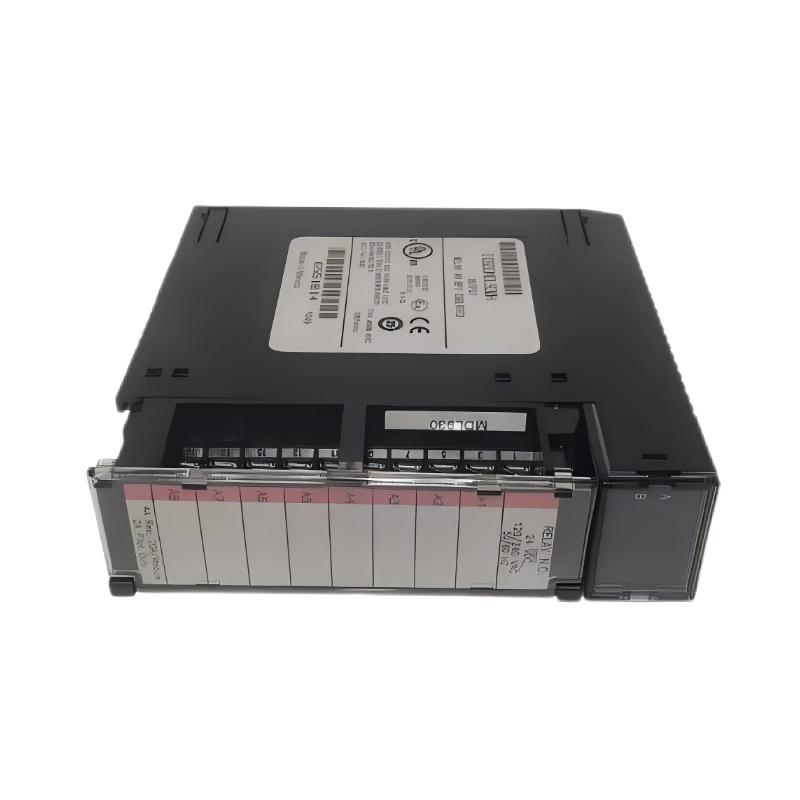

GE IC693MDL930H 4-Amp Isolated Relay Output Module
Product Introduction
The GE IC693MDL930H is an advanced 4-amp isolated relay output module designed for use within the GE Fanuc 90-30 PLC system. This module is built to provide four isolated relay outputs, each capable of handling a maximum load of 4 amps. The primary purpose of this module is to allow the control of high-voltage or high-current devices, such as motors, solenoids, and other industrial machinery, through a programmable logic controller (PLC).
The IC693MDL930H module is equipped with built-in isolation between the input and output circuits, ensuring protection against electrical noise and surges. This isolation helps protect both the control system and external devices from potential electrical damage, which is a common concern in industrial environments. This module is compact, easy to install, and offers a reliable solution for controlling external devices within automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IC693MDL930H |
| Function | Isolated relay output module |
| Dimensions | 89 x 107 x 188 mm |
| Weight | 0.45 kg |
| Number of Outputs | 4 |
| Maximum Output Current | 4 amps per output channel |
| Isolation | 1500V AC isolation between input and output circuits |
| Voltage Rating | 5-30 VDC |
| Relay Type | SPDT (Single Pole Double Throw) |
| Switching Voltage | 250 VAC max |
| Coil Voltage | 5V, 12V, 24V DC |
| Mounting | DIN rail mounting |
| Compatibility | GE Fanuc 90-30 PLC |
| Environmental Operating Conditions | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Status Indicators | LED indicators for output status |
Applications
The IC693MDL930H is designed for industrial environments where reliable control of high-current and high-voltage devices is required. Some typical applications include:
-
Motor Control: Used to switch motors in various industrial applications, including conveyors, pumps, and compressors.
-
Control of Solenoids and Valves: It can be used to control solenoids for pneumatic or hydraulic systems, making it ideal for automated manufacturing systems.
-
Industrial Automation: This module is perfect for controlling complex industrial machinery in automated production lines or assembly processes.
-
Signal Interlocking: Suitable for safety-critical applications where output states need to be interlocked for correct sequence operation.
-
Alarm Systems: It can activate sirens, lights, or other alarm systems in critical situations, ensuring that safety protocols are followed.
The IC693MDL930H provides reliable and secure control of external devices, offering peace of mind for industries that require precise, high-power switching capabilities.
Product Advantages
-
Isolated Relay Outputs: With 1500V AC isolation between input and output circuits, the IC693MDL930H ensures that the PLC system remains protected from electrical surges and faults.
-
High Current Handling: Each output channel can manage up to 4 amps of current, making it suitable for heavy-duty industrial applications.
-
Compact and Space-Saving Design: The module has a small footprint (89 x 107 x 188 mm) and weighs just 0.45 kg, making it ideal for applications where space is limited.
-
Reliable Performance: It is designed to operate efficiently in harsh industrial conditions, with a wide operating temperature range from 0°C to 60°C (32°F to 140°F).
-
LED Status Indicators: Each output channel is equipped with a built-in LED that displays real-time output status, simplifying troubleshooting and monitoring.
-
Easy Installation and Integration: The module is fully compatible with GE Fanuc 90-30 PLC systems, and it can be easily mounted on a DIN rail for straightforward installation.
-
Durable Construction: Built to withstand industrial environments, the module is made to endure continuous operation in manufacturing, chemical, and other demanding sectors.
Brand Information
GE Fanuc, now part of Emerson Automation Solutions, is a globally recognized leader in industrial automation and control systems. Known for their reliable, high-performance products, GE Fanuc has been at the forefront of control and automation technology for decades. Their Series 90-30 PLC system, which includes modules like the IC693MDL930H, offers versatility, reliability, and ease of integration into industrial processes. The IC693MDL930H, like all GE Fanuc products, is built to meet the demanding needs of industrial users and is a trusted solution for automation professionals around the world.
Recommended Related Models (Same or Similar Series)
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| IC693MDL930 | 4-amp isolated relay output module, 4 channels | 89 x 107 x 188 | 0.45 kg |
| IC693MDL940 | 10-amp isolated relay output module, 8 channels | 89 x 107 x 188 | 0.45 kg |
| IC693MDL920 | 2-amp isolated relay output module, 4 channels | 89 x 107 x 188 | 0.45 kg |
| IC693MDL931 | 4-amp isolated relay output module, 8 channels | 89 x 107 x 188 | 0.45 kg |
| IC693MDL850 | 4-amp isolated relay output module, 6 channels | 89 x 107 x 188 | 0.45 kg |
Popular GE Models (Different Series)
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| IC695CPU320 | 2-slot CPU, advanced processing and communication | 115 x 140 x 30 | 0.6 kg |
| IC693PWR330 | Power supply module for 90-30 PLCs | 89 x 107 x 188 | 1.0 kg |
| IC693ALX400 | Analog input module with 16 channels | 89 x 107 x 188 | 0.45 kg |
| IC693MDL241 | 24V DC output module, 16 channels | 89 x 107 x 188 | 0.5 kg |
| IC693CMM321 | Ethernet communication module for GE 90-30 PLC | 89 x 107 x 188 | 0.45 kg |
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the IC693MDL930H module?
A1: The IC693MDL930H module is an isolated relay output module used to control high-power devices like motors and solenoids in a GE Fanuc 90-30 PLC system.
Q2: What is the maximum output current per channel for the IC693MDL930H?
A2: Each output channel can handle up to 4 amps of current.
Q3: What type of relay does the IC693MDL930H use?
A3: The module uses SPDT (Single Pole Double Throw) relays for each output channel.
Q4: How does the isolation in the IC693MDL930H module work?
A4: The module provides 1500V AC isolation between the input and output circuits, protecting the PLC system and external devices from electrical faults.
Q5: What is the voltage rating of the IC693MDL930H?
A5: The IC693MDL930H operates with a voltage range of 5-30 VDC.
Q6: Can the IC693MDL930H module control high-voltage devices?
A6: Yes, it can switch up to 250 VAC, making it suitable for controlling high-voltage devices.
Q7: What type of mounting is required for the IC693MDL930H?
A7: The module is designed for DIN rail mounting, making it easy to install in control panels.
Q8: What is the operating temperature range of the IC693MDL930H?
A8: The module operates in a temperature range from 0°C to 60°C (32°F to 140°F).
Q9: Does the IC693MDL930H have any status indicators?
A9: Yes, each output channel is equipped with an LED indicator to show its current status.
Q10: What industries can benefit from using the IC693MDL930H?
A10: Industries such as manufacturing, chemical processing, oil and gas, and food production can benefit from using this module to control high-power equipment and automate processes.
Reliable Control for Heavy-Duty Applications
With the GE IC693MDL930H, gain reliable control over heavy-duty devices like motors and solenoids, making it ideal for industrial automation.
Safety First: Protect Your PLC with Isolated Outputs
The IC693MDL930H ensures safety with its 1500V AC isolation, protecting your valuable PLC system from electrical surges and faults.
Compact, Durable, and Powerful Control
The IC693MDL930H offers powerful 4-amp relay outputs in a compact design, providing reliable control in tight spaces.
Seamless Integration with GE 90-30 PLC Systems
Fully compatible with the GE Fanuc 90-30 PLC, the IC693MDL930H integrates seamlessly into your automation setup for quick, efficient control.
