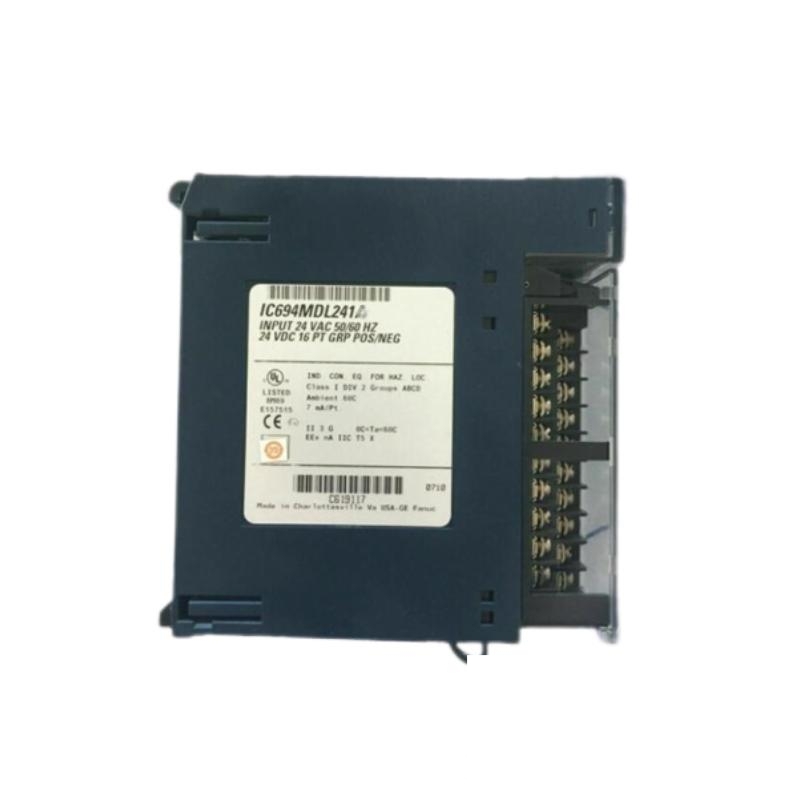

GE IC694MDL241 AC/DC Voltage Discrete Input Module
Product Introduction
The GE IC694MDL241 is a high-quality AC/DC voltage discrete input module designed for use in industrial automation systems. It is part of the RX3i series, a line of programmable logic controllers (PLCs) developed by General Electric. This input module allows for seamless communication between field devices and the central control system by accepting input signals from a variety of sources, including both AC and DC voltage. It is particularly suited for applications where precise monitoring and control of input signals from sensors, switches, and other devices are required.
The IC694MDL241 is designed to be both reliable and efficient, offering flexible input voltage options, making it ideal for a wide range of industrial automation and control applications. Whether it is used in manufacturing plants, energy management systems, or building automation, the IC694MDL241 ensures high performance, minimal downtime, and operational efficiency.
Product Specifications
| Parameter | Value |
|---|---|
| Model | IC694MDL241 |
| Series | RX3i |
| Dimensions (mm) | 34 x 145 x 140 |
| Weight | 0.24 kg |
| Input Type | AC/DC Voltage |
| Input Voltage Range | 10-30V DC, 85-265V AC |
| Input Current | 5mA per channel (typical) |
| Mounting Type | DIN Rail |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Protection Rating | IP20 |
| I/O Channels | 16 digital inputs (AC/DC sourcing) |
| Electrical Isolation | 1500V RMS |
Applications
The GE IC694MDL241 AC/DC voltage discrete input module is ideal for various industrial applications where reliable signal input from sensors, switches, and other devices is essential. Common use cases include:
-
Manufacturing Automation: Collecting data from machinery and sensors to monitor operational performance and ensure smooth factory floor operations.
-
Energy Management: Monitoring electrical signals in power distribution and management systems for energy efficiency and fault detection.
-
Process Control: Used in industries such as chemical processing, where accurate input data is needed for controlling critical processes.
-
Building Automation: Employed in the monitoring of HVAC systems, lighting controls, and other building systems that require discrete input from field devices.
-
Machine Monitoring: Ideal for real-time monitoring of machinery and equipment in manufacturing, helping prevent breakdowns and optimizing maintenance schedules.
Product Advantages
-
Versatile Voltage Input: The IC694MDL241 supports both AC and DC voltage inputs, providing flexibility for a variety of industrial applications.
-
High Reliability: The module is engineered to perform consistently under demanding industrial conditions, ensuring minimal downtime and increased operational efficiency.
-
Compact Design: With dimensions of just 34 x 145 x 140 mm, the IC694MDL241 is compact and easy to integrate into existing control systems, saving valuable space in control panels.
-
Flexible Channel Configuration: The module supports 16 digital input channels, making it a flexible solution for large-scale automation systems.
-
Wide Temperature Range: Operating within a temperature range of -40°C to +70°C, the IC694MDL241 is suitable for use in diverse environments, from cold storage facilities to hot industrial areas.
-
High Protection Rating: The IP20 protection rating ensures the module is safeguarded from physical damage, making it suitable for industrial applications where environmental conditions may be harsh.
-
Easy Integration: Designed for easy installation with DIN rail mounting, the IC694MDL241 integrates seamlessly into the RX3i PLC systems, enhancing system efficiency and reducing installation time.
Brand Information
General Electric (GE) is a global leader in industrial automation and control solutions. With a history spanning over 100 years, GE has been at the forefront of delivering innovative technologies for various industries, including energy, aviation, healthcare, and industrial automation. The RX3i series is part of GE’s extensive portfolio of programmable logic controllers, designed to provide scalable, reliable, and high-performance control solutions for complex automation needs. The IC694MDL241 is a testament to GE’s commitment to delivering quality, performance, and flexibility in industrial automation.
Related Model Recommendations (Same Series or Similar)
| Model | Description | Key Specifications |
|---|---|---|
| IC694MDL240 | Digital input module for 24V DC systems | 16 digital inputs, 24V DC, compact design |
| IC694MDL260 | General-purpose input/output module | Modular I/O, flexible channel configuration |
| IC694MDL350 | High-density digital input module | 32 digital inputs, supports 24V DC and 120V AC inputs |
| IC694MDL340 | High-density input module with extended features | 32 digital inputs, 24V DC, high-performance data acquisition |
| IC694MDL670 | Output module for AC and DC voltage systems | 16 relay outputs, supports AC/DC voltage control |
| IC694MDL730 | Expansion module for both analog and digital inputs | Supports 16 analog and digital input channels |
Other Popular GE Models
| Model | Description | Key Specifications |
|---|---|---|
| IC200ALG320 | Analog input/output module for process control | 8 channels, 12-bit resolution, thermocouple support |
| IC200PNS002 | Network interface module for GE PLC systems | Ethernet-based communication, seamless integration with PLCs |
| IC695PSA140 | Power supply module for GE PLCs | 24V DC, redundant power supply for RX3i systems |
| IC695CPU320 | High-performance CPU for RX3i PLC | 2 Ethernet ports, up to 32 I/O expansion slots |
| IC695HMI003 | Human-machine interface module for control systems | Large color touch screen, customizable HMI for enhanced UX |
| IC695CMM001 | Communication module for industrial network protocols | Supports Ethernet, Modbus TCP, and other industrial protocols |
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the GE IC694MDL241 module?
A1: The IC694MDL241 module is designed to receive digital input signals from devices using either AC or DC voltage, enabling precise monitoring and control in industrial automation systems.
Q2: Can the IC694MDL241 be used with any PLC system?
A2: The IC694MDL241 is specifically designed for use with the GE RX3i series PLCs, ensuring compatibility and smooth integration.
Q3: How many input channels does the IC694MDL241 support?
A3: The module supports 16 digital input channels, making it suitable for large-scale automation systems requiring multiple inputs.
Q4: What types of voltage can the IC694MDL241 process?
A4: The IC694MDL241 supports both AC and DC voltage inputs, with voltage ranges from 10-30V DC and 85-265V AC.
Q5: How does the IC694MDL241 module integrate with the RX3i PLC?
A5: The IC694MDL241 integrates directly with the RX3i PLC through a backplane connection, enabling efficient data communication and system control.
Q6: What is the protection rating of the IC694MDL241 module?
A6: The IC694MDL241 has an IP20 protection rating, ensuring it is protected from physical contact and solid objects larger than 12mm.
Q7: What is the maximum operating temperature for the IC694MDL241 module?
A7: The IC694MDL241 operates within a temperature range of -40°C to +70°C, making it suitable for use in both cold and hot environments.
Q8: Is the IC694MDL241 module suitable for outdoor installation?
A8: No, the IC694MDL241 is designed for indoor use only and should be installed in environments where exposure to moisture or dust is minimal.
Q9: What is the mounting method for the IC694MDL241 module?
A9: The IC694MDL241 is designed for easy installation on a DIN rail, simplifying integration into control systems.
Q10: Can the IC694MDL241 be used in hazardous environments?
A10: The IC694MDL241 is not rated for hazardous environments. It should be used in industrial control systems that meet safety and environmental standards.
