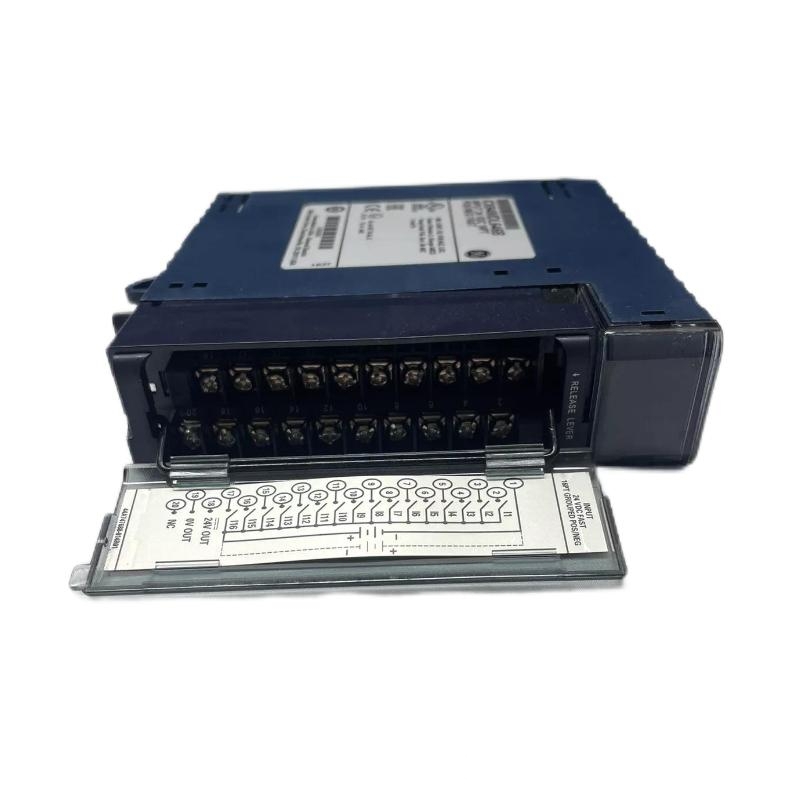

GE IC694MDL646B 24 VDC 16-Point Positive/Negative Logic Input Module
Product Overview:
The GE IC694MDL646B is a 24 VDC 16-point input module designed to handle both positive and negative logic inputs. This module is part of the GE RX3i series, which is known for its powerful and flexible industrial automation solutions. The IC694MDL646B is ideal for industrial applications that require reliable and accurate digital input processing. It is well-suited for environments where space is limited, offering a compact design without compromising performance.
Key Features:
16 Input Points: Provides 16 input channels for discrete digital signals, allowing efficient signal processing from multiple sources simultaneously.
Flexible Logic Handling: Supports both positive and negative logic, providing flexibility for a variety of applications.
Operating Voltage: Designed to operate at a standard 24 VDC, it ensures compatibility with a wide range of devices and control systems.
Compact Design: With a size of 34 x 145 x 140 mm and weighing only 0.258 kg, the module is compact and easy to integrate into space-constrained systems.
Durability: Built to withstand harsh industrial conditions, offering reliable performance across a wide range of temperatures and environmental factors.
Product Parameters:
| Parameter | Specification |
|---|---|
| Model Number | IC694MDL646B |
| Input Type | Positive/Negative Logic |
| Number of Points | 16 |
| Input Voltage | 24 VDC |
| Input Current | 4 mA (typical per point) |
| Dimensions | 34 x 145 x 140 mm |
| Weight | 0.258 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
Applications:
The GE IC694MDL646B module is used in various industrial automation systems to collect and process digital signals from field devices. Common applications include:
Manufacturing Automation: Used to interface with sensors, actuators, and other field devices for precise control and monitoring.
Process Control: Ideal for collecting discrete signals in process industries such as chemicals, pharmaceuticals, and food production.
Building Management: Supports building automation systems by managing inputs from sensors and switches for HVAC, lighting, and security.
Material Handling Systems: Works with conveyors, motors, and other machinery to monitor and control the movement of materials in factories and warehouses.
Advantages:
Flexible Logic Handling: The ability to handle both positive and negative logic allows this module to easily interface with a wide variety of field devices and control systems.
Compact Design: The module’s small size ensures that it fits into tight spaces within control panels, optimizing the use of available space.
High Durability: With a wide operating temperature range of 0°C to 60°C and robust construction, this module is designed to perform reliably in demanding industrial environments.
Easy Integration: It integrates seamlessly with the GE RX3i PLC system, allowing for quick installation and configuration in existing control systems.
Energy-Efficient: Operating at 24 VDC with low current consumption, the IC694MDL646B helps reduce energy usage and operating costs.
Brand and Series:
Brand: General Electric (GE)
Series: RX3i Series – Known for its high-performance and versatile PLC solutions, the RX3i series is widely used in industrial automation for its scalability, flexibility, and reliability.
Related Models from the GE RX3i Series:
| Model Number | Description | Input Type | Number of Points | Voltage | Dimensions | Weight |
|---|---|---|---|---|---|---|
| IC694MDL645 | 24 VDC 16-point input module | Positive/Negative | 16 | 24 VDC | 34 x 145 x 140 mm | 0.258 kg |
| IC694MDL646A | 24 VDC 16-point input module | Positive/Negative | 16 | 24 VDC | 34 x 145 x 140 mm | 0.258 kg |
| IC694MDL647A | 48 VDC 16-point input module | Positive/Negative | 16 | 48 VDC | 34 x 145 x 140 mm | 0.258 kg |
| IC694MDL648B | 24 VDC 32-point input module | Positive/Negative | 32 | 24 VDC | 34 x 145 x 140 mm | 0.500 kg |
| IC694MDL649A | 48 VDC 32-point input module | Positive/Negative | 32 | 48 VDC | 34 x 145 x 140 mm | 0.500 kg |
Popular Models from the Same Brand (GE):
| Model Number | Description | Input Type | Number of Points | Voltage | Dimensions | Weight |
|---|---|---|---|---|---|---|
| IC693MDL240 | 24 VDC 16-point discrete input module | Positive/Negative | 16 | 24 VDC | 34 x 145 x 140 mm | 0.258 kg |
| IC693MDL231 | 120 VAC 16-point discrete input | Positive/Negative | 16 | 120 VAC | 34 x 145 x 140 mm | 0.258 kg |
| IC693MDL645A | 24 VDC 16-point input module | Positive/Negative | 16 | 24 VDC | 34 x 145 x 140 mm | 0.258 kg |
| IC693MDL645B | 24 VDC 32-point input module | Positive/Negative | 32 | 24 VDC | 34 x 145 x 140 mm | 0.500 kg |
| IC693MDL646A | 24 VDC 16-point input module | Positive/Negative | 16 | 24 VDC | 34 x 145 x 140 mm | 0.258 kg |
FAQ Section:
Q1: What is the input voltage for the IC694MDL646B module?
A1: The module operates at 24 VDC.
Q2: How many input points does the IC694MDL646B module support?
A2: It supports 16 discrete input points.
Q3: What type of logic is supported by this module?
A3: It supports both positive and negative logic inputs.
Q4: What are the physical dimensions of this module?
A4: It measures 34 x 145 x 140 mm.
Q5: How much does the IC694MDL646B weigh?
A5: It weighs 0.258 kg.
Q6: Can I use this module in high-temperature environments?
A6: Yes, it operates reliably from 0°C to 60°C.
Q7: Is this module compatible with all GE RX3i systems?
A7: Yes, it is specifically designed to be used with RX3i series PLCs.
Q8: What is the input current per channel?
A8: Typically, the input current is 4 mA per point.
Q9: Does the module require external power supply for input sensing?
A9: No, it utilizes standard 24 VDC field power for input sensing.
Q10: Is installation and setup user-friendly?
A10: Absolutely, it is plug-and-play within RX3i systems and easy to configure.
