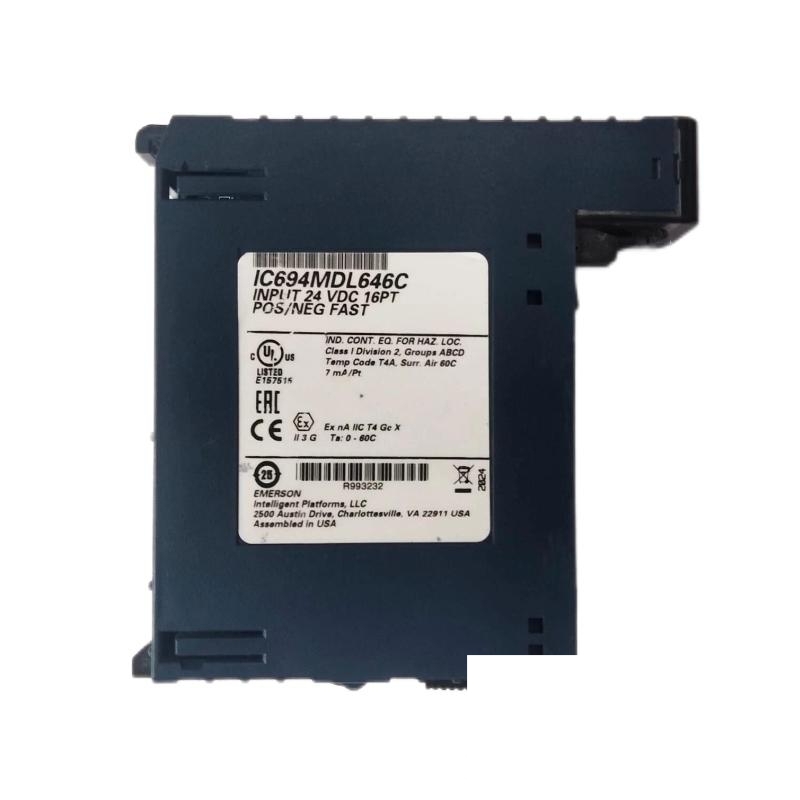

GE IC694MDL646C 24 VDC 16-Point Positive/Negative Logic Input Module

Product Overview:

The GE IC694MDL646C is a 24 VDC 16-point digital input module designed for industrial control systems that require high reliability and flexibility. As part of the GE RX3i series, this module offers the capability to handle both positive and negative logic inputs, making it a versatile solution for a wide variety of industrial applications. Built to perform in challenging environments, the IC694MDL646C is engineered for seamless integration into high-performance automation systems and supports precise monitoring of discrete signals from field devices.

With its compact size and advanced features, this input module is a preferred choice for manufacturers looking to optimize control efficiency while reducing panel space and maintenance effort.

Key Features:

• Supports Positive and Negative Logic: Ideal for connecting a variety of field sensors and switches without reconfiguration.

• 16 Discrete Input Points: Provides sufficient capacity for monitoring multiple field signals in one module.

• High-Speed Signal Processing: Designed to respond quickly and reliably to changes in input status.

• Compact and Lightweight: Saves space in control cabinets with dimensions of 34 x 145 x 140 mm and a weight of 0.258 kg.

• Plug-and-Play Integration: Fully compatible with GE RX3i systems, simplifying setup and reducing installation time.

Technical Specifications:

Applications:

The IC694MDL646C module is designed for use in a broad range of industrial automation and process control environments. Typical applications include:

• Discrete Sensor Input Monitoring: Used in manufacturing plants to collect signals from proximity switches, push buttons, and photoelectric sensors.

• Material Handling Systems: Controls conveyor belts, sorters, and packaging machines by processing multiple input signals.

• Machine Control: Ideal for tracking machine status, safety interlocks, and operator panel inputs.

• Building Automation: Integrates with building management systems for lighting, security, and ventilation control.

• Utilities and Infrastructure: Used in power plants, water treatment, and infrastructure monitoring for efficient and reliable system feedback.

Advantages:

• Flexible Logic Support: One module handles both sourcing and sinking inputs, reducing the need for additional modules.

• Highly Reliable: Designed for mission-critical applications with robust isolation and EMI immunity.

• Space-Saving Design: Compact dimensions make it ideal for installations with limited panel space.

• Easy to Install and Maintain: Compatible with RX3i PLCs, hot-swappable (with precautions), and equipped with status indicators for easy troubleshooting.

• Scalable System Integration: Easily integrates into scalable systems, from small machines to large, complex automation setups.

Brand and Series Information:

• Brand: General Electric (GE)

• Product Line: PACSystems RX3i Series

GE’s PACSystems RX3i series is known for its powerful CPUs, robust I/O modules, and flexible architecture designed for high-performance applications. The IC694MDL646C continues this legacy by offering field-proven reliability with modern features.

Recommended Related Models (RX3i Series):

Popular GE Models:
