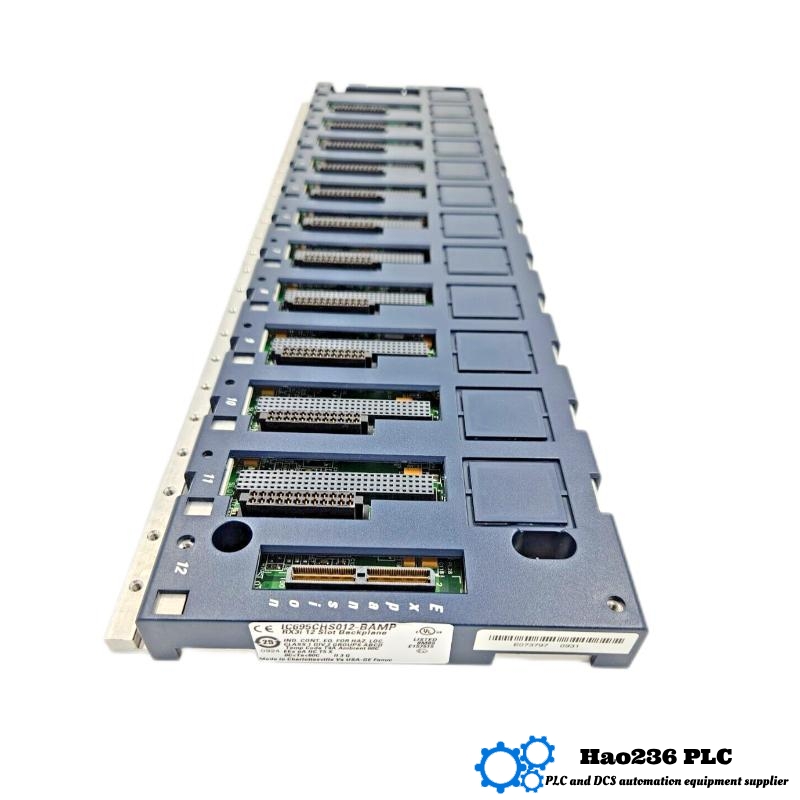

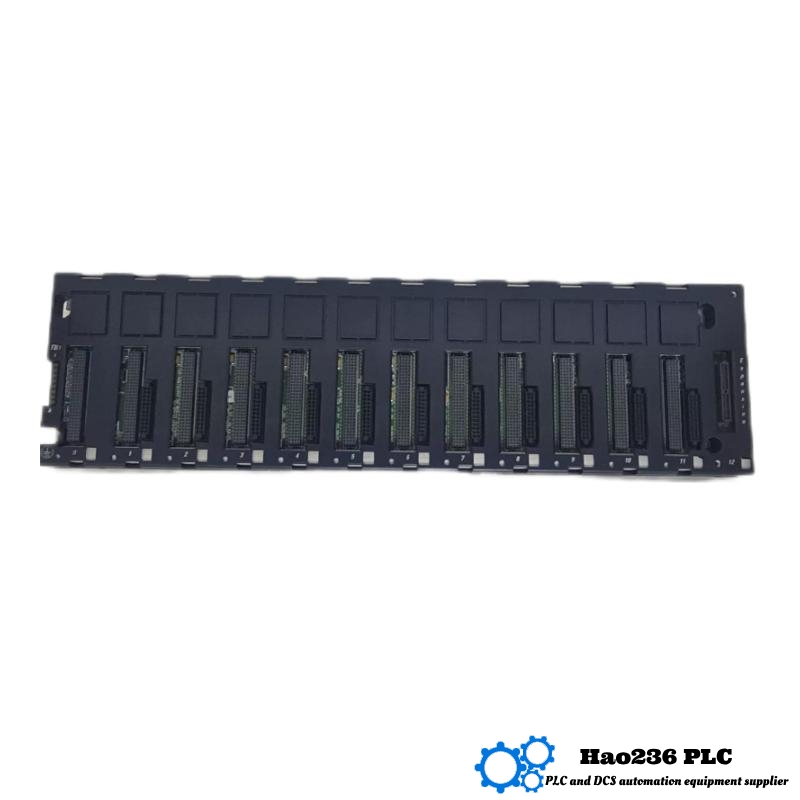

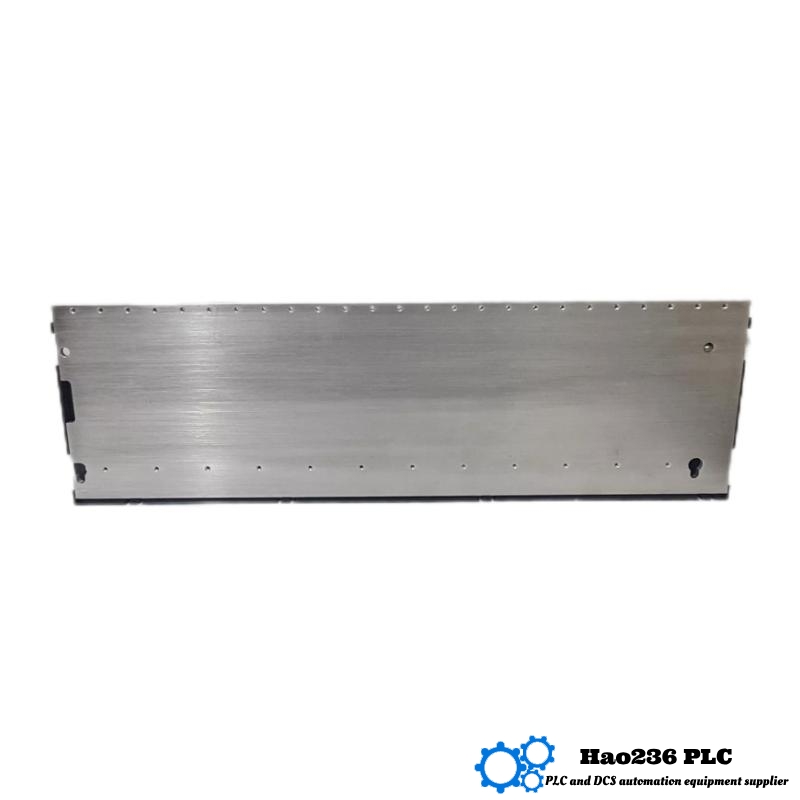

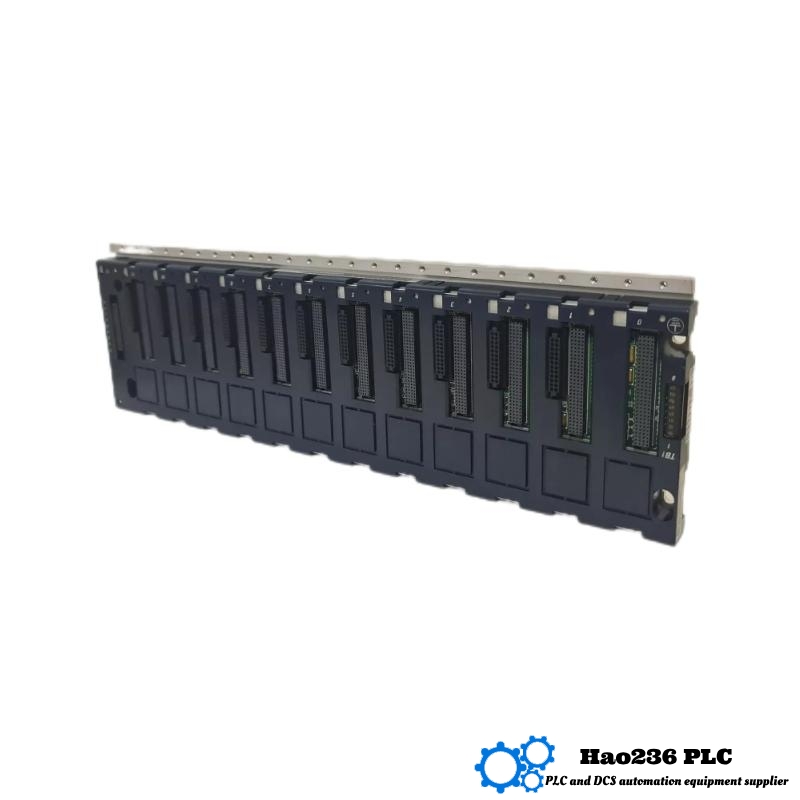

Product Overview for GE IC695CHS012-BAMP RX3i 12-Slot Backplane
Brand: GE Automation
Series: RX3i Series
Product Code: IC695CHS012-BAMP
Product Type: RX3i 12-Slot Backplane
Product Introduction
The GE IC695CHS012-BAMP is a high-performance backplane designed for the RX3i series of control systems. It features 12 slots for accommodating various I/O modules, communication modules, and CPU units, making it an essential part of the modular control system architecture. The backplane allows for seamless communication between the modules and ensures high-speed, reliable data exchange, which is critical for industrial automation processes.
With its compact design and robust construction, the IC695CHS012-BAMP backplane is built to withstand industrial environments and is ideal for large-scale control systems, offering flexibility, scalability, and efficiency. The backplane supports a variety of I/O modules, providing a centralized connection hub for all the modules in your control system.
Product Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 141.48 x 457.45 x 147.32 mm |
| Weight | 1.58 kg |
| Number of Slots | 12 |
| Power Supply | 5V DC |
| Environmental Temperature | 0°C to 60°C |
| Mounting | DIN rail, Rack |
| Bus Communication | High-speed backplane bus |
| Data Transfer Speed | 1 Mbps |
| Operating Voltage | 5V DC ±5% |
| LED Indicators | Power, Bus Status |
| Humidity Range | 5% to 95% non-condensing |
Applications
The GE IC695CHS012-BAMP RX3i 12-Slot Backplane is primarily used in industrial automation systems, including manufacturing, process control, and other critical applications where reliability and high-speed data transfer are essential. Its applications include:
-
Factory Automation: Connecting I/O modules, communication modules, and CPUs to automate and monitor factory processes.
-
Process Control: Providing the necessary infrastructure to support high-performance process control systems, ensuring reliable operation in industries such as oil & gas, chemicals, and utilities.
-
Building Automation: Integrating with HVAC, security, and lighting systems for smart building management.
-
Machine Control: Supporting machine automation systems where high-speed, reliable communication is required between various devices.
-
Energy Management: Connecting monitoring and control systems to improve energy efficiency and performance across industrial plants.
Advantages
-
Scalable Architecture: With 12 slots, the backplane can accommodate a variety of I/O and communication modules, enabling flexible and scalable system configurations.
-
Robust and Reliable: Built to withstand tough industrial environments, ensuring long-term durability and reliable performance.
-
High-Speed Communication: The backplane’s high-speed data transfer capability (1 Mbps) ensures seamless communication between modules, reducing latency and improving system efficiency.
-
Easy Integration: Designed for easy mounting on DIN rails or racks, the backplane allows for quick and convenient integration into existing control systems.
-
Centralized Control: The backplane offers centralized connection points for all modules in the control system, simplifying the management of complex systems and reducing wiring complexity.
-
Wide Temperature Range: With an operating temperature range of 0°C to 60°C, it is suitable for use in a variety of industrial environments.
Recommended Related Models in the RX3i Series
| Model | Description | Slots | Communication | Power Supply |
|---|---|---|---|---|
| IC695CHS013-BAMP | RX3i 12-Slot Backplane with bus | 12 | High-speed backplane bus | 5V DC |
| IC695CHS014-BAMP | RX3i 8-Slot Backplane | 8 | High-speed backplane bus | 5V DC |
| IC695CHS015-BAMP | RX3i 4-Slot Backplane | 4 | High-speed backplane bus | 5V DC |
| IC695CHS016-BAMP | RX3i 16-Slot Backplane | 16 | High-speed backplane bus | 5V DC |
| IC695CHS017-BAMP | RX3i 8-Slot Backplane with redundancy | 8 | High-speed backplane bus | 5V DC |
Other Popular GE Models
| Model | Description | Slots | Communication | Power Supply |
|---|---|---|---|---|
| IC695CPU310 | RX3i 3U CPU with Ethernet and serial | N/A | Ethernet, Serial | 5V DC |
| IC695CPE310 | RX3i CPU for high-performance control | N/A | Ethernet, Serial | 5V DC |
| IC695ALG608 | 8-channel analog input module | 8 | High-speed backplane bus | 5V DC |
| IC695TBD001 | High-density I/O module | 32 | High-speed backplane bus | 5V DC |
| IC695BEM002 | Battery backup module | N/A | N/A | 3.6V |
FAQ (Frequently Asked Questions)
Q1: What is the maximum number of modules that can be connected to the IC695CHS012-BAMP backplane?
A1: The IC695CHS012-BAMP backplane supports up to 12 modules.
Q2: What is the power supply requirement for the IC695CHS012-BAMP?
A2: The backplane requires a 5V DC power supply.
Q3: Can the IC695CHS012-BAMP backplane be mounted on a DIN rail?
A3: Yes, the backplane can be mounted on a DIN rail for easy installation.
Q4: What is the data transfer speed supported by the IC695CHS012-BAMP?
A4: The backplane supports a data transfer speed of 1 Mbps.
Q5: What is the weight of the IC695CHS012-BAMP backplane?
A5: The backplane weighs 1.58 kg.
Q6: What is the temperature range for operating the IC695CHS012-BAMP?
A6: The backplane can operate within a temperature range of 0°C to 60°C.
Q7: Does the IC695CHS012-BAMP have LED indicators?
A7: Yes, it has LED indicators for power and bus status.
Q8: How many slots are available in the IC695CHS012-BAMP?
A8: The IC695CHS012-BAMP has 12 slots for I/O and communication modules.
Q9: What is the main function of the IC695CHS012-BAMP?
A9: The main function of the IC695CHS012-BAMP is to provide a high-speed communication interface between modules in the RX3i control system.
Q10: Can the IC695CHS012-BAMP be used in redundant configurations?
A10: While the IC695CHS012-BAMP does not feature built-in redundancy, related modules in the RX3i series can be configured for redundancy in the system.
Power Your Automation with GE’s RX3i 12-Slot Backplane
Unlock the full potential of your control system with the IC695CHS012-BAMP. Seamless integration and high-speed data transfer for maximum efficiency.
The Backbone of Your Industrial Automation
Designed for reliability and scalability, the IC695CHS012-BAMP backplane is the perfect solution for your high-performance control systems.
Connect More, Control More, With GE’s 12-Slot Backplane
Boost your system’s connectivity with the GE IC695CHS012-BAMP backplane. 12 slots for more I/O modules and enhanced system capabilities.
Robust, Reliable, Ready for Any Challenge
Built for industrial environments, the GE IC695CHS012-BAMP backplane offers exceptional performance, scalability, and ease of integration.
