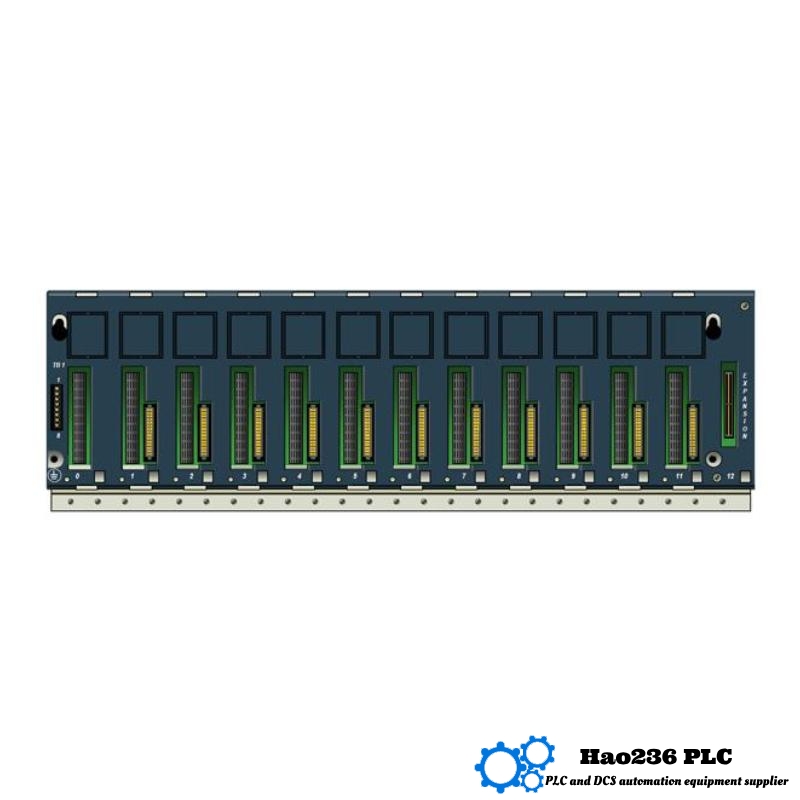

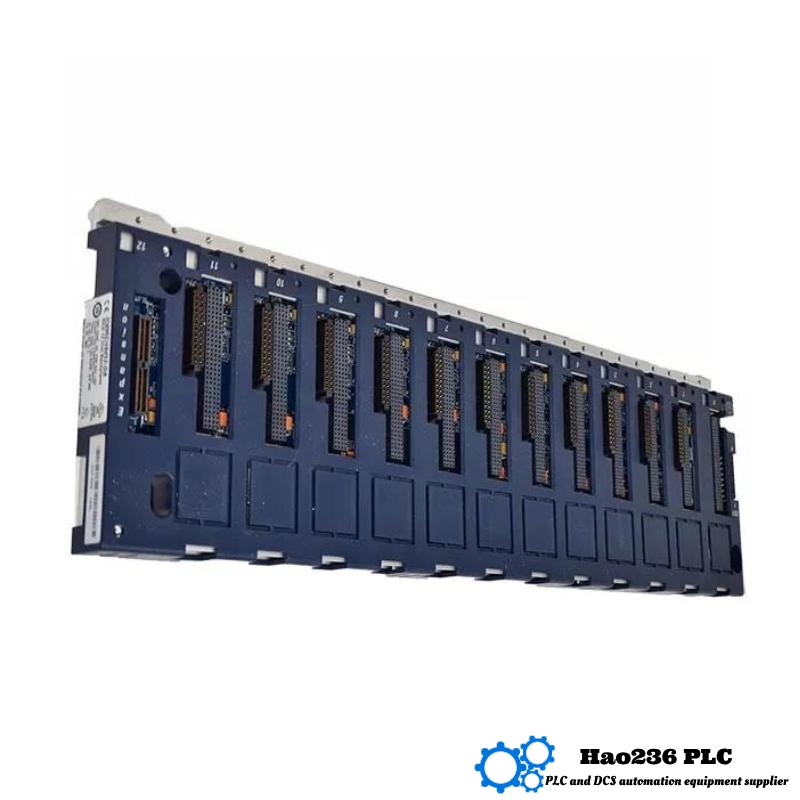

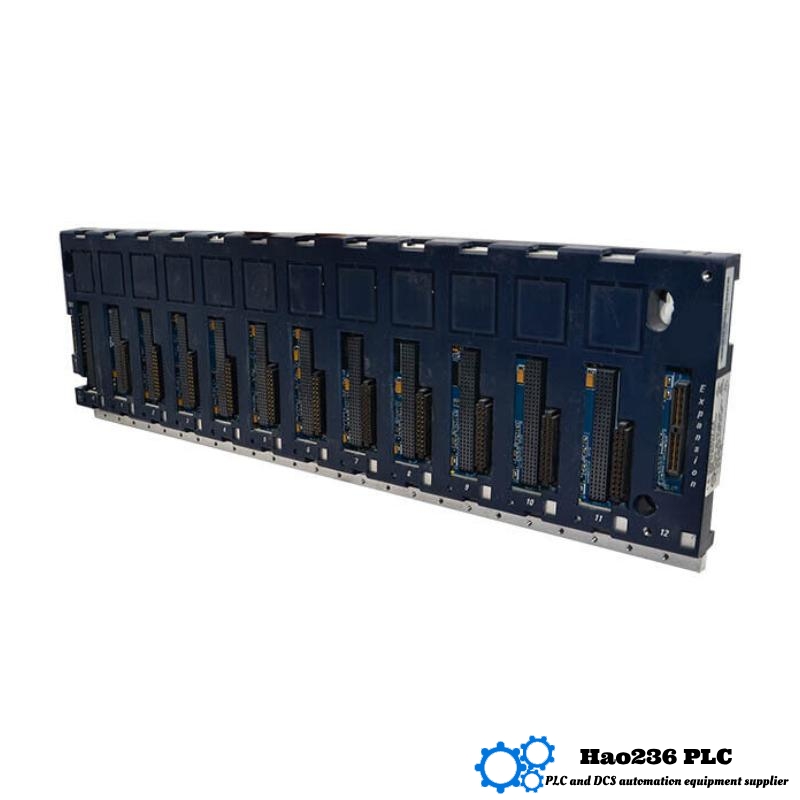

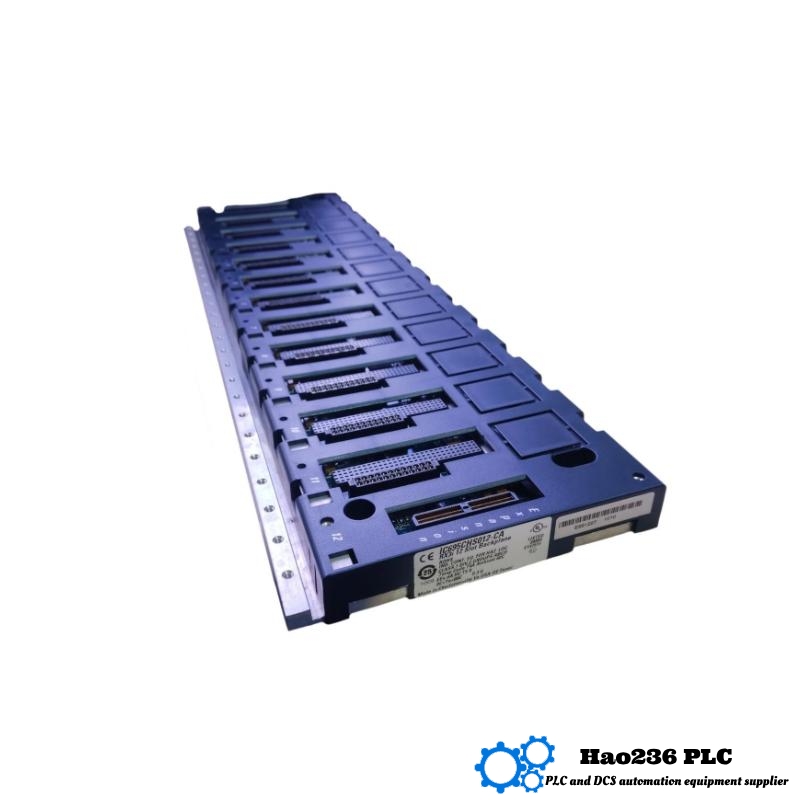

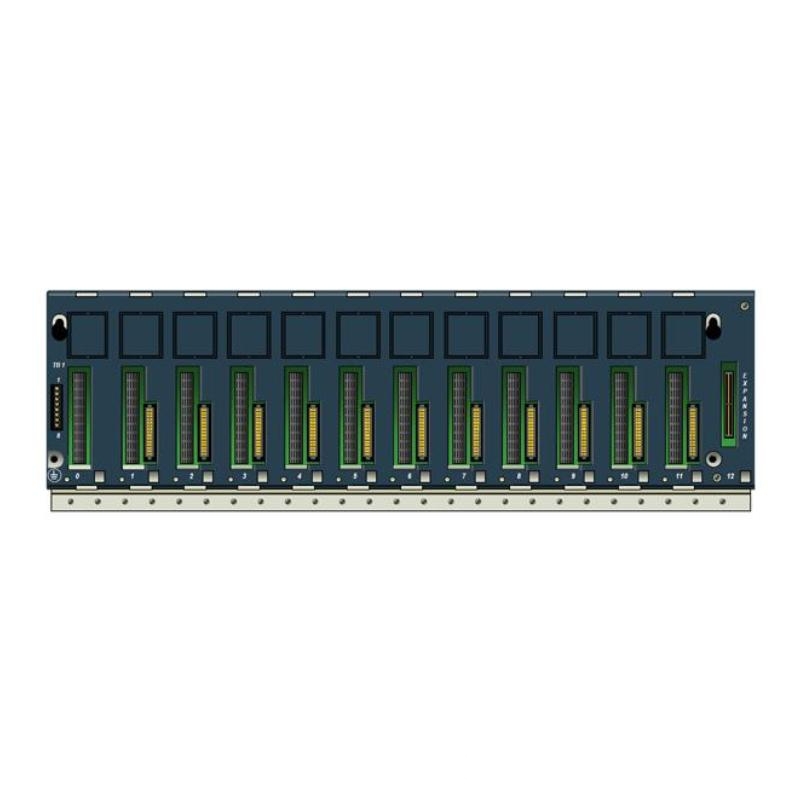

Product Overview for GE IC695CHS012CA-DA 12-Slot Universal Backplane
Brand: GE Automation
Series: RX3i Series
Product Code: IC695CHS012CA-DA
Product Type: 12-Slot Universal Backplane
Product Introduction
The GE IC695CHS012CA-DA is a versatile, high-performance 12-slot universal backplane designed for the GE RX3i series control systems. This backplane serves as the central communication hub for I/O and processor modules within the control system, offering superior data transfer rates, reliability, and flexibility for a wide range of industrial applications. It is engineered to connect various system components and ensure seamless operation for distributed control systems.
Built to meet the stringent requirements of industrial environments, the IC695CHS012CA-DA is ideal for applications where performance and reliability are critical. Its 12 slots accommodate a variety of I/O modules, ensuring a scalable, modular system for your automation needs. This backplane is engineered for use with the RX3i family of modules, offering compatibility with both standard and high-density I/O configurations.
Product Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 141.48 x 457.45 x 147.32 mm |
| Weight | 1.58 kg |
| Number of Slots | 12 |
| Power Supply | 5V DC |
| Environmental Temperature | 0°C to 60°C |
| Mounting | DIN rail, Rack |
| Bus Communication | High-speed backplane bus |
| Data Transfer Speed | 1 Mbps |
| Operating Voltage | 5V DC ±5% |
| LED Indicators | Power, Bus Status |
| Humidity Range | 5% to 95% non-condensing |
Applications
The GE IC695CHS012CA-DA 12-Slot Universal Backplane is designed for use in a variety of industrial automation and control applications. Its flexibility and high-speed communication capabilities make it ideal for:
-
Factory Automation: The backplane is ideal for automating and controlling manufacturing processes, improving operational efficiency and flexibility.
-
Process Control: It is well-suited for industries such as oil and gas, chemicals, and water treatment, where continuous, high-performance control systems are required.
-
Energy Management: This backplane is used for controlling and monitoring energy consumption in industrial environments, providing real-time data and analytics.
-
Building Automation: Supports integration of HVAC, lighting, and security systems, allowing for efficient management of building operations.
-
Machine Control: The backplane is perfect for machine automation systems requiring reliable, high-speed communication between modules.
Advantages
-
Scalable and Flexible: With 12 slots, the IC695CHS012CA-DA backplane provides scalability for expanding control systems, enabling easy integration of additional I/O modules as needed.
-
High-Speed Communication: The backplane supports high-speed data transfer, ensuring fast and reliable communication between connected modules.
-
Compact and Robust Design: Built for industrial applications, the backplane is designed to endure tough environments while maintaining consistent performance.
-
Easy Integration: The backplane is designed to be easily integrated into existing systems, offering quick setup and simplified module installation.
-
Wide Operating Temperature Range: Capable of operating in environments from 0°C to 60°C, ensuring its suitability for a variety of industrial settings.
-
LED Status Indicators: Features LED indicators that provide clear visual feedback on system health, such as power and bus status.
Recommended Related Models in the RX3i Series
| Model | Description | Slots | Communication | Power Supply |
|---|---|---|---|---|
| IC695CHS013-BAMP | RX3i 12-Slot Backplane with bus | 12 | High-speed backplane bus | 5V DC |
| IC695CHS014-BAMP | RX3i 8-Slot Backplane | 8 | High-speed backplane bus | 5V DC |
| IC695CHS015-BAMP | RX3i 4-Slot Backplane | 4 | High-speed backplane bus | 5V DC |
| IC695CHS016-BAMP | RX3i 16-Slot Backplane | 16 | High-speed backplane bus | 5V DC |
| IC695CHS017-BAMP | RX3i 8-Slot Backplane with redundancy | 8 | High-speed backplane bus | 5V DC |
Other Popular GE Models
| Model | Description | Slots | Communication | Power Supply |
|---|---|---|---|---|
| IC695CPU310 | RX3i 3U CPU with Ethernet and serial | N/A | Ethernet, Serial | 5V DC |
| IC695CPE310 | RX3i CPU for high-performance control | N/A | Ethernet, Serial | 5V DC |
| IC695ALG608 | 8-channel analog input module | 8 | High-speed backplane bus | 5V DC |
| IC695TBD001 | High-density I/O module | 32 | High-speed backplane bus | 5V DC |
| IC695BEM002 | Battery backup module | N/A | N/A | 3.6V |
FAQ (Frequently Asked Questions)
Q1: What is the maximum number of modules that can be connected to the IC695CHS012CA-DA backplane?
A1: The IC695CHS012CA-DA backplane supports up to 12 modules.
Q2: What is the power supply requirement for the IC695CHS012CA-DA?
A2: The backplane requires a 5V DC power supply.
Q3: Can the IC695CHS012CA-DA backplane be mounted on a DIN rail?
A3: Yes, the backplane can be mounted on a DIN rail for easy installation.
Q4: What is the data transfer speed supported by the IC695CHS012CA-DA?
A4: The backplane supports a data transfer speed of 1 Mbps.
Q5: What is the weight of the IC695CHS012CA-DA backplane?
A5: The backplane weighs 1.58 kg.
Q6: What is the temperature range for operating the IC695CHS012CA-DA?
A6: The backplane can operate within a temperature range of 0°C to 60°C.
Q7: Does the IC695CHS012CA-DA have LED indicators?
A7: Yes, it has LED indicators for power and bus status.
Q8: How many slots are available in the IC695CHS012CA-DA?
A8: The IC695CHS012CA-DA has 12 slots for I/O and communication modules.
Q9: What is the main function of the IC695CHS012CA-DA?
A9: The main function of the IC695CHS012CA-DA is to provide a high-speed communication interface between modules in the RX3i control system.
Q10: Can the IC695CHS012CA-DA be used in redundant configurations?
A10: While the IC695CHS012CA-DA does not feature built-in redundancy, related modules in the RX3i series can be configured for redundancy in the system.
Unleash the Power of Modular Control with GE's 12-Slot Backplane
Expand your control system's capabilities with the IC695CHS012CA-DA. 12 slots for seamless integration and high-speed communication.
Your Gateway to Scalable and Reliable Automation
Achieve flexibility and efficiency in industrial automation with GE's RX3i 12-Slot Universal Backplane.
Simplify Your Industrial Connectivity
With GE’s IC695CHS012CA-DA backplane, you can easily connect and communicate with your entire control system.
Reliable, Fast, and Ready for Any Challenge
The IC695CHS012CA-DA backplane is engineered to deliver exceptional performance and durability in demanding environments.
