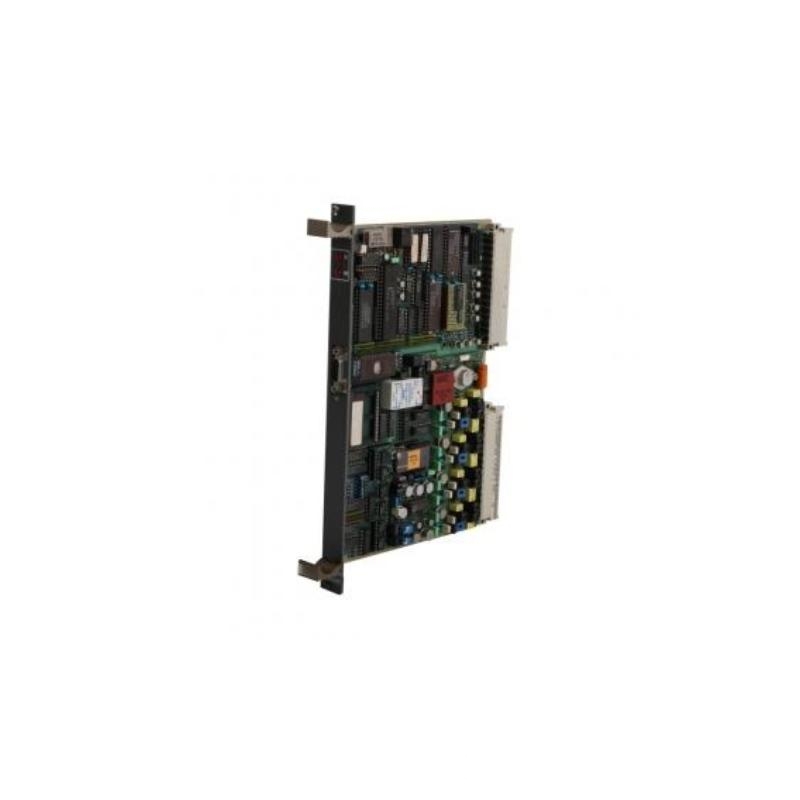

HIMA F1201 4-Channel Relay Amplifier Module
Brand: HIMA
Series: Planar F Series
Model: F1201
Product Type: 4-Channel Relay Amplifier Module
Product Specifications:
| Feature | Specification |
|---|---|
| Channels | 4 (Independent relay channels) |
| Input Signal | 0–20 mA, 4–20 mA |
| Output Signal | 1 A per channel (relay output) |
| Supply Voltage | 24 V DC ±20% |
| Relay Contact Rating | 1 A at 30 V DC, 0.5 A at 120 V AC |
| Response Time | ≤ 10 ms |
| Power Consumption | ≤ 2 W |
| Dimensions | 140 mm x 130 mm x 30 mm |
| Weight | 0.3kg |
| Operating Temperature | -20°C to +60°C |
| Input Impedance | ≥ 1 MΩ |
| Mounting | DIN rail |
| Certifications | CE, UL, ATEX (optional) |
Product Introduction:
The HIMA F1201 is a high-performance 4-channel relay amplifier module designed for industrial control systems. It is part of HIMA’s Planar F series, which is known for its robustness and precision in safety and control applications. The F1201 module is specifically engineered to amplify low-level signals such as 4–20 mA or 0–20 mA inputs, and convert them into reliable relay outputs for controlling other systems or equipment. Its compact design and exceptional reliability make it ideal for a variety of demanding industrial environments.
Applications:
The F1201 relay amplifier module is primarily used in applications where signal amplification and relay control are essential. Common uses include:
- Process Automation: Amplifying analog signals from sensors and converting them into relay actions for control systems.
- Energy Sector: Used in power generation plants to interface with analog field devices and control relays based on signal levels.
- Chemical Processing: For monitoring and controlling process variables such as flow, temperature, and pressure via analog signal amplification.
- Industrial Safety Systems: Amplifying critical signals for safety monitoring and activating relays for emergency shutdown systems.
Advantages:
- Signal Amplification: The F1201 amplifies weak analog signals, ensuring that low-level inputs from sensors are accurately processed and relayed.
- Compact and Reliable: The module is designed for high reliability in compact formats, offering easy integration into control systems without taking up significant space.
- Versatile Input and Output: It supports a range of input signals (4–20 mA, 0–20 mA) and provides a relay output for easy system control.
- Fast Response Time: With a response time of ≤ 10 ms, the F1201 is well-suited for real-time applications requiring fast, reliable control.
- High Power Efficiency: Consumes low power (≤ 2 W), reducing operational costs while maintaining high performance.
Recommended Models from the Planar F Series:
| Model | Description | Key Features |
|---|---|---|
| F1109 | Analog Input Module | 8 input channels, 16-bit resolution, high accuracy |
| F1121 | Digital Output Module | 32 output channels, robust for heavy loads |
| F1124 | Pulse Output Module | High-speed pulse output for precise control |
| F1202 | RTD Input Module | 4 RTD channels, precise temperature measurement |
| F1210 | Digital Input Module | 32 isolated inputs, wide voltage range |
Other Popular HIMA Models:
| Model | Description | Key Features |
|---|---|---|
| F1211 | Controller Module | Reliable for complex safety applications |
| F1301 | Analog Signal Conditioning Module | Signal conditioning for precise measurement |
| F1108 | Digital Input Module | 32 digital inputs, high isolation levels |
| F1104 | Relay Output Module | Supports multiple relay outputs for control |
| F1123 | Thermocouple Input Module | Precision thermocouple input for high-temperature measurement |
Frequently Asked Questions (FAQ):
Q1: What types of input signals does the F1201 support?
A1: The F1201 supports input signals of 0–20 mA and 4–20 mA.
Q2: How many channels are available on the F1201?
A2: The F1201 has 4 independent relay amplifier channels.
Q3: What is the relay output rating of the F1201?
A3: The relay output is rated at 1 A for DC voltage (30 V) and 0.5 A for AC voltage (120 V).
Q4: What is the response time of the F1201 module?
A4: The response time of the F1201 is ≤ 10 ms, ensuring fast signal processing.
Q5: What power supply is required for the F1201?
A5: The F1201 operates on a 24 V DC power supply with a tolerance of ±20%.
Q6: Can the F1201 module be used in hazardous environments?
A6: Yes, the F1201 is certified with ATEX and can be used in explosive atmospheres with optional certifications.
Q7: What is the operating temperature range of the F1201?
A7: The operating temperature range of the F1201 is from -20°C to +60°C.
Q8: How much power does the F1201 consume?
A8: The F1201 has a low power consumption of ≤ 2 W, making it energy-efficient.
Q9: Is the F1201 easy to integrate into existing systems?
A9: Yes, the F1201 has a compact design and is easy to integrate into control systems using standard DIN rail mounting.
Q10: What are the dimensions and weight of the F1201 module?
A10: The F1201 measures 140 mm x 130 mm x 30 mm and weighs 300 grams.
Precision Control, Faster Than Ever
With a lightning-fast response time of just 10 ms, the HIMA F1201 4-channel relay amplifier module guarantees real-time control with precision. Perfect for demanding industrial environments where timing is critical.
Reliable Signal Amplification
Amplify weak analog signals with the F1201 and ensure accurate, consistent relay actions. Whether you’re in the energy sector or process automation, this module delivers precision and reliability.
Efficiency Meets Power
The F1201 uses less than 2 W of power, making it not only a high-performance solution but also an energy-efficient choice. Take control while reducing operational costs with this compact amplifier module.
Engineered for Harsh Conditions
Designed to operate in extreme temperatures from -20°C to +60°C, the F1201 is built for industries that require durability and precision, no matter the environment. Trust HIMA to keep your systems running smoothly.
