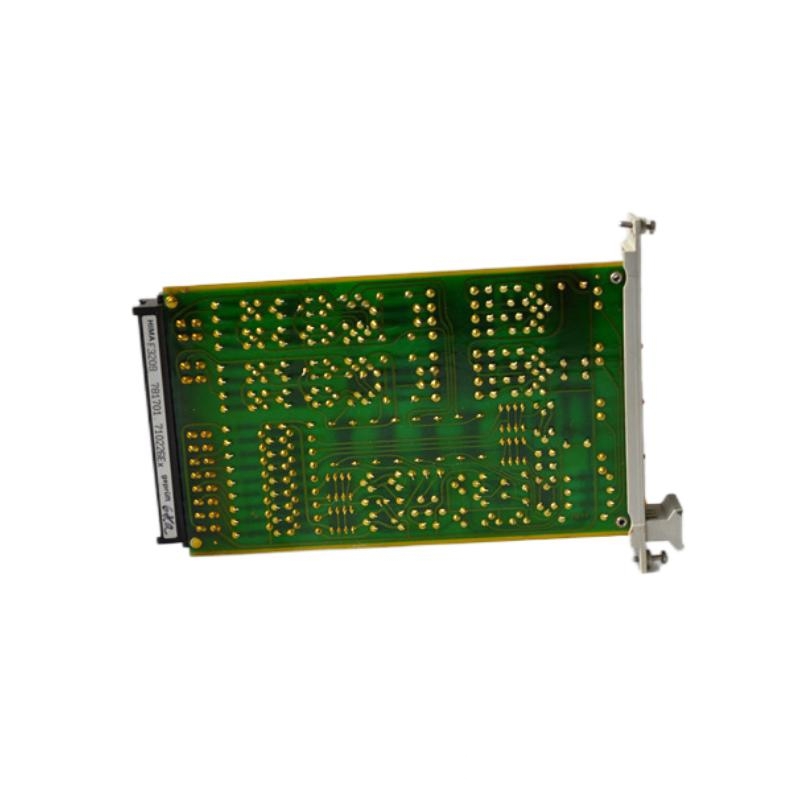

HIMA F3209 4-Channel Relay Module
Product Overview
The HIMA F3209 is a highly reliable 4-channel relay module from the Planar F series, designed for safety and control applications in industrial automation. This module features four independent relay channels, making it ideal for use in systems that require robust output control with high reliability. Each channel of the HIMA F3209 is designed for switching control of various actuators and devices within critical infrastructure.
The F3209 module offers outstanding performance in a wide range of industrial environments, ensuring accurate, secure, and fault-tolerant relay operations. It supports numerous communication protocols and integrates seamlessly with other components in the Planar F series, offering scalability and flexibility in industrial control systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | F3209 |
| Channels | 4 Channels |
| Relay Type | SPDT (Single Pole Double Throw) |
| Switching Capacity | 24 VDC, 3 A |
| Mounting Type | DIN Rail Mounting |
| Dimensions | 130 x 25 x 120 mm |
| Weight | 0.34 kg |
| Supply Voltage | 24 VDC ± 20% |
| Operating Temperature | -20°C to +60°C |
| Status Indicators | LED Indication for Each Channel |
| Isolation | 1500 V (channel to channel) |
| Operating Humidity | 5% to 95%, non-condensing |
| Protection Class | IP20 (indoor use) |
Product Features
-
Reliable 4-Channel Operation: With four independent relay channels, the F3209 module ensures versatile and secure control for various industrial applications.
-
Flexible Output Control: Each relay channel supports 24 VDC output, providing excellent switching capacity for controlling a range of actuators and systems.
-
High Isolation: The F3209 offers 1500 V isolation between channels, ensuring that the relays operate independently and reducing the risk of electrical interference.
-
LED Status Indicators: The built-in LEDs for each channel make it easy to monitor the module’s status, simplifying troubleshooting and maintenance.
-
Compact and Durable Design: The module features a compact DIN rail mountable design, saving space and ensuring easy integration into control panels.
Applications
The HIMA F3209 4-Channel Relay Module is designed for use in a variety of industrial and safety-critical applications, including:
-
Process Control Systems: The module can be used to control various actuators, pumps, and valves in process automation systems.
-
Safety Systems: It is commonly used in safety-related applications where multiple output signals are required for emergency shutdowns, alarms, and other critical functions.
-
Machine Control Systems: The F3209 provides reliable control of outputs in industrial machines, ensuring operational safety and efficiency.
-
Power Distribution Systems: It can be used in electrical grids to control circuit breakers, ensuring reliable operation of power systems.
-
Building Automation: In building control systems, the F3209 can be used to manage lighting, HVAC, and other building systems that require robust relay control.
Product Advantages
-
High Reliability: The HIMA F3209 offers reliable operation even in demanding environments, thanks to its robust design and high isolation between channels.
-
Versatile Control: With four independent channels, the F3209 provides flexibility in controlling various devices and systems.
-
Easy Integration: The compact DIN rail mountable design makes it easy to integrate the module into existing industrial control panels.
-
Status Monitoring: LED indicators for each channel simplify the monitoring and maintenance of the module, ensuring quick troubleshooting.
-
Wide Operating Range: The F3209 operates in a wide temperature range of -20°C to +60°C, making it suitable for various industrial environments.
Brand Information
-
Brand: HIMA
-
Series: Planar F Series
-
Category: Safety and Control Relays
Recommended Related Models
Here are 5 related models in the Planar F series or similar safety relay modules from HIMA:
| Model | Channels | Voltage | Isolation | Dimensions (L x W x H) | Weight | Application Area |
|---|---|---|---|---|---|---|
| F3210 | 8 | 24 VDC | 1500 V | 140 x 30 x 120 mm | 0.38 kg | Process Automation |
| F3220 | 4 | 24 VDC | 1500 V | 130 x 25 x 120 mm | 0.34 kg | Industrial Safety |
| F3230 | 6 | 24 VDC | 1500 V | 135 x 25 x 120 mm | 0.36 kg | Machine Control Systems |
| F3240 | 8 | 24 VDC | 1500 V | 150 x 30 x 120 mm | 0.40 kg | Safety Systems |
| F3250 | 10 | 24 VDC | 1500 V | 160 x 30 x 120 mm | 0.42 kg | Emergency Shutdowns |
Recommended Popular HIMA Models
Here are 5 popular models from HIMA:
| Model | Channels | Voltage | Dimensions (L x W x H) | Weight | Application Area |
|---|---|---|---|---|---|
| F3300 | 6 | 24 VDC | 140 x 30 x 120 mm | 0.35 kg | Safety and Control |
| F3400 | 8 | 24 VDC | 150 x 35 x 120 mm | 0.45 kg | Process Control |
| F3500 | 4 | 24 VDC | 130 x 25 x 120 mm | 0.34 kg | Industrial Control |
| F3600 | 6 | 24 VDC | 140 x 30 x 120 mm | 0.38 kg | Machine Safety |
| F3700 | 8 | 24 VDC | 150 x 35 x 120 mm | 0.48 kg | Building Automation |
Frequently Asked Questions (FAQs)
Q1: How many channels does the HIMA F3209 have?
A1: The HIMA F3209 has 4 independent relay channels.
Q2: What is the switching capacity of each channel in the F3209 module?
A2: Each channel can switch 24 VDC at 3 A.
Q3: What is the operating temperature range of the F3209?
A3: The F3209 operates in a temperature range from -20°C to +60°C.
Q4: What type of mounting does the F3209 support?
A4: The F3209 can be mounted on DIN rails for easy integration.
Q5: How is the status of each channel indicated in the F3209?
A5: The status of each channel is indicated by an LED light.
Q6: What is the protection class of the F3209?
A6: The F3209 has an IP20 protection class, suitable for indoor use.
Q7: What is the isolation between channels in the F3209?
A7: The isolation between channels is 1500 V, providing safety and reducing electrical interference.
Q8: What is the weight of the F3209?
A8: The F3209 weighs approximately 0.34 kg.
Q9: Can the F3209 be used in industrial automation?
A9: Yes, the F3209 is designed for industrial applications, particularly in process and safety control systems.
Q10: What is the supply voltage for the F3209?
A10: The F3209 operates with a supply voltage of 24 VDC ± 20%.
