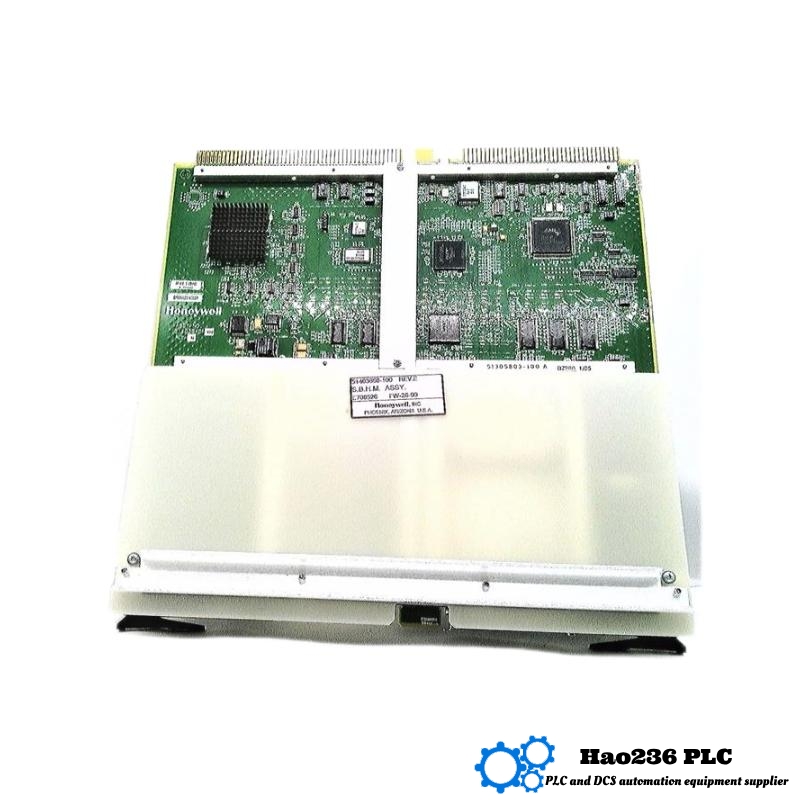

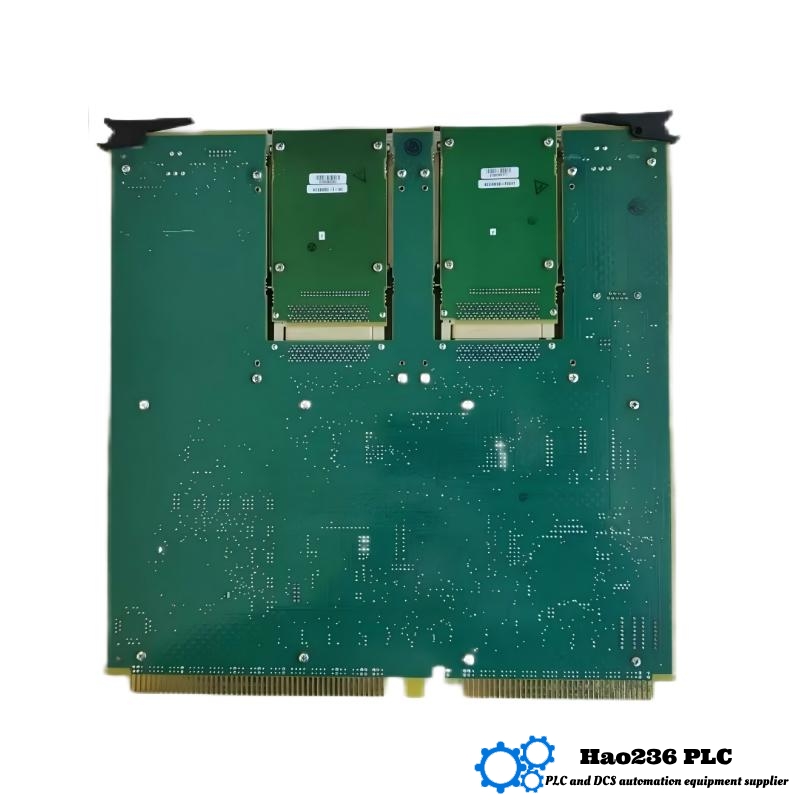

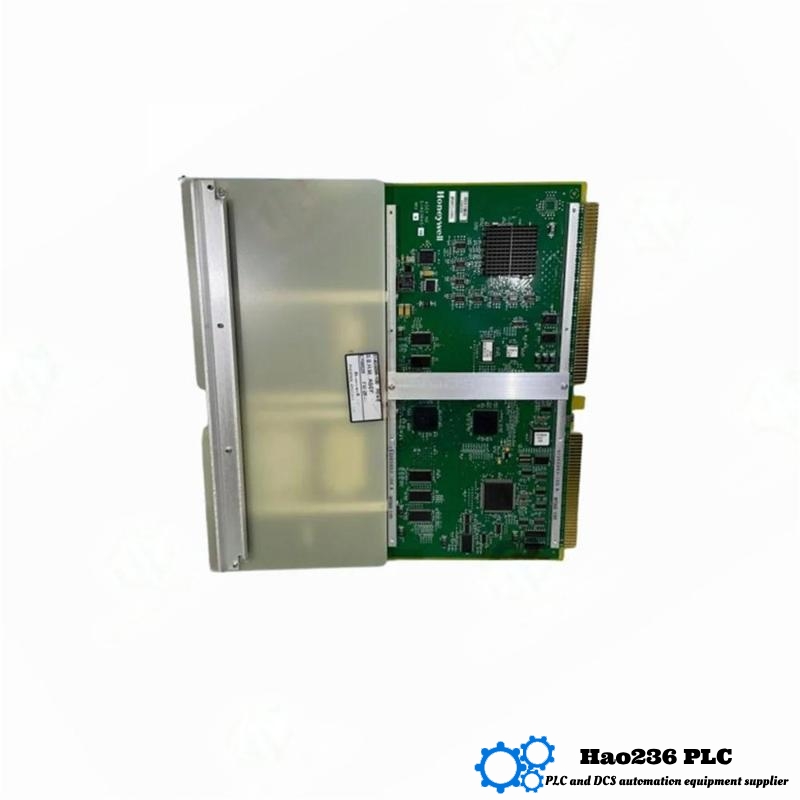

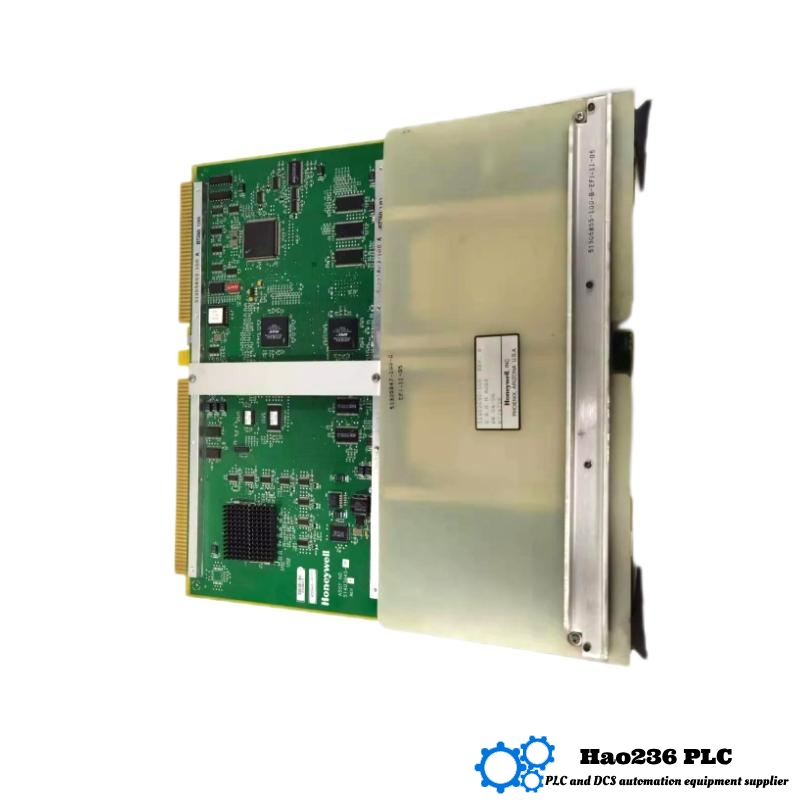

Honeywell 51403698-100 Single Board History Module
Product Introduction:
The Honeywell 51403698-100 Single Board History Module (SBHM) is a sophisticated component engineered for integration into Honeywell’s TDC 3000 Distributed Control System (DCS). This module is designed to handle data recording and analysis, ensuring smooth operational performance within industrial automation systems. The SBHM consolidates several functionalities into one compact unit, allowing for easier installation and improved system reliability. The module features a high capacity for storing and analyzing historical data, making it a critical element for industries that require precise data tracking and analysis.
The Honeywell 51403698-100 is an integral part of Honeywell’s control systems, designed to improve system efficiency, streamline the design of automation systems, and reduce the overall maintenance costs by providing a centralized data storage unit. Its design also contributes to reducing the size and complexity of the overall system architecture.
Product Specifications:
| Parameter | Value |
|---|---|
| Model Number | 51403698-100 |
| Dimensions | 205 x 224 x 35 mm |
| Weight | 0.5 kg |
| Storage Capacity | 1.8 GB per logical drive |
| Power Supply | 5 V AC |
| Interfaces | SCSI |
| Compatibility | Honeywell TDC 3000 DCS |
| Operating Temperature | 0°C to 60°C |
| Humidity Range | 5% to 95% non-condensing |
Note: The weight is 0.5 kg, which allows for easy integration into existing setups. Its compact size and efficient storage capabilities make it a convenient addition to Honeywell’s automation systems.
Product Applications:
The Honeywell 51403698-100 Single Board History Module is used across a wide range of industries where continuous data recording, historical analysis, and control data management are essential. Its key applications include:
-
Industrial Automation: Essential for recording data from various processes in manufacturing, refining, and other automation-heavy industries.
-
Process Control Systems: Supports critical data collection for system performance monitoring and process optimization.
-
Energy Sector: Assists in managing and analyzing data from power generation, distribution, and energy management systems.
-
Manufacturing and Production: Used in quality control and to monitor system performance, ensuring that manufacturing processes are operating at optimal efficiency.
-
Predictive Maintenance: By storing operational history, it enables the prediction of system failures and optimizes maintenance schedules.
Product Advantages:
-
High Integration: Combines the processor, SCSI interface, and data storage on a single board, significantly reducing system complexity and eliminating redundant components.
-
Increased System Reliability: By integrating multiple components into a single unit, the module helps to minimize points of failure, leading to improved system stability.
-
Enhanced Data Storage: The module’s substantial storage capacity (1.8 GB per logical drive) allows for efficient data logging, making it ideal for industries that require continuous monitoring and history tracking.
-
Compact Design: The compact dimensions (205 x 224 x 35 mm) make the module easy to install in environments with space limitations, enabling flexible system design.
-
Temperature and Humidity Tolerance: It is designed to operate effectively in a wide range of environmental conditions (temperature range of 0°C to 60°C and humidity of 5% to 95%), ensuring reliable performance in diverse settings.
-
Compatibility: Seamlessly integrates with Honeywell’s TDC 3000 DCS, making it ideal for users already using Honeywell’s automation solutions.
Brand: Honeywell
Honeywell is a global technology and manufacturing company that delivers high-performance automation solutions to various industries. With a legacy of innovation, Honeywell is known for its comprehensive suite of products that ensure operational efficiency, safety, and sustainability. The company’s products range from building and industrial automation systems to personal protective equipment and advanced control systems.
Series: TDC 3000 Distributed Control System (DCS)
The TDC 3000 DCS series is one of Honeywell’s flagship product lines, designed for automation in industries such as oil and gas, chemicals, power generation, and manufacturing. The series offers highly reliable and scalable systems that enable real-time process control, historical data analysis, and remote monitoring, among other functions.
Recommended Models from the Same Series or Related Models:
| Model Number | Description | Storage Capacity | Compatibility | Weight |
|---|---|---|---|---|
| 51403645-100 | Single Board History Module | 1.8 GB per drive | Honeywell TDC 3000 DCS | 0.15 kg |
| 51403776-100 | LCNP4M Board | N/A | Honeywell TDC 3000 DCS | N/A |
| 51403988-150 | HPM Communication Control Board | N/A | Honeywell TDC 3000 DCS | N/A |
| 51403422-150 | History Module | N/A | Honeywell TDC 3000 DCS | N/A |
| 51401583-100 | Controller Module | N/A | Honeywell TDC 3000 DCS | N/A |
Popular Honeywell Models:
| Model Number | Description | Application | Weight |
|---|---|---|---|
| 620-0036 | Power Supply Module | PLC Systems | 1.2 kg |
| 620-0056 | Register Module | Data Management | 0.5 kg |
| 620-0072 | Loop Processor Module | Process Control | 0.63 kg |
| 621-9940 | Analog Input Module | Process Control | 0.55 kg |
| 621-2100R | Digital Output Module | Industrial Automation | 0.5 kg |
FAQ:
-
Q: What is the primary function of the Honeywell 51403698-100 SBHM?
-
A: The module is designed for recording and analyzing historical data within the Honeywell TDC 3000 DCS, contributing to enhanced process control and operational monitoring.
-
-
Q: How does the SBHM improve system reliability?
-
A: By consolidating the processor, SCSI interface, and media onto a single board, the SBHM reduces the number of components, decreasing the likelihood of failure and improving system stability.
-
-
Q: What is the storage capacity of the SBHM?
-
A: The module offers 1.8 GB per logical drive, providing sufficient storage for long-term data collection and analysis.
-
-
Q: Is the SBHM compatible with other Honeywell systems?
-
A: It is specifically designed for integration with Honeywell’s TDC 3000 DCS, ensuring seamless operation within this environment.
-
-
Q: What are the dimensions of the SBHM?
-
A: The module has dimensions of 205 x 224 x 35 mm, making it compact and suitable for various installations.
-
-
Q: What is the weight of the SBHM?
-
A: The SBHM weighs 0.5 kg, making it lightweight and easy to install and maintain.
-
-
Q: What power supply does the SBHM require?
-
A: The module operates on a 5 V AC power supply.
-
-
Q: Can the SBHM operate in high humidity environments?
-
A: Yes, it operates effectively in environments with 5% to 95% non-condensing humidity.
-
-
Q: What is the operating temperature range for the SBHM?
-
A: The module operates in a temperature range of 0°C to 60°C, ensuring reliable performance in a variety of industrial environments.
-
-
Q: Is the SBHM still in production?
-
A: Availability may vary; it is advisable to check with Honeywell distributors for current stock or replacement options.
