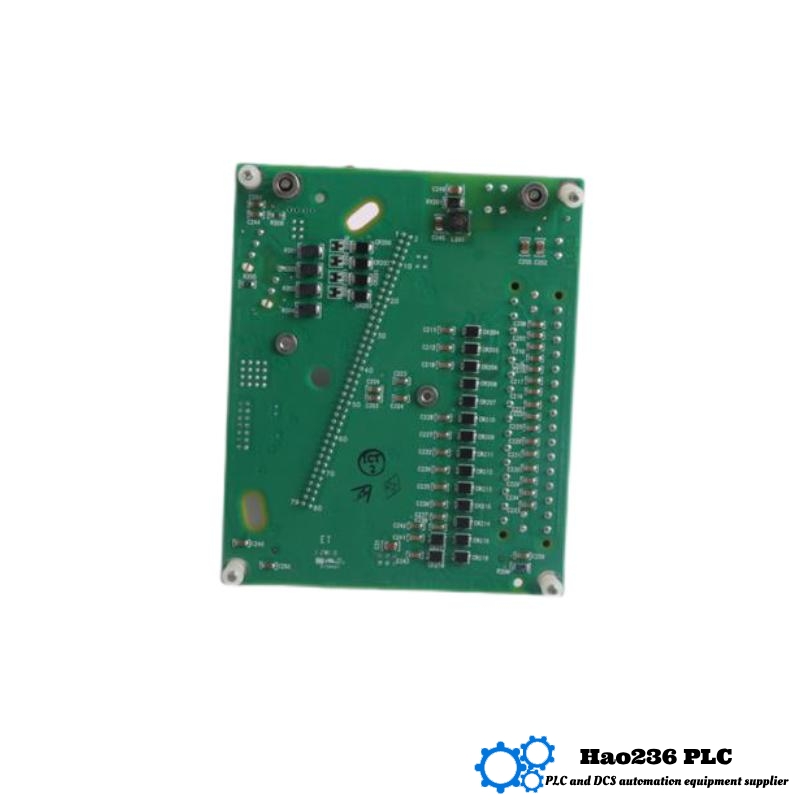

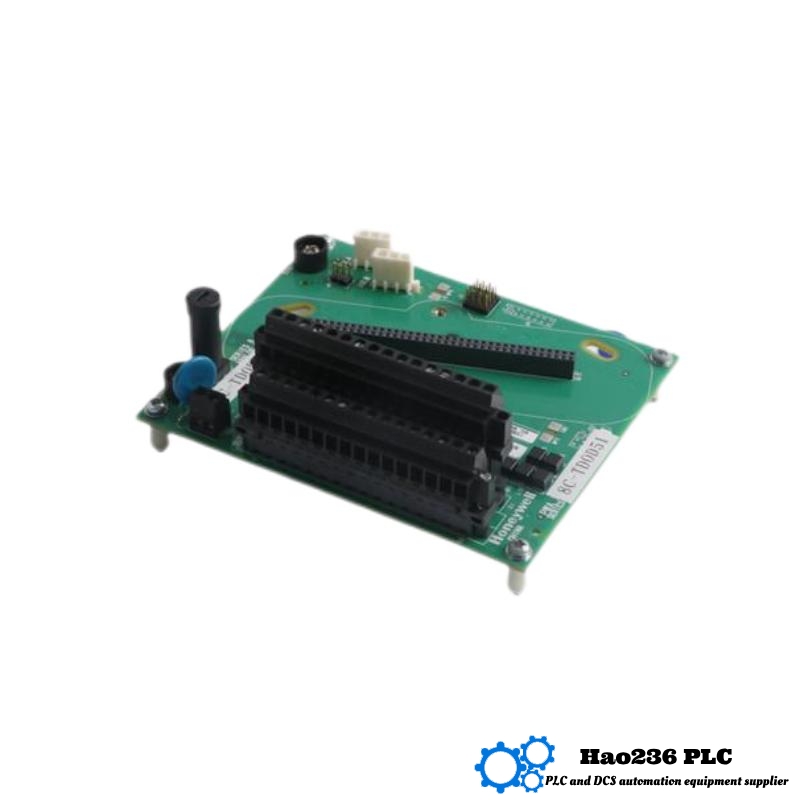

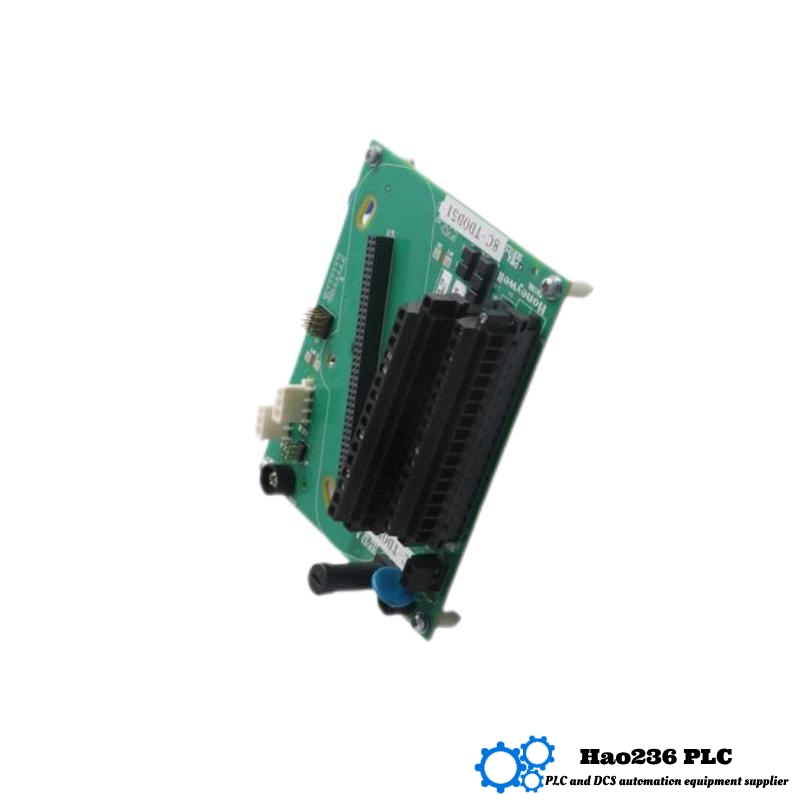

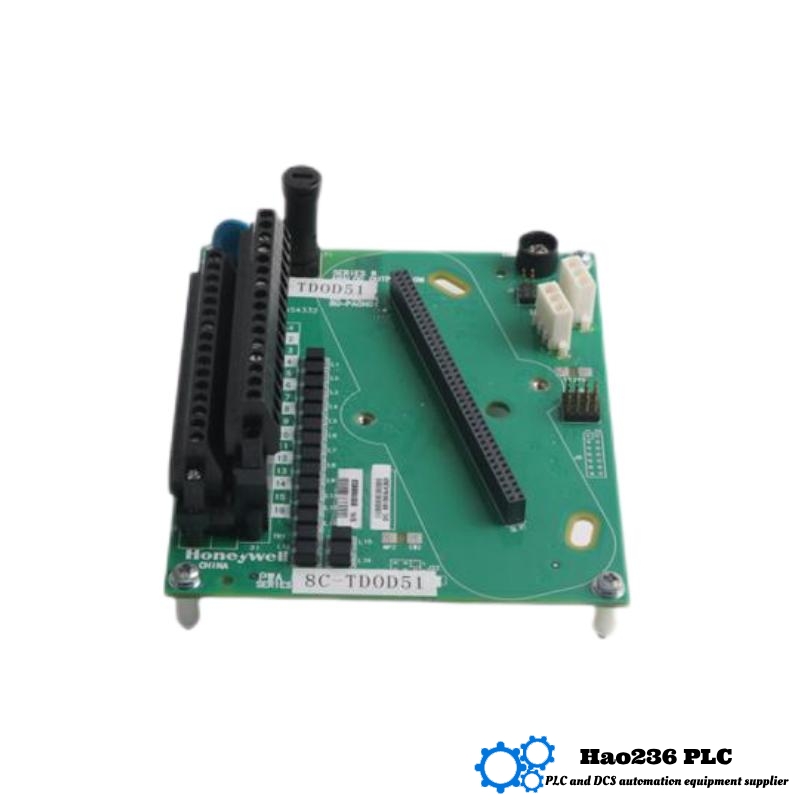

Honeywell 8C-TDOD51 51306075-175 Digital Output Module
Product Introduction:
The Honeywell 8C-TDOD51 51306075-175 is a reliable and highly efficient digital output module designed for industrial control applications. It is part of the Honeywell I/O family and is intended for use in the Experion PKS and C300 controller systems. This module provides 8 channels of digital output with enhanced functionality for controlling and switching field devices such as relays, solenoids, and actuators.
The module supports various load types and offers protection against short circuits, ensuring that your system operates reliably even in demanding environments. It provides an easy-to-integrate solution for your process control needs, with comprehensive diagnostics, high performance, and robust design for continuous operation in harsh industrial conditions.
Parameters:
| Parameter | Value |
|---|---|
| Model | 8C-TDOD51 |
| Output Type | Digital Output |
| Number of Channels | 8 |
| Output Voltage | 24 VDC |
| Max Output Current | 0.5 A per channel |
| Load Type | Resistive/Inductive |
| Response Time | ≤10 ms |
| Isolation | Channel-to-channel isolation |
| Operating Temperature | -20°C to +60°C |
| Mounting Type | DIN Rail |
| Enclosure Rating | IP20 |
| Dimensions (L×W×H) | 120 × 70 × 50 mm |
| Weight | 0.7 kg |
| Certifications | CE, UL, CSA |
Applications:
-
Industrial Automation: Used for controlling industrial actuators, valves, and other devices in a wide range of automation systems.
-
Process Control: Ensures accurate and reliable switching of field devices within process control systems, such as in the chemical, pharmaceutical, and oil & gas industries.
-
Building Management Systems: Controls lighting, HVAC, and other building systems based on input signals from sensors and control systems.
-
Manufacturing: Used for controlling assembly lines and automated manufacturing processes where precise, high-speed switching is required.
Advantages:
-
Compact Design: The small form factor of the 8C-TDOD51 makes it ideal for space-constrained environments while providing powerful functionality.
-
High Channel Density: With 8 channels of digital output in a single module, it optimizes space and reduces wiring complexity in large-scale automation systems.
-
Enhanced Reliability: Designed with industrial-grade durability and robust protection features, including short-circuit protection, ensuring long-term, fault-tolerant operation.
-
Seamless Integration: Fully compatible with Honeywell’s Experion PKS and C300 controllers, allowing for easy system integration.
-
Comprehensive Diagnostics: Provides real-time diagnostics, ensuring that any faults are quickly detected and addressed to minimize downtime.
Brand:
Honeywell is a leader in automation, control, and sensing technologies. The company has built a reputation for delivering high-quality products that meet the most demanding industrial requirements. Honeywell’s innovative solutions, such as the 8C-TDOD51, are designed to improve efficiency, reliability, and safety in industrial applications.
Series:
The 8C-TDOD51 belongs to Honeywell’s C300 Series of digital and analog I/O modules. These modules are known for their robustness, high reliability, and compatibility with Honeywell’s Experion and C300 control systems, providing seamless integration in automation projects.
Related Models from the Same Series:
| Model | Output Type | Channels | Output Voltage | Max Output Current | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 8C-TDOD52 | Digital Output | 8 | 24 VDC | 0.5 A per channel | 120 × 70 × 50 | 0.7 |
| 8C-TDOD53 | Digital Output | 8 | 24 VDC | 1.0 A per channel | 120 × 70 × 50 | 0.7 |
| 8C-TDOD54 | Digital Output | 16 | 24 VDC | 0.5 A per channel | 150 × 90 × 60 | 1.1 |
| 8C-TDOD55 | Digital Output | 8 | 24 VDC | 0.5 A per channel | 120 × 70 × 50 | 0.7 |
| 8C-TDOD56 | Digital Output | 8 | 24 VDC | 1.0 A per channel | 120 × 70 × 50 | 0.7 |
Popular Honeywell Models:
| Model | Function | Type | Channels | Voltage | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 8C-TDILA1 | Analog Input | Analog | 16 | 4–20 mA | 200 × 130 × 90 | 1 |
| 8C-PDIPA1 | Analog Input | Analog | 8 | 4–20 mA | 200 × 130 × 90 | 1 |
| 8C-TDILB1 | Digital Input | Digital | 16 | 24 VDC | 200 × 130 × 90 | 1 |
| 8C-PAIMA1 | Analog Input | Analog | 16 | 4–20 mA | 200 × 130 × 90 | 1.1 |
| 8C-TDILB2 | Digital Input | Digital | 16 | 24 VDC | 200 × 130 × 90 | 1 |
FAQ – Frequently Asked Questions
Q1: What is the voltage range for the Honeywell 8C-TDOD51 module?
A1: The module operates with a 24 VDC output voltage.
Q2: How many output channels are available on the 8C-TDOD51?
A2: This model provides 8 digital output channels.
Q3: Can the 8C-TDOD51 be used in harsh industrial environments?
A3: Yes, it is designed for high reliability in demanding industrial environments and is built with industrial-grade protection features.
Q4: What load types can the module handle?
A4: The module supports both resistive and inductive load types.
Q5: What is the maximum output current per channel?
A5: The maximum output current per channel is 0.5 A.
Q6: Is this module compatible with Honeywell’s Experion PKS?
A6: Yes, it is fully compatible with Honeywell’s Experion PKS and C300 controllers.
Q7: How is the module mounted?
A7: The 8C-TDOD51 is DIN rail mountable for easy installation.
Q8: What is the temperature range for the module?
A8: It operates reliably within the temperature range of -20°C to +60°C.
Q9: Does the module provide diagnostic capabilities?
A9: Yes, it offers comprehensive diagnostics for real-time fault detection and troubleshooting.
Q10: What certifications does the module have?
A10: The 8C-TDOD51 is CE, UL, and CSA certified, meeting global industrial standards.
