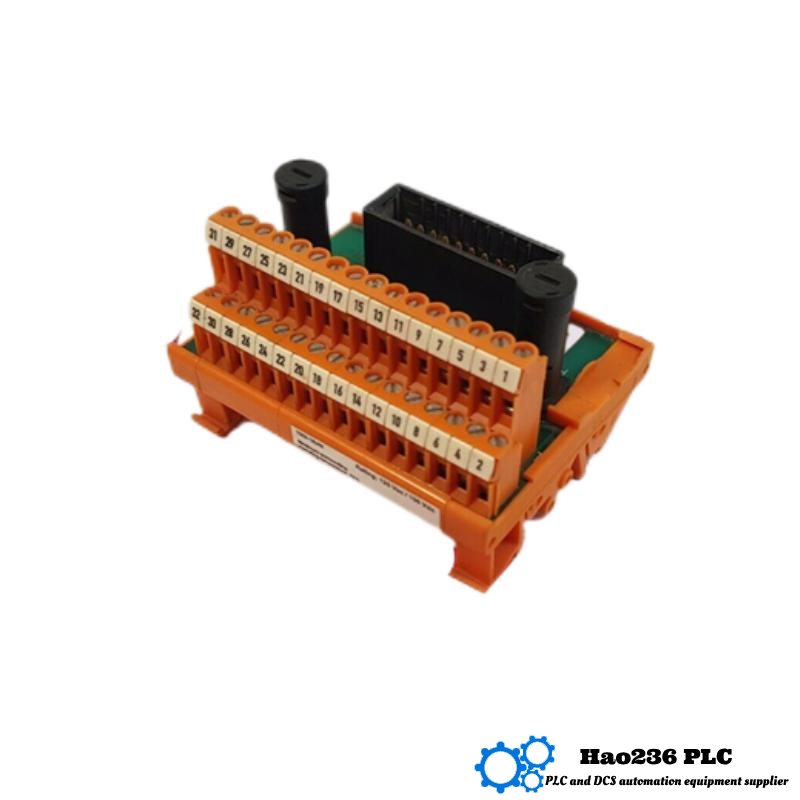

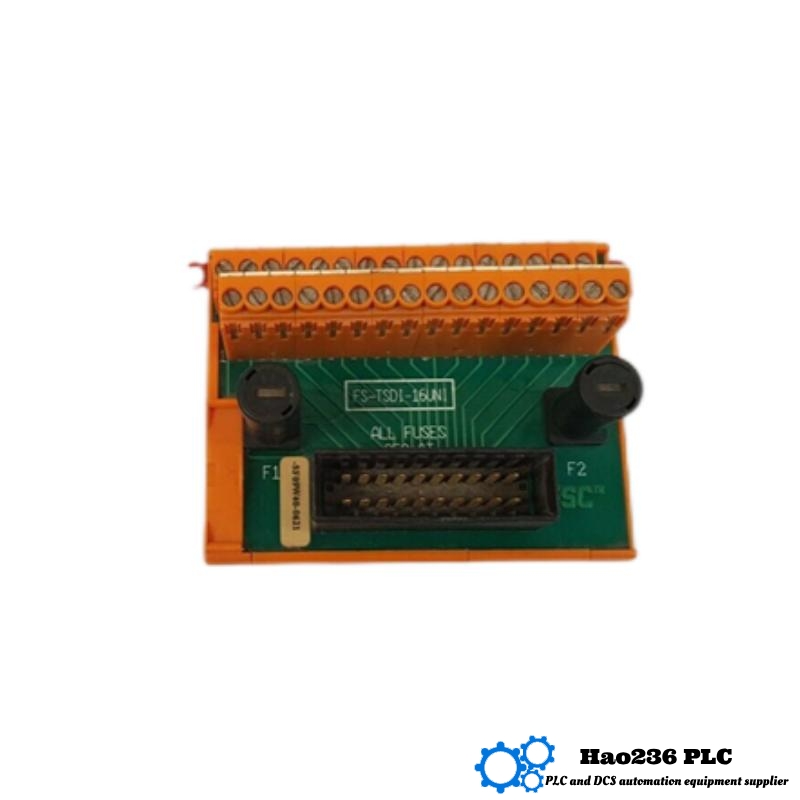

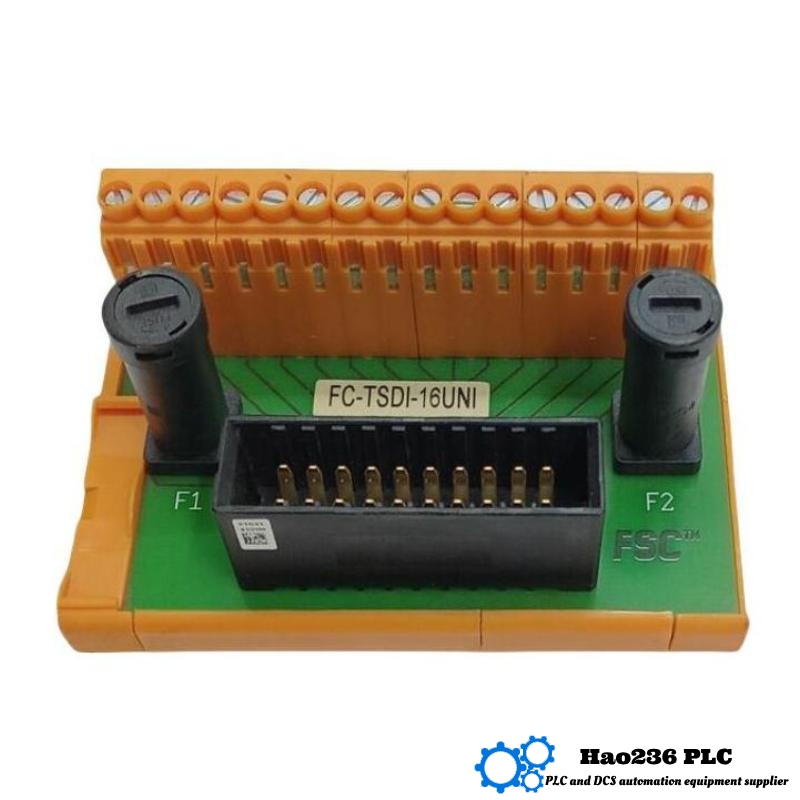

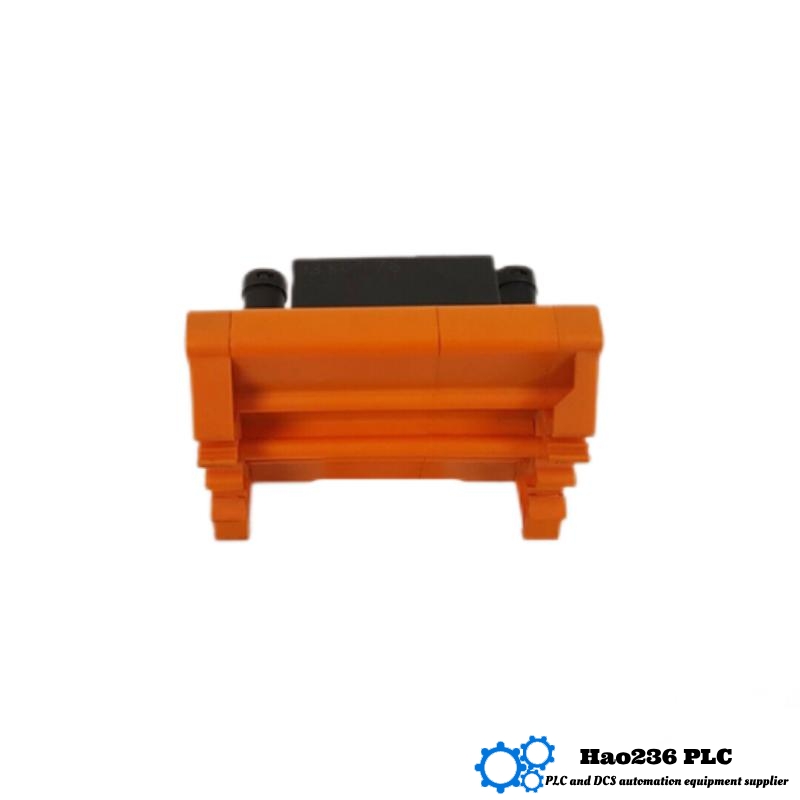

Honeywell FS-TSDI-16UNI Safety Analog Input Module (FTA)

Product Overview

The Honeywell FS-TSDI-16UNI is a Safety Analog Input Module designed for use in high-integrity control systems where safety is a critical requirement. This module is part of Honeywell’s Safety and Control Systems, offering enhanced monitoring and control capabilities for industrial and process applications. It is particularly suited for environments where safety, reliability, and fault tolerance are essential. The FS-TSDI-16UNI supports the integration of up to 16 analog input channels, ensuring that critical data is collected and processed with the highest accuracy and integrity.

This module is part of Honeywell’s Functional Safety Systems, ensuring that your system operates according to strict safety standards such as IEC 61508. With its advanced diagnostics and fault tolerance, the FS-TSDI-16UNI offers real-time monitoring, making it an ideal solution for demanding and hazardous environments. The module’s compatibility with Honeywell’s Experion Safety Manager and other control systems simplifies integration into existing infrastructure.

Key Features and Advantages

• High Safety Integrity: Certified to IEC 61508 and meets SIL 3 requirements, ensuring high levels of safety for critical processes.

• Up to 16 Channels: Provides flexible integration with up to 16 analog input signals, making it ideal for high-density applications.

• Easy Integration: Seamlessly integrates with Honeywell’s Experion Safety Manager for centralized control and monitoring.

• Fault Detection: Built-in diagnostics provide real-time feedback and error detection to maintain system integrity.

• Compact and Robust Design: Despite its high functionality, the module has a compact size (38 x 140 x 211 mm) and is built to withstand harsh industrial environments.

• Scalable: Designed to scale with your needs, allowing easy expansion of input channels as required.

Applications

The FS-TSDI-16UNI module is ideal for a wide range of industrial applications where analog signal inputs need to be safely monitored and controlled. Some common applications include:

• Oil & Gas: Used for controlling safety systems in extraction, refining, and pipeline operations.

• Chemical Processing: Ensures safe operation of chemical plants, controlling critical processes like temperature, pressure, and flow.

• Energy Production: Provides monitoring and control of energy systems, including power generation, transmission, and distribution.

• Pharmaceutical Manufacturing: Critical in the production of pharmaceuticals, where process safety and quality control are key.

• Industrial Automation: Supports high safety and automation levels in manufacturing processes, ensuring equipment and worker safety.

Technical Specifications

Product Advantages

• High Performance: Capable of handling up to 16 analog input channels simultaneously, providing reliable, high-quality data.

• Safety Certified: Meets the highest safety standards, ensuring safe operation in critical environments with compliance to IEC 61508 SIL 3.

• Diagnostics and Fault Tolerance: Includes advanced diagnostics and fault detection capabilities to ensure the integrity of the safety system.

• Compact Design: Despite its high functionality, the FS-TSDI-16UNI has a compact and space-efficient design, making it easy to integrate into existing control systems.

• Cost-Effective: Reduces the need for additional safety components by consolidating multiple input channels in a single, easy-to-maintain module.

• Reliable Operation: Built to withstand harsh industrial conditions, the FS-TSDI-16UNI offers reliable operation with minimal maintenance.
