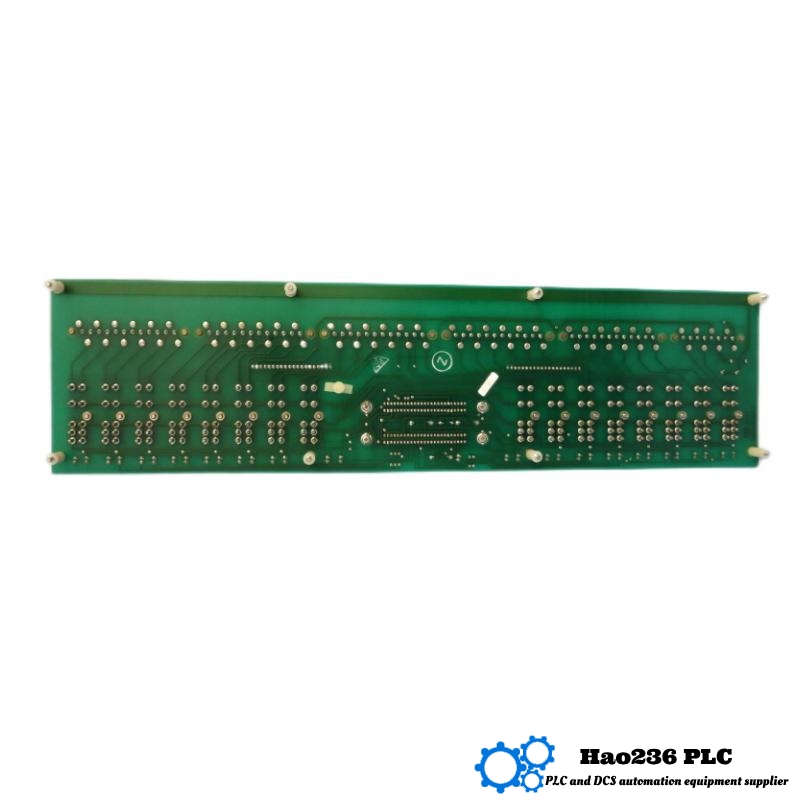

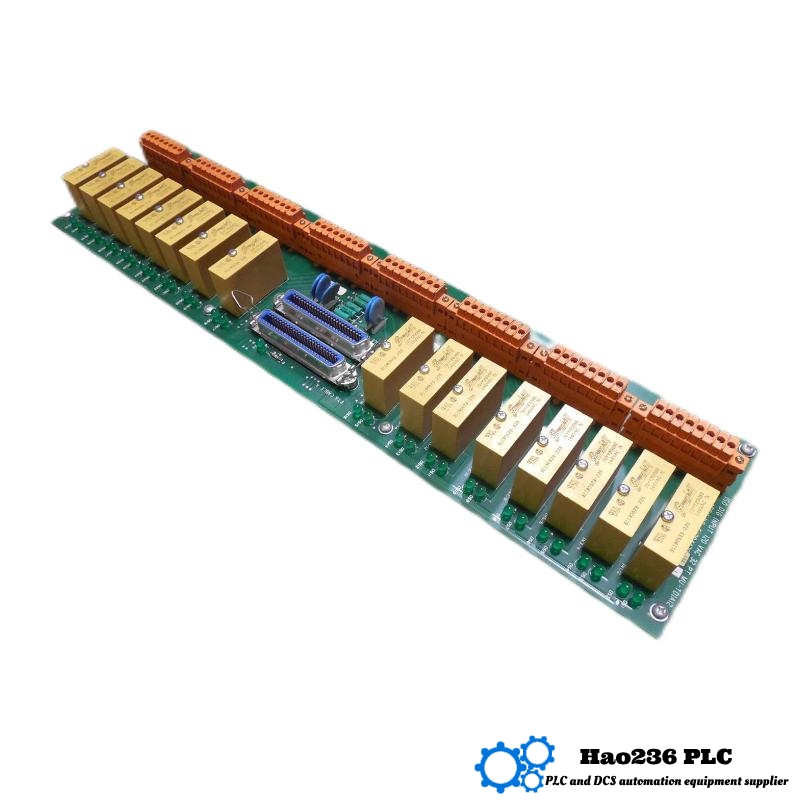

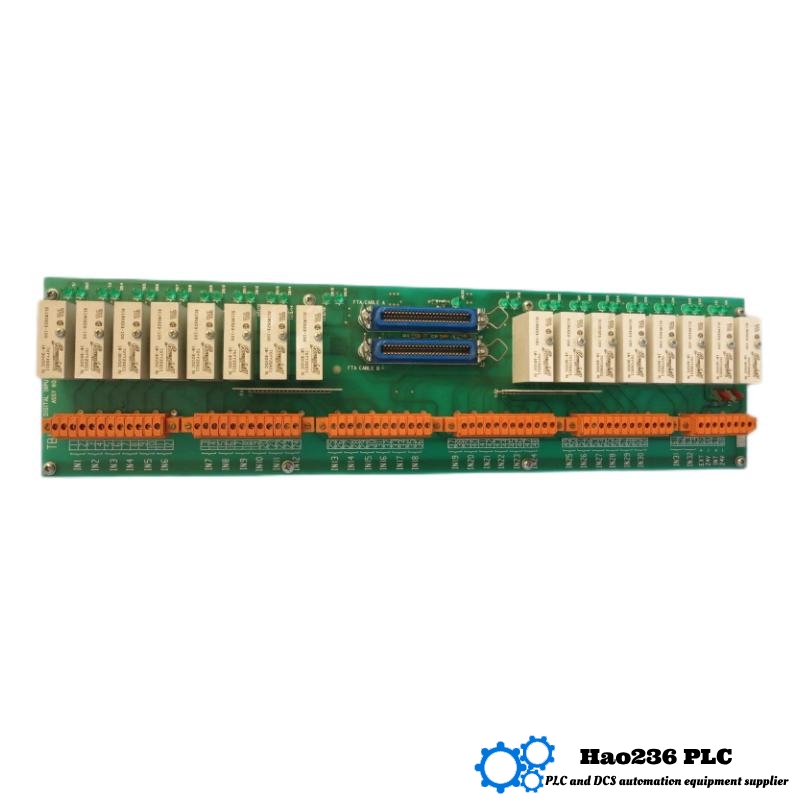

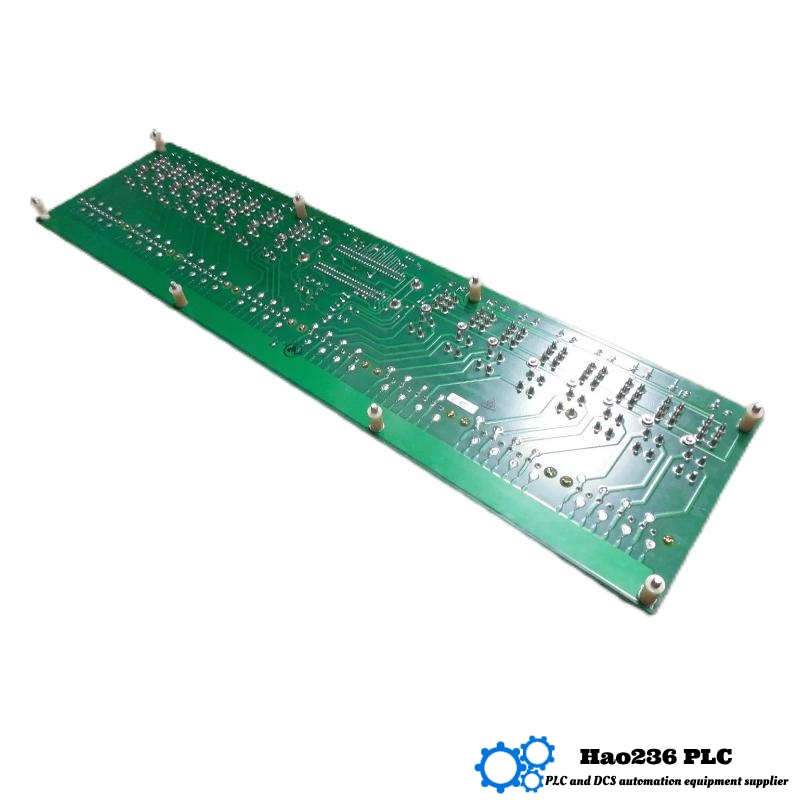

Honeywell MU-TDIA12 51304439-100 Digital Input Module with Compression Terminals
Product Overview:
The Honeywell MU-TDIA12 51304439-100 is a cutting-edge Digital Input Module designed for use in industrial environments that require precise and reliable data acquisition. This module is engineered with compression terminals for secure wiring, making it a highly dependable component in automation and control systems. It is part of Honeywell’s MU Series and offers a robust solution for monitoring digital inputs such as relays, switches, and other contact-type devices.
The MU-TDIA12 supports high-channel digital input processing, making it ideal for systems that require accurate monitoring of digital signals from various sources. It is particularly suitable for applications in industrial control, process automation, energy management, and factory automation. With a simple installation process and powerful capabilities, this module is an excellent addition to any monitoring or control setup.
Key Features and Specifications:
| Parameter | Description |
|---|---|
| Dimensions | 462.3 x 120.7mm |
| Shipping Weight | 1 kg |
| Input Type | Digital Input (contact closures, relays) |
| Number of Channels | 12 channels |
| Voltage Rating | 24 VDC |
| Input Signal Voltage | 0 to 24 VDC |
| Current Consumption | 35 mA (typical) |
| Mounting Type | DIN rail or panel mounting |
| Response Time | Fast response for real-time monitoring |
| Communication | RS-485 or Modbus for seamless integration |
| Protection Rating | IP20 |
| Terminal Type | Compression terminals for secure connections |
Applications:
The Honeywell MU-TDIA12 digital input module is designed to operate in various industrial and process control environments. It is widely used in:
-
Automation Systems: The MU-TDIA12 is ideal for industrial automation, where it monitors input signals from sensors, switches, and relays to control equipment operations.
-
Control Systems: In control applications, it processes digital inputs for monitoring the status of machinery, pumps, and valves in real-time.
-
Energy Management: The module can be integrated into energy systems to monitor the status of critical equipment and energy meters, enabling optimized energy use.
-
Building Management Systems: The MU-TDIA12 is perfect for managing building automation, including HVAC systems, security systems, and lighting control.
-
Manufacturing and Process Control: In factories and manufacturing plants, the module is used for monitoring the state of machines, conveyors, and other critical production equipment.
-
Safety and Security: It is also used in safety monitoring systems to detect and respond to changes in system status, such as alarm triggers from fire or security systems.
Advantages:
-
Compression Terminals for Secure Connections: The MU-TDIA12 utilizes compression terminals, ensuring secure and reliable connections, which minimize the risk of loose connections or signal interference.
-
Wide Input Range: With an input voltage range of 0-24 VDC, the module supports a variety of digital input devices, offering flexibility for different application needs.
-
Multi-Channel Input: The MU-TDIA12 provides 12 input channels, allowing you to monitor multiple digital signals from various devices simultaneously.
-
Compact and Easy to Install: With dimensions of 462.3 x 120.7mm, the module fits easily into standard DIN rail systems, saving space and simplifying installation.
-
High Compatibility: The module supports both RS-485 and Modbus communication protocols, enabling seamless integration into various industrial control and automation systems.
-
Fast Response Time: The module is designed for quick processing of digital input signals, providing real-time feedback for industrial systems that require immediate response.
-
Durable and Reliable: Built to withstand harsh industrial conditions, the MU-TDIA12 has an IP20 protection rating, making it suitable for demanding environments.
-
Cost-Effective Solution: The module provides an affordable solution for expanding digital input capabilities, reducing the need for multiple components and improving system efficiency.
Brand and Series:
-
Brand: Honeywell
Recommended Related Models (Same Series or Related):
| Model Number | Description | Key Features |
|---|---|---|
| MU-TDIA10 | Digital Input Module | 10-channel digital input module with secure connections. |
| MU-TDIA11 | Digital Input Module with Isolation | Supports 11 channels with isolation for sensitive environments. |
| MU-TDIA13 | Extended Digital Input Module | Extended version of the MU-TDIA12 with 16 channels. |
| MU-TDIA14 | Compact Digital Input Module | Smaller form factor with 8 input channels for space-constrained installations. |
| MU-TDIA15 | High-Speed Digital Input Module | Faster response times for high-speed data acquisition and processing. |
| MU-TDIA16 | Multi-Signal Digital Input Module | Multi-signal module supporting both digital and analog inputs. |
Recommended Honeywell Models (Same Brand, Popular Models):
| Model Number | Description | Key Features |
|---|---|---|
| MU-TDIA17 | Multi-Channel Digital Input Module | Supports up to 24 digital input channels. |
| MU-TDIA18 | Industrial Input Monitoring Module | Designed for industrial input processing in harsh environments. |
| MU-TDIA19 | Extended Input Monitoring Module | Expands input capabilities with up to 48 channels. |
| MU-TDIA20 | Data Acquisition Digital Module | Features high-resolution data acquisition for precision measurements. |
| MU-TDIA21 | Advanced Digital Input Module | Advanced features like signal filtering and diagnostics. |
| MU-TDIA22 | Low-Voltage Digital Input Module | Optimized for low-voltage applications and sensitive environments. |
FAQ (Frequently Asked Questions):
Q1: What is the input voltage range for the MU-TDIA12 module?
A1: The MU-TDIA12 module supports an input voltage range from 0 to 24 VDC.
Q2: How many channels does the MU-TDIA12 module support?
A2: The module supports up to 12 digital input channels.
Q3: What kind of devices can be connected to the MU-TDIA12 module?
A3: The module can be connected to digital input devices such as switches, relays, and contact closures.
Q4: What is the power consumption of the MU-TDIA12 module?
A4: The typical current consumption is 35 mA.
Q5: What is the protection rating of the MU-TDIA12?
A5: The module has an IP20 protection rating.
Q6: How can the MU-TDIA12 be mounted?
A6: The module can be mounted on a DIN rail or directly to a panel.
Q7: Does the MU-TDIA12 module support communication protocols?
A7: Yes, it supports RS-485 and Modbus communication protocols.
Q8: What is the shipping weight of the MU-TDIA12 module?
A8: The shipping weight is 1 kg.
Q9: What is the typical application for the MU-TDIA12 module?
A9: The module is typically used in automation, process control, energy management, and industrial monitoring systems.
Q10: Is the MU-TDIA12 module suitable for use in harsh industrial environments?
A10: Yes, the module is designed to withstand industrial environments with its IP20 protection rating.
