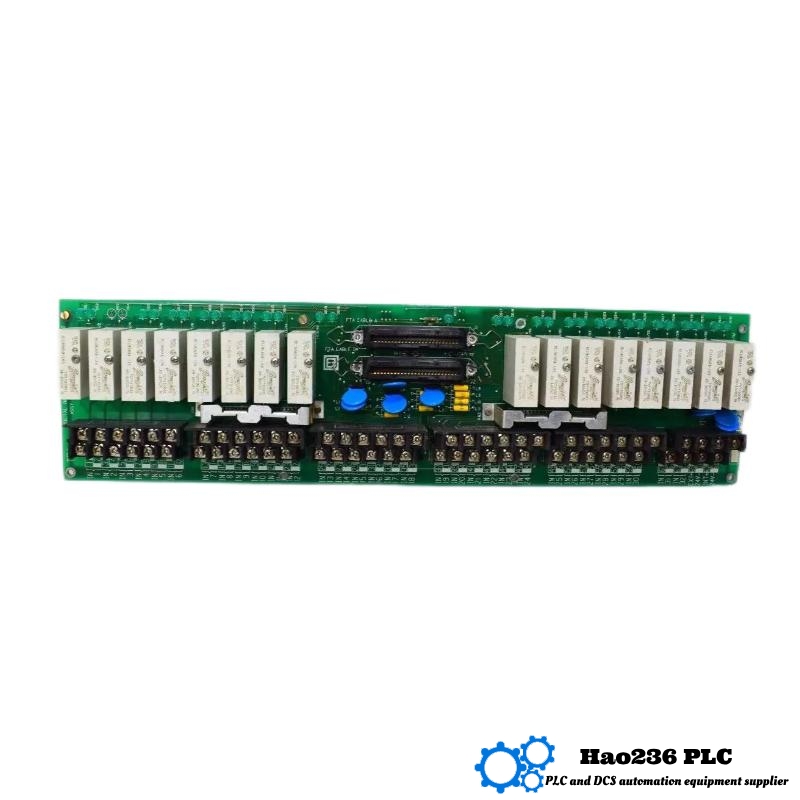

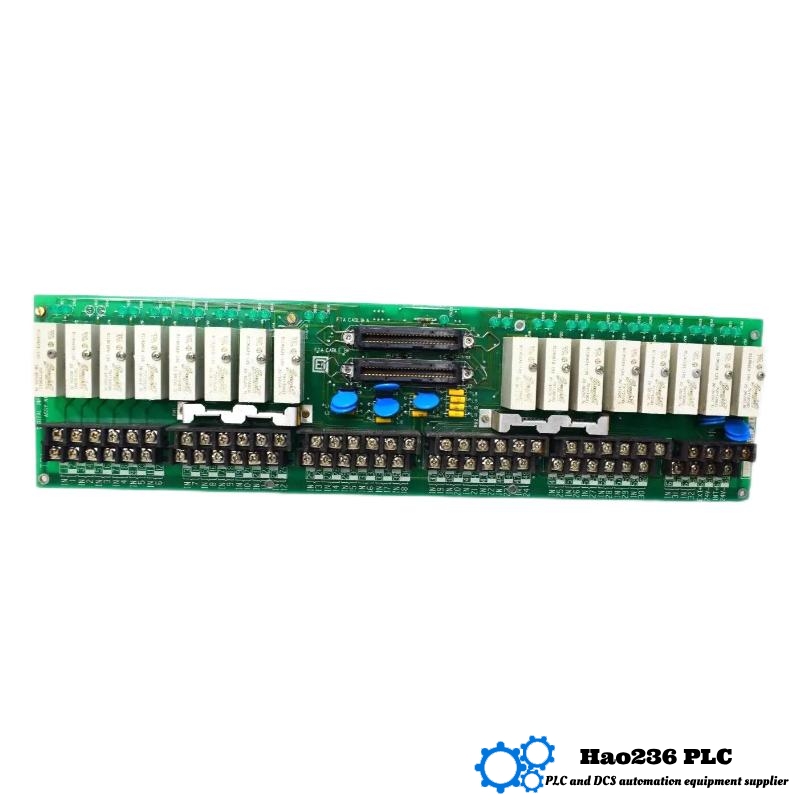

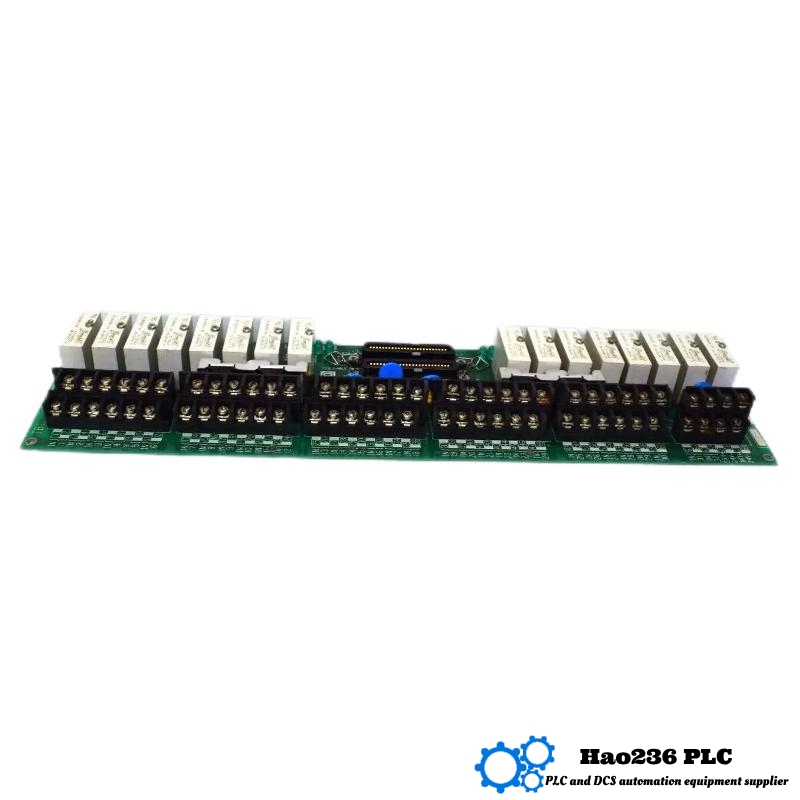

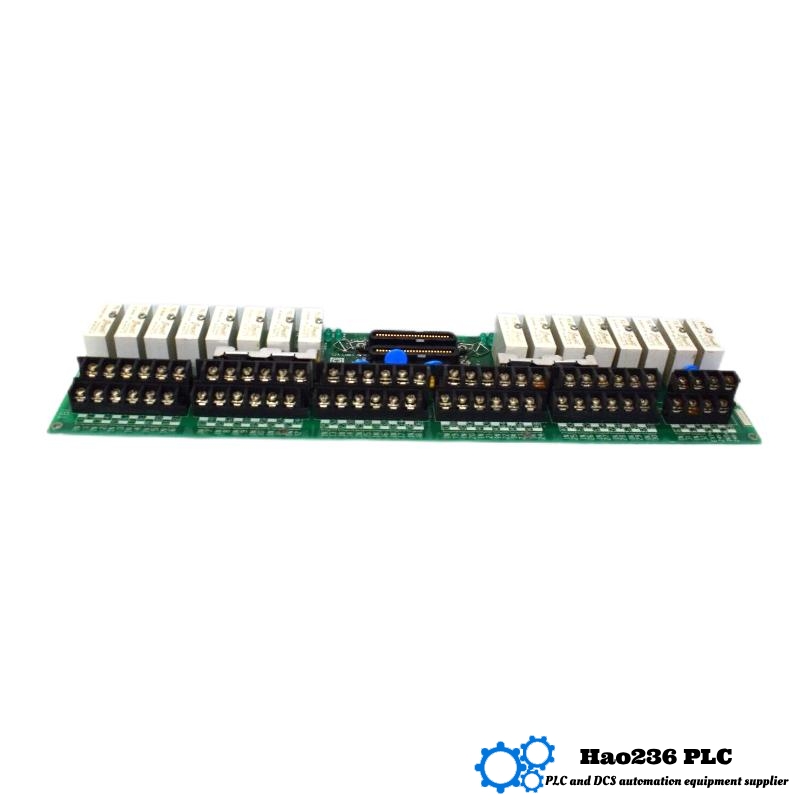

Honeywell MU-TDID52 51304441-200 Digital Input Field Termination Assembly

Product Overview:

The Honeywell MU-TDID52 51304441-200 is a highly reliable Digital Input Field Termination Assembly designed for use in industrial automation and control systems. This product is built to provide convenient and secure termination of field wiring for digital input devices such as switches, relays, and other contact-based signals. The MU-TDID52 is part of Honeywell’s MU series and is ideal for environments where secure field wiring connections are critical.

This termination assembly simplifies the process of integrating digital input signals into your control system by providing a dedicated interface that facilitates easy wiring and connection. With 12 input channels, the module is designed to handle multiple signals simultaneously, ensuring smooth and efficient data acquisition.

Key Features and Specifications:

Applications:

The Honeywell MU-TDID52 Digital Input Field Termination Assembly is suitable for use in a wide variety of industrial and control applications, such as:

1. Industrial Automation Systems: The module facilitates easy connection of digital inputs from field devices like relays, sensors, and switches into automation systems.

2. Process Control: Ideal for process control applications where reliable monitoring of digital signals is required to ensure the correct operation of machinery and processes.

3. Energy Management: This module can be used to monitor energy consumption data through digital input signals from energy meters and other power monitoring devices.

4. Building Management Systems (BMS): Common in HVAC, lighting control, and security systems where reliable field wiring is essential for controlling and monitoring building operations.

5. Manufacturing and Production: Used in factories for monitoring the status of critical machinery, conveyors, and other industrial equipment.

6. Safety Systems: Can be part of safety-critical systems where inputs from safety devices need to be securely processed and monitored for quick response times.

Advantages:

1. Secure and Reliable Connections: The MU-TDID52 offers compression terminal connections, which ensure secure and reliable field wiring, minimizing the risk of loose connections and signal interference.

2. Efficient Integration: The termination assembly simplifies the process of wiring and connecting digital input devices, saving installation time and reducing complexity.

3. Wide Input Voltage Range: With an input voltage range of 0-24 VDC, the module is compatible with a variety of digital input devices, making it a versatile solution for different applications.

4. Durable and Robust: The IP20 protection rating ensures the module can withstand the environmental conditions of industrial settings, offering longevity and reliability in harsh environments.

5. Compact Design: With dimensions of 462.3 x 120.7mm, the module fits easily into standard DIN rail systems, which helps save space and improves ease of installation.

6. Multiple Channels: Offering 12 input channels, the MU-TDID52 allows for efficient monitoring and processing of multiple digital input signals at the same time.

7. Fast Response Time: The module processes signals quickly, ensuring that your system responds in real-time to changes in input conditions.

8. Cost-Effective Solution: By integrating field termination into a single unit, the MU-TDID52 eliminates the need for multiple components, providing a cost-effective and simplified solution for digital input integration.

Brand and Series:

• Brand: Honeywell
