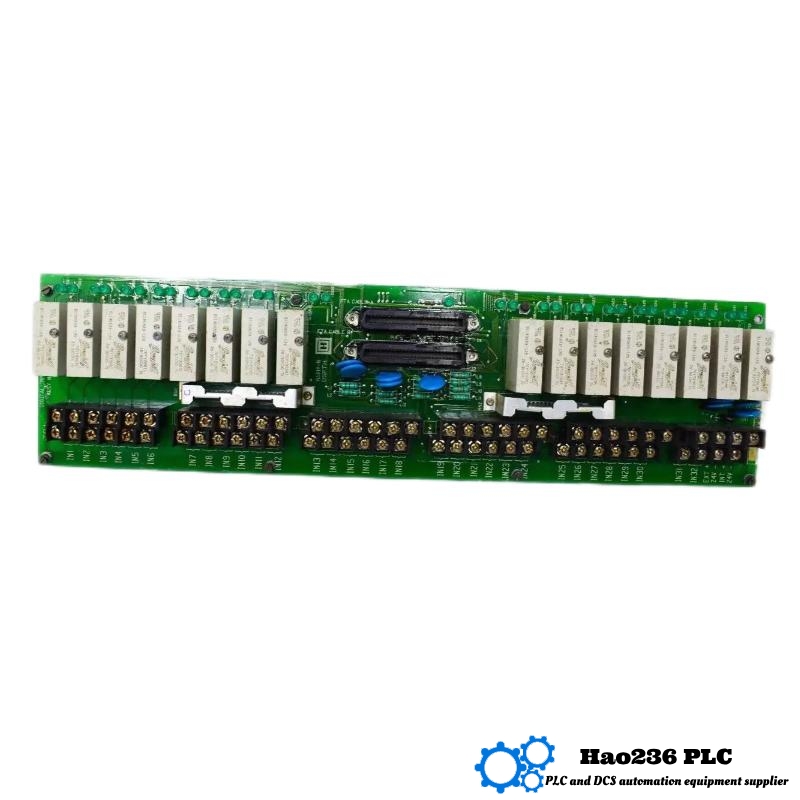

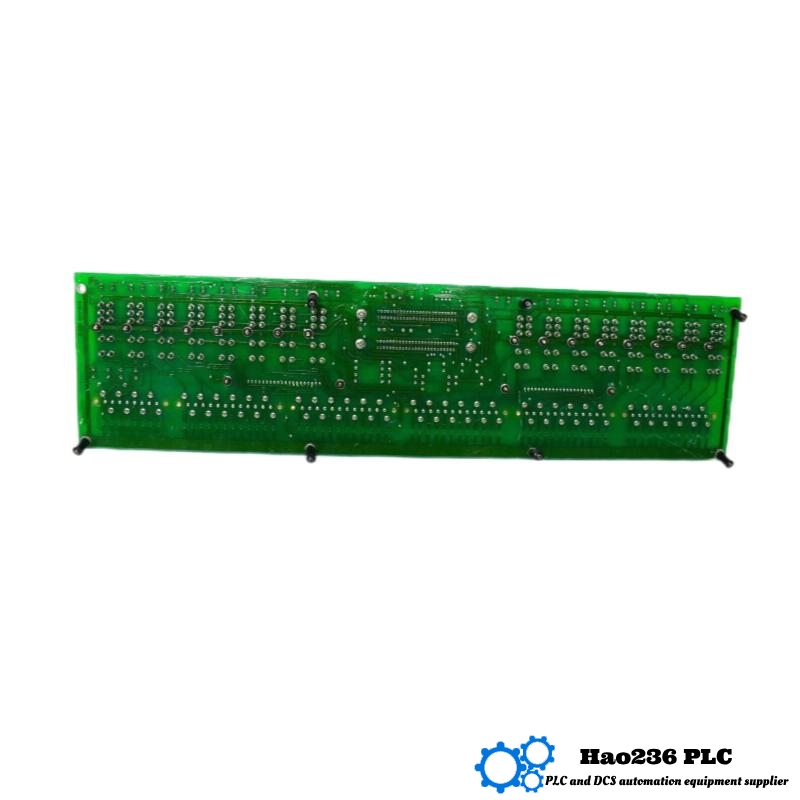

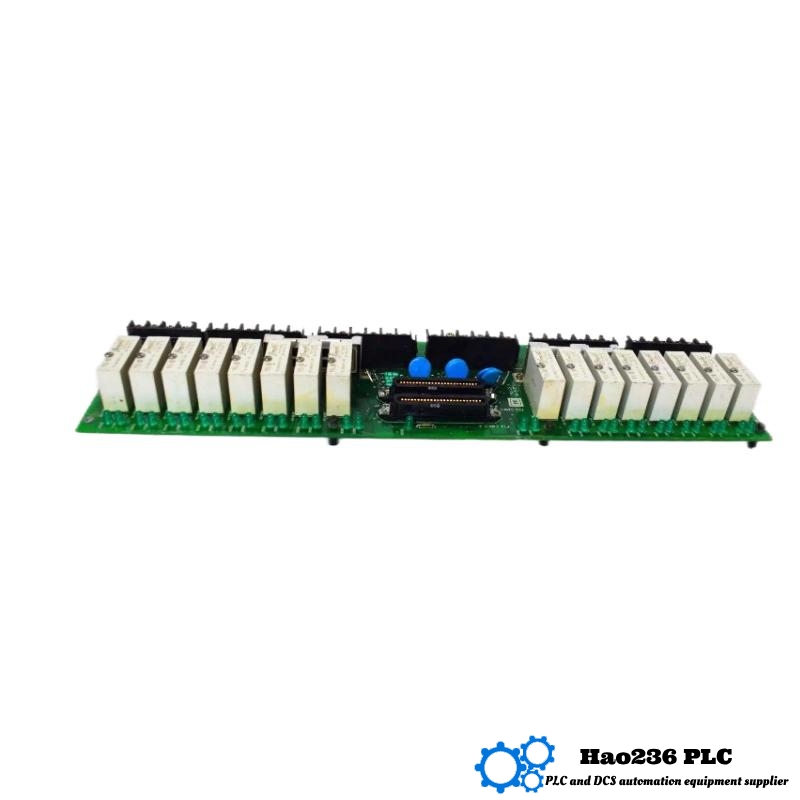

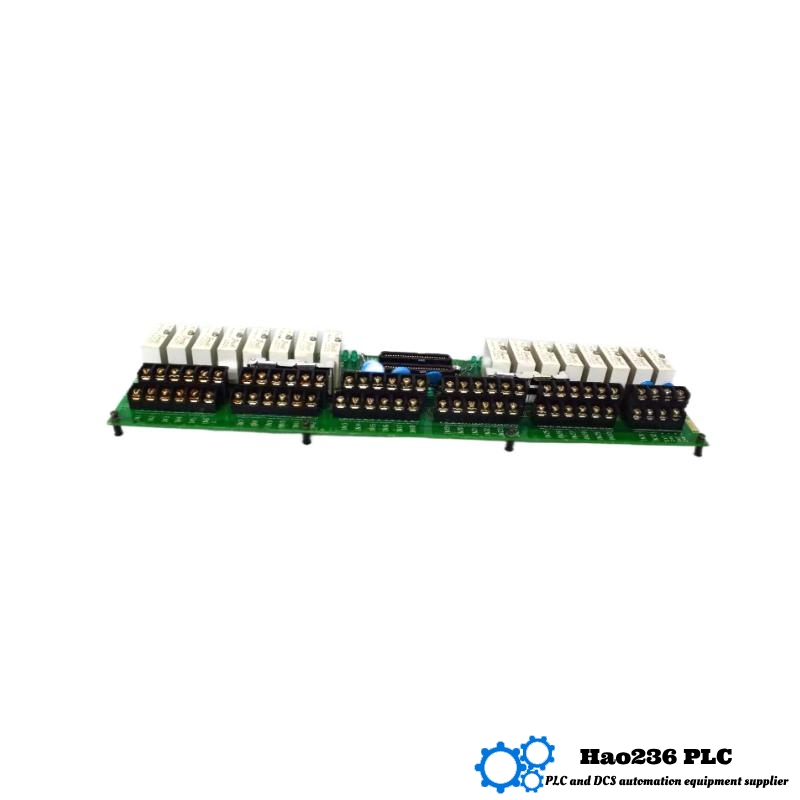

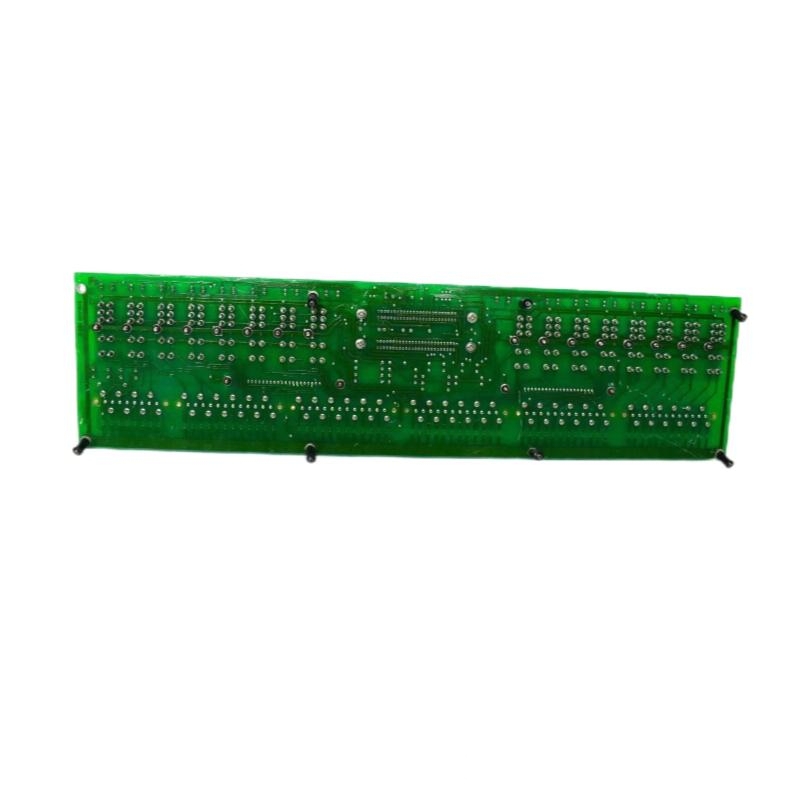

Honeywell MU-TDID52 51304441-225 Digital Input Field Termination Assembly
Product Overview:
The Honeywell MU-TDID52 51304441-225 is a Digital Input Field Termination Assembly that enables seamless integration of field digital input devices into automation and control systems. It is designed for use in industrial applications that require reliable and secure termination of input signals from devices such as relays, switches, and sensors. With a robust design, the MU-TDID52 simplifies wiring, reduces the potential for errors, and ensures a reliable connection.
This module provides 12 digital input channels and is particularly useful for monitoring and controlling equipment in various industries, including manufacturing, energy management, and process control systems. It features a durable construction that is built to withstand the rigors of industrial environments.
Key Features and Specifications:
| Parameter | Description |
|---|---|
| Model Number | MU-TDID52 51304441-225 |
| Dimensions | 462.3 x 120.7mm |
| Shipping Weight | 0.68 kg |
| Input Channels | 12 channels |
| Signal Type | Digital Input (contact closures, relays) |
| Voltage Rating | 24 VDC |
| Current Consumption | 35 mA (typical) |
| Mounting | DIN rail or panel mounting |
| Protection Rating | IP20 |
| Response Time | Fast response time for reliable monitoring |
| Terminals | Compression terminals for secure wiring |
| Input Voltage Range | 0 to 24 VDC |
| Terminal Type | Compression terminals for secure wiring |
Applications:
The Honeywell MU-TDID52 51304441-225 Digital Input Field Termination Assembly is ideal for a variety of industrial applications:
-
Industrial Automation: Connecting field devices like relays, switches, and sensors into control systems for process automation.
-
Manufacturing: Used for monitoring and controlling production lines, equipment, and machinery in manufacturing environments.
-
Energy Management: Gathering input signals from energy meters, sensors, and other devices in energy management systems.
-
Building Management Systems (BMS): Controlling HVAC, lighting, and security systems with reliable digital input signals.
-
Process Control: Monitoring digital signals from machines and equipment in process control applications.
-
Safety Systems: Ensures accurate monitoring of safety inputs such as emergency shutoff systems, alarms, and sensors.
Advantages:
-
Secure Connections: Features compression terminals that provide a reliable, secure connection to input devices, ensuring consistent signal transmission.
-
High-Quality Design: Built to withstand industrial environments with IP20 protection, ensuring durability in demanding conditions.
-
Flexible Mounting Options: Can be mounted on a DIN rail or directly on a panel for easy installation in various setups.
-
Wide Voltage Range: The module supports a 0 to 24 VDC input voltage range, making it suitable for a variety of digital input devices.
-
Fast Response Time: Delivers reliable and quick response times, ideal for systems that require immediate processing of digital signals.
-
Compact Size: With dimensions of 462.3 x 120.7mm, the module fits easily into tight spaces in control panels and other confined areas.
-
Cost-Effective: Reduces the need for multiple components by integrating multiple functions into a single unit, saving both time and money in installation.
Recommended Related Models:
| Model Number | Description | Key Features |
|---|---|---|
| MU-TDID51 | Digital Input Field Termination Assembly | 8 channels, designed for smaller systems |
| MU-TDID53 | Extended Digital Input Termination Assembly | 16 channels, ideal for larger industrial applications |
| MU-TDID54 | Compact Digital Input Module | Smaller form factor, fits in confined spaces |
| MU-TDID55 | Digital Input Termination with Isolated Channels | Provides isolation between inputs |
| MU-TDID56 | Multi-Signal Termination Assembly | Supports both digital and analog signals |
| MU-TDID57 | High-Speed Digital Input Termination Module | Faster processing for high-demand applications |
Popular Honeywell Models:
| Model Number | Description | Key Features |
|---|---|---|
| MU-TDID10 | Digital Input Module | Basic input module for small systems with limited input needs |
| MU-TDID20 | Industrial Digital Input Monitoring Module | Advanced signal filtering for industrial environments |
| MU-TDID30 | Advanced Field Termination Module | Handles high-voltage and high-current applications |
| MU-TDID40 | Compact Digital I/O Module | Combines digital and analog inputs in a compact design |
| MU-TDID50 | Field I/O Termination with Signal Isolation | Isolates signals for sensitive environments |
| MU-TDID60 | High-Density Digital Input Module | 24 input channels for large-scale applications |
FAQ (Frequently Asked Questions):
Q1: What is the input voltage range for the MU-TDID52 module?
A1: The MU-TDID52 module supports an input voltage range of 0 to 24 VDC.
Q2: How many input channels does the MU-TDID52 have?
A2: The module has 12 digital input channels.
Q3: What types of devices can be connected to the MU-TDID52 module?
A3: The module can connect devices such as relays, switches, and other contact-based input signals.
Q4: What is the protection rating of the MU-TDID52?
A4: The module has an IP20 protection rating.
Q5: How is the MU-TDID52 mounted?
A5: The module can be mounted on a DIN rail or directly on a panel.
Q6: What type of terminals does the MU-TDID52 use?
A6: The module uses compression terminals, which ensure secure wiring connections.
Q7: What is the shipping weight of the MU-TDID52?
A7: The shipping weight of the module is 0.68 kg.
Q8: Can the MU-TDID52 handle high-speed inputs?
A8: Yes, the MU-TDID52 has a fast response time for real-time input processing.
Q9: Is the MU-TDID52 suitable for harsh industrial environments?
A9: Yes, the module is designed for use in industrial settings and can withstand challenging environments with its rugged construction.
Q10: Can I use the MU-TDID52 in low-voltage applications?
A10: Yes, the MU-TDID52 is ideal for low-voltage applications, operating within the 0-24 VDC range.
