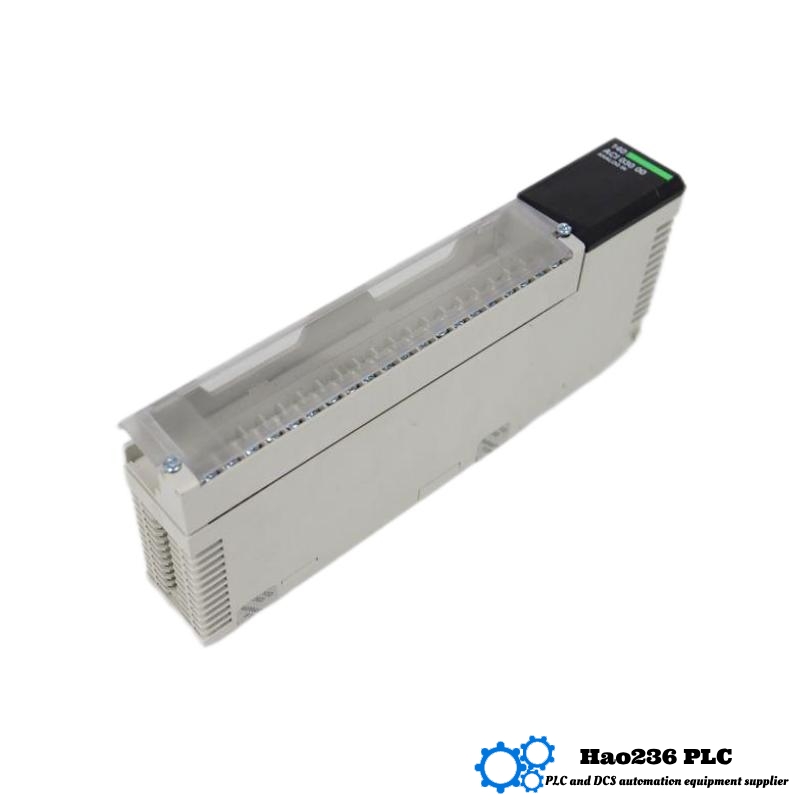

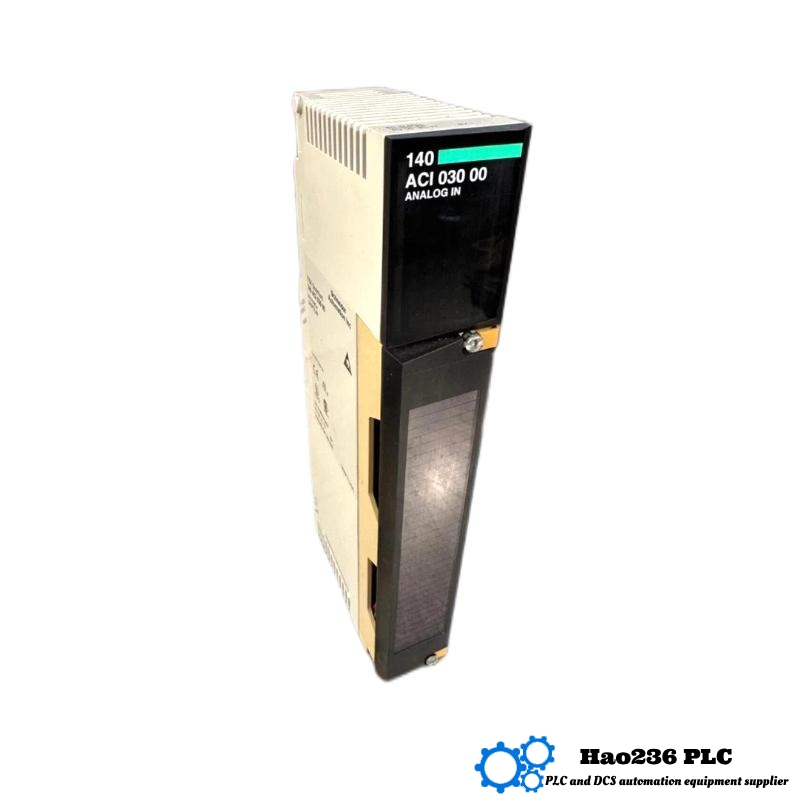

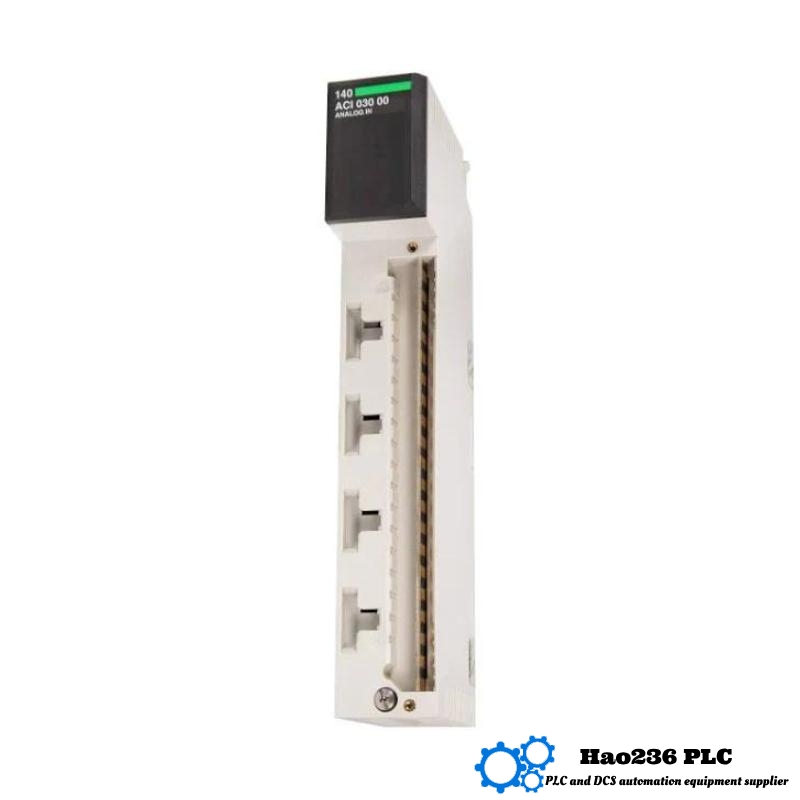

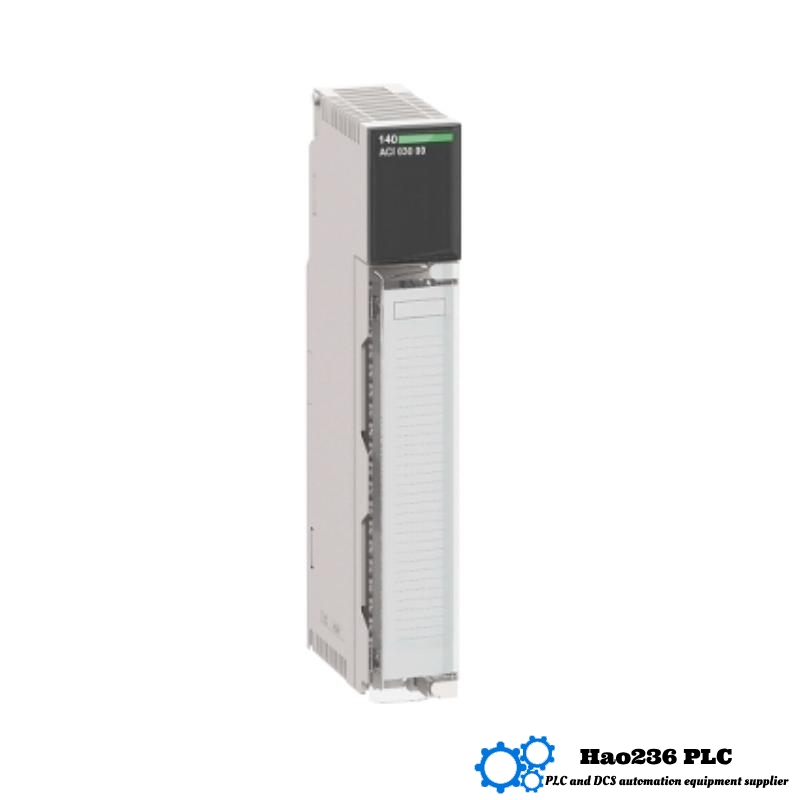

Schneider 140ACI03000 Product Overview
Product Name: Schneider 140ACI03000
Brand: Schneider Electric
Series: Modicon Quantum
Product Type: Analog Input Module
Product Parameters
| Parameter | Description |
|---|---|
| Part Number | 140ACI03000 |
| Product Type | Analog Input Module |
| Input Channels | 8 isolated analog input channels |
| Input Signal Type | 4-20 mA DC |
| Resolution | 15-bit |
| Conversion Time | 1 ms per channel |
| Input Impedance | 250 ohms |
| Isolation | 500V AC (channel-to-channel and channel-to-ground) |
| Power Supply | 24 VDC |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Protection Class | IP20 |
| Mounting Type | Rack-mounted |
| Dimensions | 103.9 x 40.3 x 250 mm (L x W x H) |
| Weight | 0.3 kg |
| Compatible PLCs | Modicon Quantum PLC series |
Product Introduction
The Schneider 140ACI03000 is a high-performance analog input module designed specifically for Schneider Electric’s Modicon Quantum PLC series. With 8 isolated analog input channels, it allows for precise signal measurement in industrial applications. The module supports 4-20 mA DC current inputs, making it suitable for a wide range of analog signal acquisition tasks.
Featuring a 15-bit resolution, the module ensures high-accuracy data processing with a conversion time of 1 ms per channel, making it ideal for real-time industrial systems. Additionally, its 500V AC isolation protects against electrical interference, ensuring reliable signal acquisition.
Designed to be rack-mounted, the 140ACI03000 integrates seamlessly with Modicon Quantum PLCs, making it an essential component for automation control systems. The module operates within a temperature range of 0°C to 60°C, ensuring stable performance in various industrial environments.
Product Applications
- Process Control: The 140ACI03000 is ideal for applications where accurate measurement of process variables such as temperature, pressure, and flow is critical.
- Manufacturing Automation: It is widely used in industrial machinery, robotics control, and production line monitoring, offering precise analog signal input.
- Energy & Power Plants: This module is used to monitor and control critical power generation systems and energy management applications.
- Oil & Gas: It is suitable for monitoring pumps, compressors, and other equipment in oil and gas facilities.
- Water Treatment: Water quality monitoring and flow rate control are examples of applications where the 140ACI03000 excels.
Product Advantages
-
High Accuracy
- With 15-bit resolution, this module ensures precise measurements even in complex industrial systems.
-
Fast Conversion
- The module provides 1 ms per channel conversion time, ensuring real-time data processing for fast-paced applications.
-
Isolation Protection
- Offers 500V AC isolation, protecting the system from electrical noise and surges for reliable and secure operation.
-
Compact and Lightweight
- The small size (103.9 x 40.3 x 250 mm) and light weight (0.3 kg) make it easy to integrate into existing systems without taking up excessive space.
-
Seamless Integration
- Fully compatible with the Modicon Quantum PLC series, the module integrates effortlessly into automation systems.
-
Wide Temperature Range
- Designed to operate from 0°C to 60°C, the 140ACI03000 can withstand harsh industrial conditions and maintain reliable performance.
-
Durability
- The module is built for rugged industrial environments, providing long-term reliability in a wide range of applications.
Recommended Similar Models from the Modicon Quantum Series
| Model | Input Type | Channels | Resolution | Isolation | Dimensions (mm) | Weight |
|---|---|---|---|---|---|---|
| 140ACI03000 | Analog (4-20mA) | 8 | 15-bit | 500V AC | 103.9 x 40.3 x 250 | 0.3 kg |
| 140ACI04000 | Analog (4-20mA) | 16 | 12-bit | 500V AC | 160 x 40 x 125 | 0.45 kg |
| 140ACI05100 | Analog (0-10V) | 8 | 16-bit | 500V AC | 160 x 40 x 125 | 0.42 kg |
| 140ACO02000 | Analog Output (4-20mA) | 4 | 15-bit | 500V AC | 160 x 40 x 120 | 0.38 kg |
| 140ACI06000 | Analog (RTD) | 6 | 16-bit | 500V AC | 160 x 40 x 128 | 0.43 kg |
Recommended Popular Schneider Models
| Model | Type | Channels | Resolution | Power Supply | Dimensions (mm) | Weight |
|---|---|---|---|---|---|---|
| 140CRA93100 | Communication Adapter | N/A | N/A | 24 VDC | 150 x 40 x 110 | 0.35 kg |
| 140CPS11420 | Power Supply Module | N/A | N/A | 125 VDC | 170 x 50 x 130 | 0.6 kg |
| 140CPU65150 | Processor Module | N/A | N/A | 24 VDC | 190 x 60 x 140 | 0.8 kg |
| 140DAI55300 | Digital Input | 16 | N/A | 24 VDC | 160 x 40 x 125 | 0.45 kg |
| 140DDI84100 | Discrete Input | 32 | N/A | 24 VDC | 160 x 40 x 130 | 0.5 kg |
Product FAQs
Q1: What is the main function of the Schneider 140ACI03000?
A1: It is an analog input module used for measuring 4-20mA signals in industrial automation systems.
Q2: How many input channels does it have?
A2: The module has 8 isolated analog input channels.
Q3: What is the resolution of the module?
A3: The module has a 15-bit resolution for precise signal measurement.
Q4: What is the input impedance of the module?
A4: The input impedance is 250 ohms.
Q5: Can it be used with Modicon Quantum PLCs?
A5: Yes, it is fully compatible with Schneider Modicon Quantum PLCs.
Q6: What is the operating temperature range?
A6: The module operates between 0°C and 60°C.
Q7: Does it provide isolation protection?
A7: Yes, it has 500V AC isolation for both channel-to-channel and channel-to-ground protection.
Q8: What is the power supply voltage for the 140ACI03000?
A8: It operates with a 24 VDC power supply.
Q9: What is the weight of the module?
A9: The module weighs 0.3 kg.
Q10: Is it easy to install?
A10: Yes, it is designed for rack-mounted installation in the Modicon Quantum PLC rack, making it easy to integrate into existing systems.
