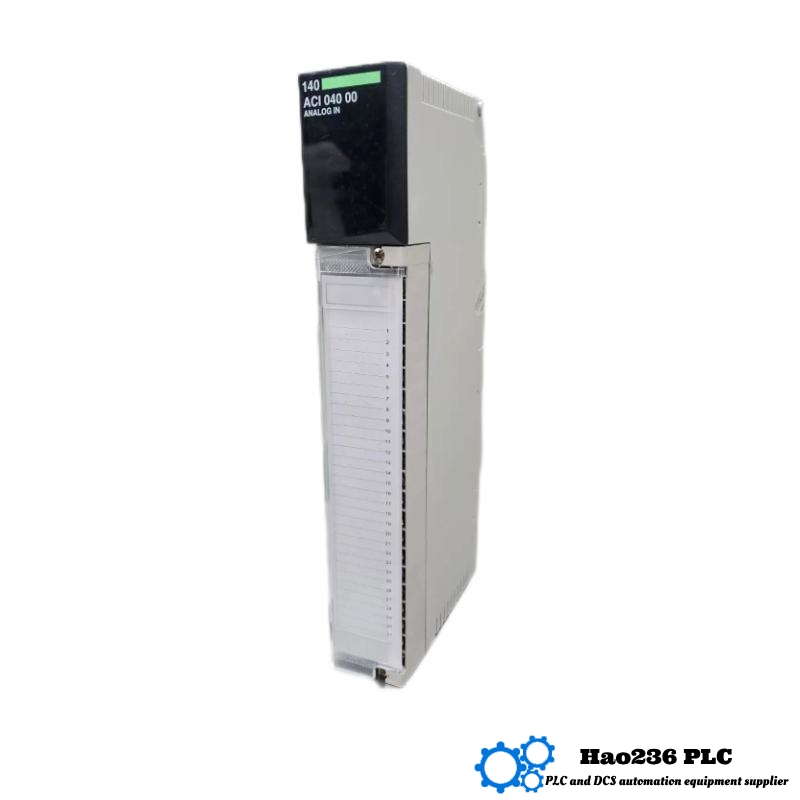

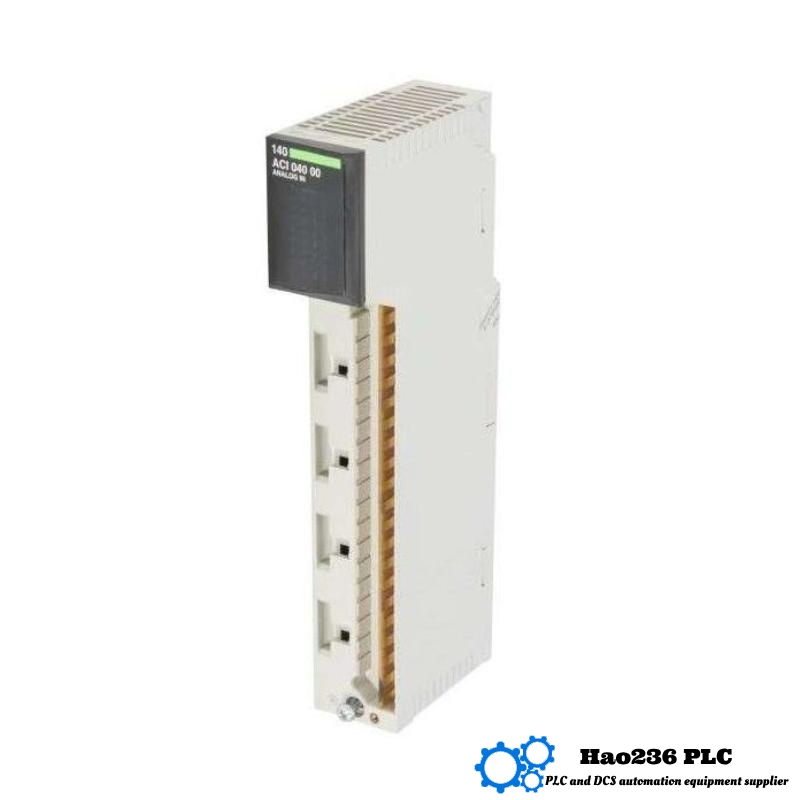

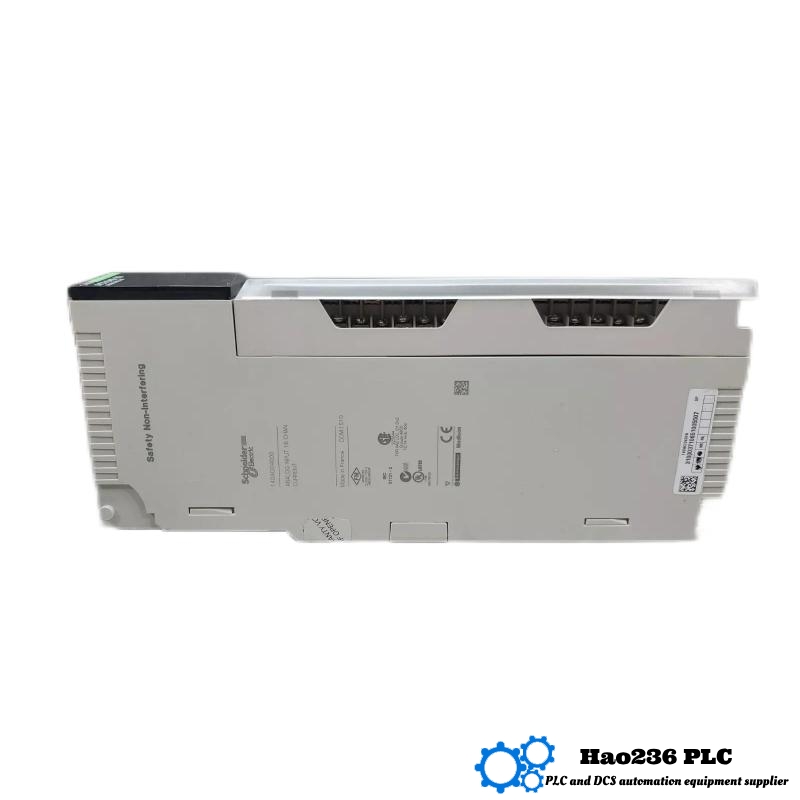

Schneider 140ACI04000 Product Overview
Product Name: Schneider 140ACI04000
Brand: Schneider Electric
Series: Modicon Quantum
Product Type: Analog Input Module
Product Parameters
| Parameter | Description |
|---|---|
| Part Number | 140ACI04000 |
| Product Type | Analog Input Module |
| Input Channels | 16 isolated analog input channels |
| Input Signal Type | 4-20 mA DC |
| Resolution | 12-bit |
| Conversion Time | 1 ms per channel |
| Input Impedance | 250 ohms |
| Isolation | 500V AC (channel-to-channel and channel-to-ground) |
| Power Supply | 24 VDC |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Protection Class | IP20 |
| Mounting Type | Rack-mounted |
| Dimensions | 103.9 x 40.3 x 250 mm (L x W x H) |
| Weight | 0.3 kg |
| Compatible PLCs | Modicon Quantum PLC series |
Product Introduction
The Schneider 140ACI04000 is an advanced analog input module from the Modicon Quantum series, designed for use in industrial control systems. With 16 isolated analog input channels, this module provides flexibility and accuracy for a wide range of applications. The module supports 4-20 mA DC current inputs, which are commonly used in process control applications, and offers 12-bit resolution for precise signal measurement.
The 1 ms per channel conversion time ensures that data is processed quickly, making this module ideal for real-time monitoring and control in fast-paced environments. The 500V AC isolation feature protects the system from electrical interference and ensures that accurate signals are captured without distortion.
This module is designed to integrate seamlessly with Modicon Quantum PLCs, and it operates over a wide temperature range of 0°C to 60°C, ensuring reliable performance in diverse environments. With its compact size (103.9 x 40.3 x 250 mm) and light weight (0.3 kg), the 140ACI04000 is easy to integrate into existing control systems.
Product Applications
- Process Control: The 140ACI04000 is ideal for applications that require precise monitoring and control of process variables such as temperature, pressure, and flow.
- Manufacturing Automation: It is used in robotics, assembly lines, and production monitoring systems, offering accurate input for automation control.
- Energy & Power: The module is essential for monitoring power generation systems, including power plants and energy management systems.
- Water Treatment: It can be used in water quality monitoring and flow rate control applications.
- Oil & Gas: It supports various monitoring functions in oil rigs, pumping stations, and compressors.
Product Advantages
-
High-Accuracy Measurement
The 12-bit resolution provides accurate readings for reliable signal processing, crucial in industrial applications. -
Fast Data Conversion
With a 1 ms per channel conversion time, the module is designed to deliver real-time data for fast decision-making and process adjustments. -
Complete Isolation
The 500V AC isolation ensures that the system is protected from electrical noise, guaranteeing clean, accurate signals. -
Flexible Input Configuration
Supporting 16 isolated input channels, this module allows for multi-channel monitoring of critical parameters in large industrial systems. -
Compact and Lightweight
The compact size (103.9 x 40.3 x 250 mm) and light weight (0.3 kg) make this module easy to install and integrate into control racks. -
Wide Temperature Range
The operating temperature range of 0°C to 60°C ensures reliable performance even in harsh or extreme conditions. -
Seamless PLC Integration
It is designed for easy integration with the Modicon Quantum PLC series, ensuring smooth communication and data flow across the automation system.
Recommended Similar Models from the Modicon Quantum Series
| Model | Input Type | Channels | Resolution | Isolation | Dimensions (mm) | Weight |
|---|---|---|---|---|---|---|
| 140ACI04000 | Analog (4-20mA) | 16 | 12-bit | 500V AC | 103.9 x 40.3 x 250 | 0.3 kg |
| 140ACI03000 | Analog (4-20mA) | 8 | 15-bit | 500V AC | 103.9 x 40.3 x 250 | 0.3 kg |
| 140ACI05100 | Analog (0-10V) | 8 | 16-bit | 500V AC | 160 x 40 x 125 | 0.42 kg |
| 140ACO02000 | Analog Output (4-20mA) | 4 | 15-bit | 500V AC | 160 x 40 x 120 | 0.38 kg |
| 140ACI06000 | Analog (RTD) | 6 | 16-bit | 500V AC | 160 x 40 x 128 | 0.43 kg |
Recommended Popular Schneider Models
| Model | Type | Channels | Resolution | Power Supply | Dimensions (mm) | Weight |
|---|---|---|---|---|---|---|
| 140CRA93100 | Communication Adapter | N/A | N/A | 24 VDC | 150 x 40 x 110 | 0.35 kg |
| 140CPS11420 | Power Supply Module | N/A | N/A | 125 VDC | 170 x 50 x 130 | 0.6 kg |
| 140CPU65150 | Processor Module | N/A | N/A | 24 VDC | 190 x 60 x 140 | 0.8 kg |
| 140DAI55300 | Digital Input | 16 | N/A | 24 VDC | 160 x 40 x 125 | 0.45 kg |
| 140DDI84100 | Discrete Input | 32 | N/A | 24 VDC | 160 x 40 x 130 | 0.5 kg |
Product FAQs
Q1: What is the main function of the Schneider 140ACI04000?
A1: It is an analog input module that converts 4-20mA current signals into digital values for processing in Modicon Quantum PLC systems.
Q2: How many channels does the Schneider 140ACI04000 have?
A2: The module provides 16 isolated analog input channels.
Q3: What is the resolution of the 140ACI04000?
A3: The module offers 12-bit resolution for accurate signal measurement.
Q4: What is the isolation capability of the module?
A4: It offers 500V AC isolation, providing protection from electrical interference and noise.
Q5: Can this module be used with other Schneider PLCs?
A5: While the 140ACI04000 is designed for Modicon Quantum PLCs, it may also be compatible with other Schneider PLC systems that support analog inputs.
Q6: What is the temperature range for the module?
A6: The operating temperature range is 0°C to 60°C, suitable for most industrial environments.
Q7: How is the module mounted?
A7: The module is rack-mounted within the Modicon Quantum system.
Q8: What is the power supply requirement?
A8: The module operates with a 24 VDC power supply.
Q9: What is the weight of the module?
A9: The weight is 0.3 kg.
Q10: Can I use this module for high-speed applications?
A10: Yes, the module supports 1 ms conversion time per channel, making it suitable for real-time high-speed applications.
