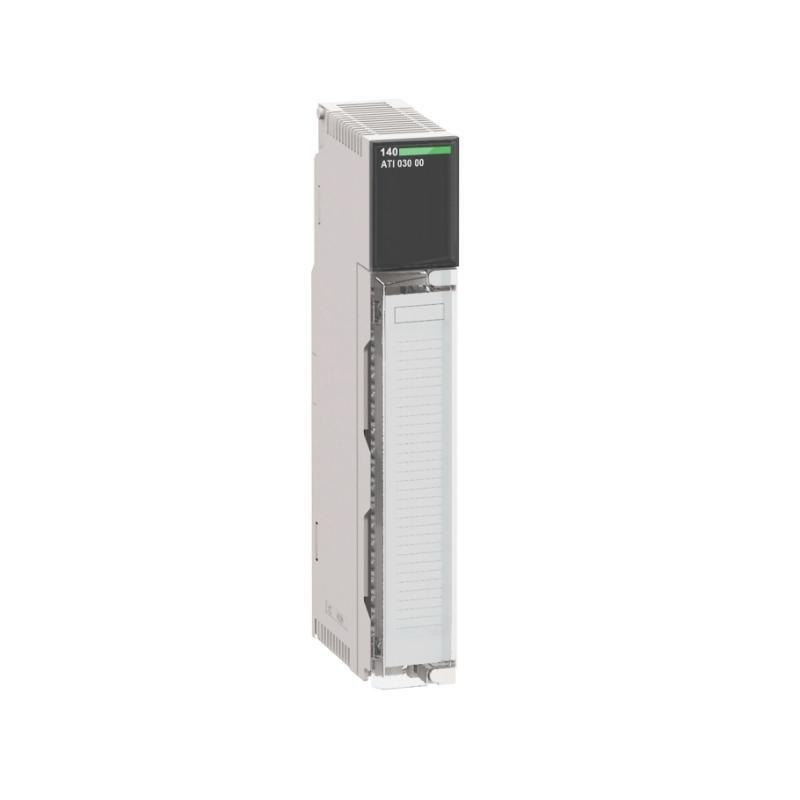

Schneider 140ATI03000 Analog Input Module
Product Overview
The Schneider Electric 140ATI03000 is a high-performance analog input module designed for industrial automation systems. This module is part of the Modicon Quantum family, providing precise, reliable, and scalable solutions for managing various analog input signals in complex systems.
Product Parameters
| Parameter | Value |
|---|---|
| Model | 140ATI03000 |
| Type | Analog Input Module |
| Input Type | Voltage (0-10V) / Current (4-20mA) |
| Number of Inputs | 8 |
| Resolution | 16 bits |
| Sampling Rate | 1 ms per input |
| Input Impedance | > 200kΩ |
| Signal Conditioning | Programmable filtering and scaling |
| Operating Voltage | 24V DC |
| Power Consumption | 2W |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
| Mounting | DIN rail |
| Communication Interface | Modbus TCP/IP, Modbus RTU |
| Environmental Conditions | Operating Temp: -20 to 60°C |
| Certification | CE, UL, RoHS |
| Safety Rating | IEC 61131-2, UL508A |
Product Applications
The 140ATI03000 analog input module is commonly used in industrial control systems that require accurate analog-to-digital conversion. Typical applications include:
- Turbine Monitoring: Used in turbine control systems to monitor and process analog signals from sensors.
- Solar Power Plants: Integrated into solar turbine control systems to read sensor data like temperature and pressure.
- Industrial Automation Systems: Essential for converting and processing signals from various sensors in automated production lines.
- Environmental Control Systems: Applied in systems requiring precise data acquisition for environmental monitoring.
- Energy Management Systems: Collects analog inputs related to power consumption, providing real-time data for optimization.
Product Advantages
- High Precision and Reliability: The 16-bit resolution ensures highly accurate data acquisition for critical industrial processes.
- Flexible Input Types: Supports both voltage and current signals, offering versatility in a wide range of applications.
- Fast Sampling Rate: The 1 ms sampling rate enables rapid data collection and processing, reducing response time.
- Robust Communication: Compatible with Modbus TCP/IP and Modbus RTU, ensuring seamless integration with various control systems.
- Compact Design: The compact form factor (103.9 × 40.3 × 250 mm) makes it ideal for space-constrained installations.
- Low Power Consumption: With only 2W of power consumption, the module is energy-efficient.
- Easy Integration: The DIN rail mounting system simplifies installation in standard industrial enclosures.
Brand
Schneider Electric is a globally recognized leader in energy management and automation solutions, providing a wide range of reliable, high-quality products for industrial, commercial, and residential applications. The 140ATI03000 module belongs to Schneider’s Modicon Quantum series, which is renowned for its robust, scalable, and flexible automation solutions.
Recommended Models in the Same Series
| Model | Description | Inputs | Voltage Range | Features |
|---|---|---|---|---|
| 140ACR74000 | Analog Output Module | 8 | 0-10V, 4-20mA | High accuracy, fast response time |
| 140CPS92400 | Analog Input Module | 16 | ±10V | High resolution, fast sampling rate |
| 140DAI16000 | Digital Input Module | 16 | 24V DC | Industrial grade, compact size |
| 140CPS32400 | Analog Output Module | 8 | 0-10V | Extended temperature range |
| 140ASI06000 | Analog Input/Output Module | 8 | ±10V, 4-20mA | Flexible signal input/output |
Popular Schneider Electric Models
| Model | Description | Inputs/Outputs | Voltage Range | Features |
|---|---|---|---|---|
| 140CPU67160 | Modicon Quantum CPU | 1 | 24V DC | High processing power, scalable |
| 140NOA62000 | Digital Output Module | 16 | 24V DC | Industrial-grade, low latency |
| 140DDO35300 | Digital Output Module | 16 | 24V DC | Fast switching, high durability |
| 140CPS22400 | Analog Input Module | 8 | 0-10V, 4-20mA | Programmable scaling, high resolution |
| 140LPS01000 | Power Supply Module | – | 24V DC | Compact design, energy-efficient |
FAQs (Q&A)
-
Q: What is the input range for the 140ATI03000 module?
A: The module supports both 0-10V and 4-20mA input signals. -
Q: How many inputs does the 140ATI03000 support?
A: The module supports up to 8 analog inputs. -
Q: What is the resolution of the analog inputs?
A: The analog inputs have a 16-bit resolution for precise measurements. -
Q: Can this module be used in solar turbine applications?
A: Yes, it is ideal for monitoring sensors in solar turbine control systems. -
Q: What is the typical power consumption of the module?
A: The 140ATI03000 module consumes approximately 2W of power. -
Q: Does the module support Modbus communication?
A: Yes, it supports both Modbus TCP/IP and Modbus RTU protocols. -
Q: What are the dimensions of the module?
A: The module measures 103.9 × 40.3 × 250 mm. -
Q: Is the module CE certified?
A: Yes, the 140ATI03000 is CE certified, along with UL and RoHS certifications. -
Q: How should the module be mounted?
A: The module is designed for easy DIN rail mounting. -
Q: What is the operating temperature range for the module?
A: The module operates within a temperature range of -20 to 60°C.
Precision in Every Signal
Ensure your control system performs at its best with the Schneider 140ATI03000 Analog Input Module. Precision-engineered to handle a variety of signal types, this module ensures accuracy in the most demanding industrial applications.
The Power of Flexibility
Whether it's voltage or current, the 140ATI03000 has you covered. Adaptable and reliable, this module supports a wide range of analog inputs, giving you the flexibility you need in any control system.
Reliable Performance, Every Time
Designed for continuous operation in harsh environments, the 140ATI03000 module delivers unparalleled performance. Count on it to process data from your critical sensors with exceptional accuracy and speed.
Space-Saving, High-Performance
With its compact design and powerful capabilities, the 140ATI03000 module is the ideal solution for space-constrained installations. Get more done with less and optimize your system without compromising on performance.
