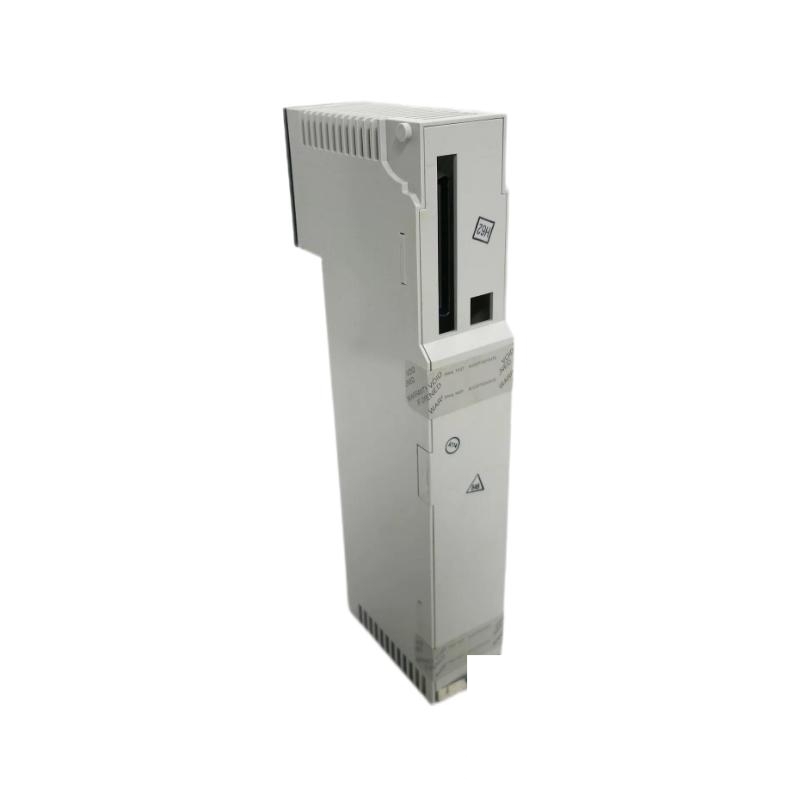

Schneider 140AVI03000 Analog Input Module
Product Overview
The Schneider Electric 140AVI03000 is an advanced analog input module designed to provide precise and reliable signal acquisition for industrial control applications. As part of the Modicon Quantum family, this module is engineered for use in complex automation systems that require accurate measurement and conversion of analog signals. It is ideal for high-demand environments like energy management, automation, and monitoring systems.
Product Parameters
| Parameter | Value |
|---|---|
| Model | 140AVI03000 |
| Type | Analog Input Module |
| Input Type | Voltage (0-10V) / Current (4-20mA) |
| Number of Inputs | 8 |
| Resolution | 16 bits |
| Sampling Rate | 1 ms per input |
| Input Impedance | > 200kΩ |
| Signal Conditioning | Programmable filtering and scaling |
| Operating Voltage | 24V DC |
| Power Consumption | 2W |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
| Mounting | DIN rail |
| Communication Interface | Modbus TCP/IP, Modbus RTU |
| Environmental Conditions | Operating Temp: -20 to 60°C |
| Certification | CE, UL, RoHS |
| Safety Rating | IEC 61131-2, UL508A |
Product Applications
The Schneider 140AVI03000 analog input module is used in a wide variety of industrial and commercial applications where high-accuracy signal measurement is required:
- Turbine Monitoring Systems: Used to measure and monitor key turbine parameters such as temperature, pressure, and flow.
- Solar Power Plants: Ideal for managing input signals from various environmental sensors, including temperature and light intensity sensors.
- Energy Management Systems: The module is used for accurate monitoring and control of energy consumption and distribution.
- Industrial Process Automation: Applied in production lines for collecting and processing data from sensors in real-time.
- Building Automation Systems: Employed in systems for HVAC, lighting, and security where precise data acquisition is critical.
Product Advantages
- High Precision: The 16-bit resolution ensures that the data collected is highly accurate, providing precise measurements for critical applications.
- Fast Data Sampling: With a sampling rate of 1 ms, the module allows for rapid response to changes in analog signals, ideal for time-sensitive processes.
- Versatile Input Types: The module supports both voltage and current inputs, making it adaptable to a variety of sensors and applications.
- Reliable Communication: The module supports both Modbus TCP/IP and Modbus RTU, ensuring seamless communication within automation systems.
- Compact Design: The module’s small form factor (103.9 × 40.3 × 250 mm) ensures easy integration into space-constrained environments.
- Low Power Consumption: At only 2W, it is energy-efficient, making it an excellent choice for cost-conscious installations.
- Environmental Durability: Designed to operate in temperatures ranging from -20°C to 60°C, the module is suitable for use in harsh environments.
Brand
Schneider Electric is a global leader in energy management and automation solutions, recognized for its innovation and reliability in the industrial sector. The 140AVI03000 module is part of the Modicon Quantum series, a family of products renowned for their scalability, flexibility, and robust performance in complex industrial automation systems.
Recommended Models in the Same Series
| Model | Description | Inputs | Voltage Range | Features |
|---|---|---|---|---|
| 140AVI06000 | Analog Input Module | 16 | 0-10V, 4-20mA | High resolution, fast sampling rate |
| 140CPS72400 | Analog Input/Output Module | 8 | ±10V | Flexible signal input/output |
| 140DDI35300 | Digital Input Module | 8 | 24V DC | Compact, rugged design |
| 140DAI16000 | Digital Input/Output Module | 16 | 24V DC | High durability, low latency |
| 140CPS72450 | Analog Output Module | 8 | 0-10V | Programmable, high accuracy |
Popular Schneider Electric Models
| Model | Description | Inputs/Outputs | Voltage Range | Features |
|---|---|---|---|---|
| 140CPU67160 | Modicon Quantum CPU | 1 | 24V DC | High processing power, scalable |
| 140NOA62000 | Digital Output Module | 16 | 24V DC | Industrial-grade, low latency |
| 140CPS22800 | Analog Input Module | 8 | 0-10V, 4-20mA | Programmable scaling, high resolution |
| 140LPS01000 | Power Supply Module | – | 24V DC | Compact, energy-efficient |
| 140PWR01000 | Power Supply Module | – | 24V DC | Robust design, low voltage protection |
FAQs (Q&A)
-
Q: What type of signals can the 140AVI03000 module handle?
A: The module can handle both voltage (0-10V) and current (4-20mA) signals. -
Q: How many analog inputs are supported by the 140AVI03000?
A: The module supports 8 analog inputs. -
Q: What is the resolution of the analog inputs?
A: The module has a 16-bit resolution for highly accurate data conversion. -
Q: Can I use this module in solar energy applications?
A: Yes, it is well-suited for use in solar turbine and energy management systems to monitor various sensor signals. -
Q: What is the power consumption of the 140AVI03000 module?
A: The module consumes approximately 2W of power. -
Q: Does this module support Modbus communication?
A: Yes, it supports both Modbus TCP/IP and Modbus RTU protocols. -
Q: What are the module’s dimensions?
A: The module measures 103.9 × 40.3 × 250 mm. -
Q: Is the module CE certified?
A: Yes, it is CE certified, along with UL and RoHS compliance. -
Q: How should the module be installed?
A: The 140AVI03000 module is designed for DIN rail mounting. -
Q: What is the operating temperature range for this module?
A: The module operates in temperatures from -20°C to 60°C.
Empowering Your System with Precision
Experience the accuracy and reliability of the Schneider 140AVI03000 Analog Input Module. With high-resolution data acquisition and versatile input types, it’s the perfect solution for demanding industrial control systems.
Flexibility at Its Best
Whether it's monitoring temperature, pressure, or flow, the Schneider 140AVI03000 can handle it all. Its support for both voltage and current signals ensures seamless integration into any application.
Built for Harsh Environments
With its rugged design and wide temperature range, the 140AVI03000 thrives in even the toughest environments. Trust Schneider Electric to deliver performance you can count on.
Compact, Powerful, Efficient
Maximize your control system’s performance without compromising on space. The 140AVI03000 combines a small footprint with powerful features to meet your industrial automation needs.
