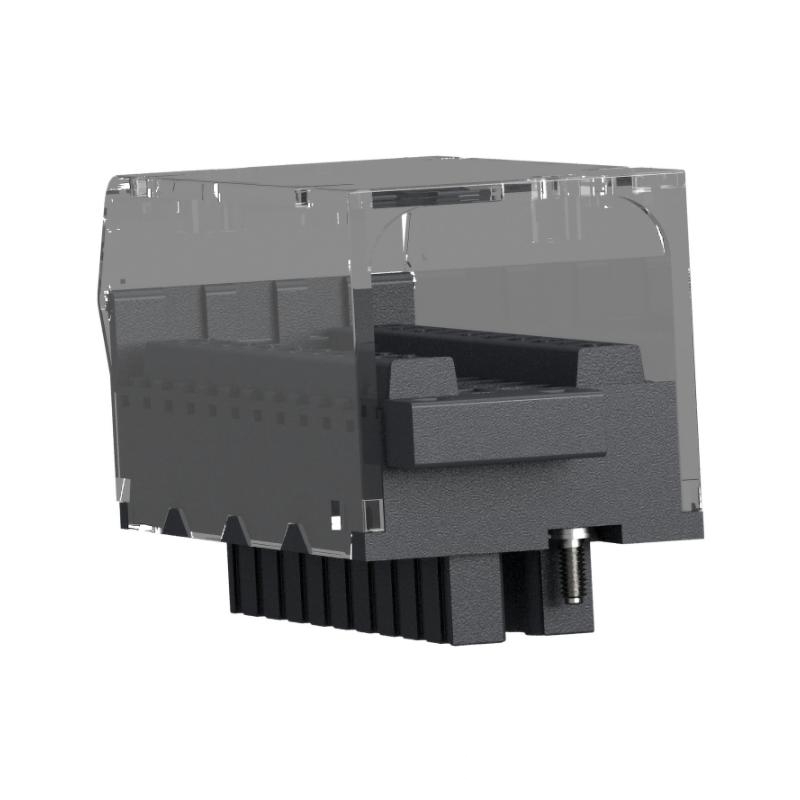

Schneider BMXFTB2000 20-Pin Removable Screw Terminal Block
Product Description:
The Schneider BMXFTB2000 is a 20-pin removable screw terminal block designed for use with the Modicon X80 series I/O modules. This high-quality terminal block ensures secure and reliable wiring connections, making it ideal for industrial automation and control systems.
With its compact size, robust build, and quick-connect design, the BMXFTB2000 simplifies installation and maintenance. It provides a secure and vibration-resistant connection, reducing the risk of loose wiring in demanding industrial environments. The removable design enhances flexibility, allowing users to quickly swap connections without extensive rewiring.
The BMXFTB2000 is compatible with Schneider’s Modicon X80 I/O modules, making it a perfect choice for various applications in manufacturing, energy management, and process control.
Specifications:
| Feature | Specification |
|---|---|
| Model Number | BMXFTB2000 |
| Series | Modicon X80 |
| Type | 20-pin removable screw terminal block |
| Number of Connections | 20 |
| Connection Type | Screw terminals |
| Wire Size Compatibility | 0.2 mm² to 2.5 mm² (24 to 14 AWG) |
| Rated Voltage | Up to 250V AC/DC |
| Rated Current | Up to 10A per connection |
| Dimensions | 91.4 x 41.8 x 32 mm |
| Weight | 0.093 kg |
| Mounting Type | Direct plug-in for Modicon X80 modules |
| Insulation Material | High-durability thermoplastic |
| Color | Black |
| Operating Temperature | -25°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Vibration Resistance | IEC 60068-2-6 Compliant |
| Standards Compliance | IEC 61131-2, UL, CSA, CE |
Applications:
The BMXFTB2000 terminal block is widely used in various industrial sectors that require secure and organized wiring solutions for automation systems. Some key applications include:
-
Industrial Automation & Process Control – Used in PLCs, distributed control systems (DCS), and SCADA applications for seamless wiring connections.
-
Energy Management Systems – Plays a crucial role in power distribution panels, energy monitoring systems, and smart grid applications.
-
Manufacturing & Assembly Lines – Ensures stable and organized connections in automated production lines, reducing maintenance efforts.
-
Building Automation Systems – Helps integrate HVAC, lighting, and security systems for centralized control.
-
Water & Wastewater Treatment Plants – Used in sensor wiring and pump control systems for environmental monitoring.
Advantages:
-
Reliable & Secure Connections – Ensures strong screw connections that prevent accidental disconnections in industrial environments.
-
Removable Design – Enables quick wiring changes and maintenance without having to redo entire connections.
-
Compact & Space-Saving – Small form factor fits seamlessly into control panels without occupying excess space.
-
High Compatibility – Fully compatible with Schneider’s Modicon X80 series, making it a seamless integration option.
-
Durability & Resistance – Built from high-quality thermoplastic, offering resistance to temperature variations, vibrations, and electrical interference.
-
Wide Wire Compatibility – Supports a range of wire sizes (0.2 mm² to 2.5 mm²), ensuring flexibility for different industrial applications.
-
Easy Installation & Replacement – The plug-in design reduces installation time and simplifies wiring procedures.
-
Strong Electrical Ratings – Supports up to 250V AC/DC and 10A per connection, making it suitable for various electrical loads.
-
Industry-Compliant Standards – Meets IEC, UL, CSA, and CE safety and performance regulations.
-
Vibration & Shock Resistant – Designed for harsh industrial conditions, ensuring long-term reliability in demanding applications.
Brand Information:
Schneider Electric is a globally recognized leader in industrial automation and energy management solutions. The Modicon X80 series, which includes the BMXFTB2000 terminal block, is part of Schneider’s high-performance I/O system, designed for seamless integration, scalability, and reliability in modern industrial automation environments.
Recommended Models from the Same Series:
| Model | Description | Dimensions | Weight |
|---|---|---|---|
| BMXFTB2010 | 20-pin removable spring terminal block | 91.4 x 41.8 x 32 mm | 0.091 kg |
| BMXFTB2020 | 40-pin removable screw terminal block | 91.4 x 41.8 x 32 mm | 0.095 kg |
| BMXFTB2030 | 40-pin removable spring terminal block | 91.4 x 41.8 x 32 mm | 0.093 kg |
| BMXFTB2040 | 20-pin terminal block with enhanced shielding | 91.4 x 41.8 x 32 mm | 0.096 kg |
| BMXFTB2050 | 40-pin high-density terminal block | 91.4 x 41.8 x 32 mm | 0.098 kg |
Popular Models from Schneider Electric:
| Model | Description | Dimensions | Weight |
|---|---|---|---|
| BMXPRA0100 | Modicon X80 Profibus DP Adapter | 125 x 90 x 40 mm | 0.18 kg |
| BMXCPS3020 | Modicon X80 24V DC Power Supply | 150 x 110 x 45 mm | 0.5 kg |
| BMXDDI1602 | 16-channel digital input module (24V DC) | 115 x 90 x 40 mm | 0.3 kg |
| BMXDRA0805 | 8-channel relay output module (230V AC) | 115 x 90 x 40 mm | 0.35 kg |
| BMXNOM0200 | Modicon X80 Serial Communication Module | 115 x 90 x 40 mm | 0.4 kg |
Frequently Asked Questions (FAQs):
Q1: What is the purpose of the BMXFTB2000?
A1: It is a 20-pin removable screw terminal block designed for secure wiring connections in industrial automation systems.
Q2: Which series does the BMXFTB2000 belong to?
A2: It is part of Schneider Electric’s Modicon X80 series.
Q3: What wire sizes does it support?
A3: It supports wires ranging from 0.2 mm² to 2.5 mm² (24-14 AWG).
Q4: Is this terminal block easy to remove and replace?
A4: Yes, it features a removable design for quick disconnection and maintenance.
Q5: What is the rated voltage and current?
A5: It is rated for up to 250V AC/DC and 10A per connection.
Q6: What is its operating temperature range?
A6: It can operate between -25°C and 70°C.
Q7: Is it vibration-resistant?
A7: Yes, it complies with IEC 60068-2-6 standards for vibration resistance.
Q8: Can it be used with other Schneider modules?
A8: Yes, it is fully compatible with Schneider Modicon X80 I/O modules.
Q9: What material is used for insulation?
A9: It is made of high-durability thermoplastic for electrical insulation.
Q10: What is the weight of the BMXFTB2000?
A10: It weighs 0.093 kg.
