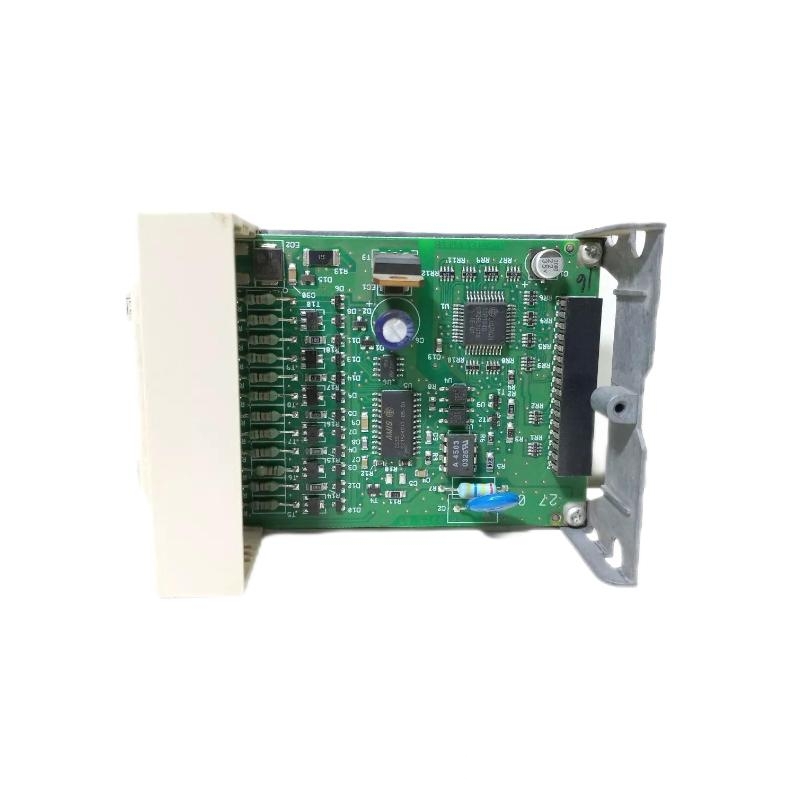

Schneider TSXDEZ12D2K Discrete Input Module

Product Introduction

The Schneider TSXDEZ12D2K is a high-quality discrete input module from the Modicon TSX Micro series, designed to deliver reliable performance and seamless integration in industrial automation systems. This module is specifically designed for use with Schneider Electric’s Modicon PLCs, offering a compact solution for processing digital inputs. It is highly suitable for applications that require reliable and precise control, such as factory automation, process control, and remote monitoring systems.

The TSXDEZ12D2K module provides excellent flexibility in digital input configuration and is capable of handling up to 12 discrete input signals. With its high-performance design, it ensures quick response times and robust signal processing, making it an ideal solution for demanding industrial environments.

Product Specifications

Below is a detailed specification table for the TSXDEZ12D2K discrete input module:

Applications

The TSXDEZ12D2K discrete input module is ideal for a variety of industrial applications, particularly in automated systems requiring reliable digital input signals. Some of the key applications include:

1. Factory Automation:
   The TSXDEZ12D2K is used extensively in factory automation to monitor signals from sensors, switches, and other digital devices, ensuring accurate data collection for process control systems.

2. Process Control:
   In process control industries, this module is used to interface with various digital input devices, such as pressure sensors, temperature switches, and proximity sensors, ensuring real-time data is fed into the control system for precise adjustments.

3. Building Automation:
   The module is also used in building automation systems for managing inputs from devices like motion sensors, lighting controls, and security systems, helping to optimize energy consumption and ensure safety.

4. Energy Management Systems:
   In energy management applications, it monitors various digital inputs related to power usage, consumption, and equipment status, providing accurate data for energy efficiency optimization.

5. Remote Monitoring Systems:
   The TSXDEZ12D2K is ideal for use in remote monitoring systems where it can interface with sensors to transmit critical data to central control systems, ensuring the smooth operation of remote facilities.

Advantages of the TSXDEZ12D2K Discrete Input Module

1. Compact and Efficient Design:
   The TSXDEZ12D2K is designed to be compact, with a size of only 55 × 180 × 260 mm, making it ideal for space-constrained environments while still providing powerful input capabilities.

2. Reliable Performance:
   Schneider Electric’s TSXDEZ12D2K module is designed for consistent and reliable operation in demanding industrial environments. It ensures accurate data processing, even in challenging conditions.

3. Ease of Integration:
   As part of the Modicon TSX Micro series, the module integrates seamlessly into Schneider Electric PLC systems, making setup and configuration straightforward with minimal downtime.

4. High Input Accuracy:
   With fast response times of just 5 ms, the module ensures quick detection and accurate transmission of digital signals, essential for systems that rely on rapid feedback.

5. Wide Temperature Range:
   The TSXDEZ12D2K can operate in a broad temperature range from -20°C to +55°C, making it suitable for use in a variety of industrial settings, including harsh environments.

6. Protection Features:
   The module includes reverse polarity protection and overvoltage protection, ensuring long-term reliability and safeguarding your system from electrical faults.
