Schneider TSXDEZ32D2 Discrete Input Module

Product Introduction

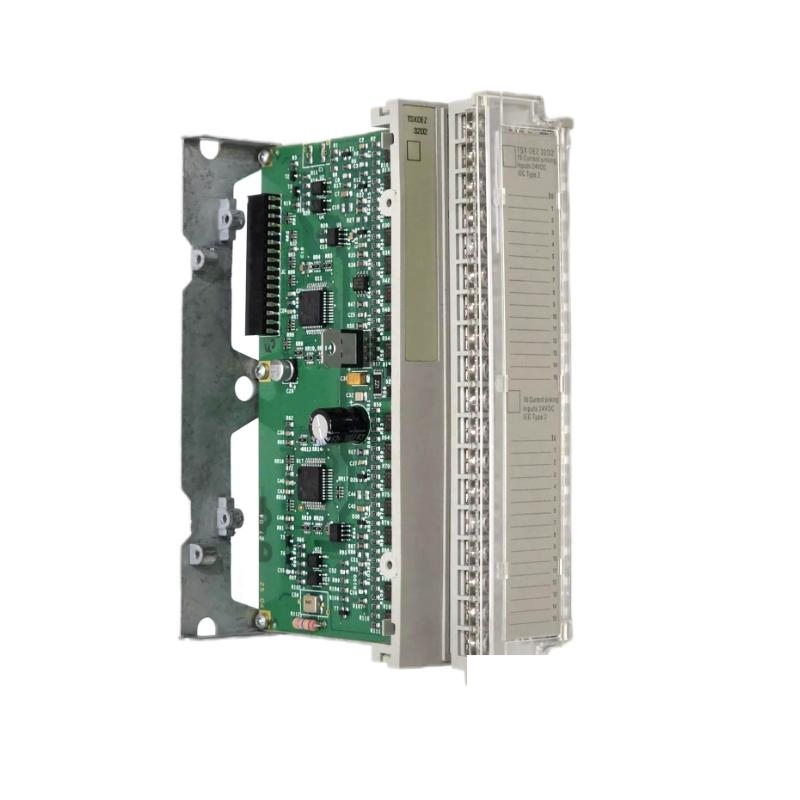

The Schneider TSXDEZ32D2 is a versatile and high-performance discrete input module from the Modicon TSX Micro series, designed for use in industrial automation and control systems. This module provides seamless integration into Schneider Electric’s PLC systems, offering a robust and compact solution for handling digital inputs in a wide range of applications. The TSXDEZ32D2 is specifically designed for digital signal processing, featuring 32 input channels that can be used to monitor a variety of on/off devices such as switches, sensors, and relays.

With its high reliability and quick response times, the TSXDEZ32D2 ensures that critical data is fed into the PLC with precision and minimal delay. This module is particularly ideal for controlling industrial machinery, managing control panels, and handling other systems that require real-time monitoring of digital signals.

Product Specifications

Below is the specification table for the Schneider TSXDEZ32D2 discrete input module:

Applications

The TSXDEZ32D2 discrete input module is designed to serve a wide variety of applications, particularly in factory automation, process control, and other industrial systems that require reliable digital input processing. Here are some of its main applications:

1. Factory Automation:
   The module is widely used in factory automation systems to monitor and control a wide range of sensors, switches, and actuators. It ensures seamless integration with Modicon PLCs and provides real-time data for process control and monitoring.

2. Machine Control Systems:
   In manufacturing environments, the TSXDEZ32D2 is used to process signals from machine inputs, such as sensors and switches, ensuring that production lines run smoothly and equipment operates according to the desired parameters.

3. Building Automation:
   The module is also used in building automation systems to monitor inputs from various devices such as motion detectors, security sensors, and lighting controls, optimizing energy consumption and ensuring safety.

4. Process Control:
   In process control applications, the TSXDEZ32D2 handles inputs from various devices like temperature sensors, pressure switches, and flow meters, enabling real-time monitoring and control of industrial processes.

5. Energy Management:
   The module can be used in energy management systems to monitor signals from devices such as power meters and energy meters, allowing for the efficient management of electrical consumption.

Advantages of the TSXDEZ32D2 Discrete Input Module

1. High Channel Density:
   The TSXDEZ32D2 provides 32 discrete input channels, making it ideal for applications requiring multiple input signals. This high channel density helps optimize space and reduces the need for additional modules.

2. Fast Response Time:
   With a response time of just 5 ms, the module ensures that input signals are processed quickly, which is critical for systems that rely on real-time data.

3. Compact Design:
   The TSXDEZ32D2 is designed to be compact, with dimensions of 55 × 180 × 260 mm, allowing for efficient use of space in control panels and automation cabinets.

4. Reliability:
   Schneider Electric’s TSXDEZ32D2 is built to deliver reliable performance in industrial environments, with features such as reverse polarity protection and overvoltage protection to ensure safe and consistent operation.

5. Wide Temperature Range:
   The TSXDEZ32D2 operates in a temperature range of -20°C to +55°C, making it suitable for use in a variety of industrial settings, including harsh environments.

6. Seamless Integration:
   As part of the Modicon TSX Micro series, the TSXDEZ32D2 integrates seamlessly with Schneider Electric’s PLC systems, making it easy to incorporate into existing control systems.
