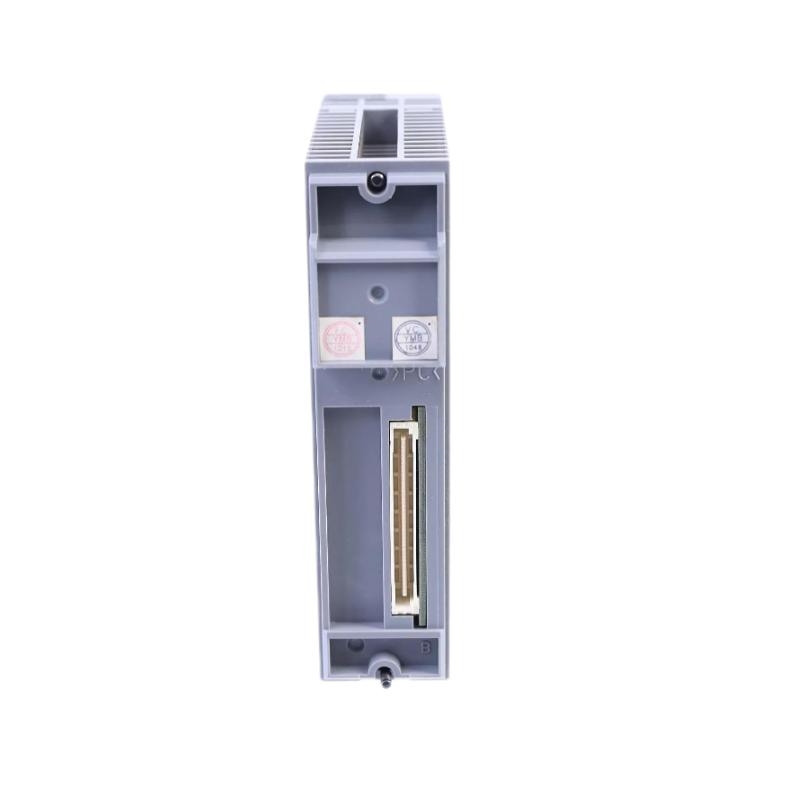

Yokogawa AAI135 Analog Input Module
Product Introduction
The Yokogawa AAI135 is a high-performance analog input module designed for use in industrial control systems. It offers precision analog signal processing with high reliability and is built to handle a wide range of industrial applications, making it an ideal choice for various industries such as manufacturing, energy, and automation. The AAI135 is part of the Yokogawa’s high-quality product portfolio designed to integrate seamlessly into distributed control systems (DCS) or programmable logic controllers (PLC).
This module is used to convert analog signals from process instruments such as temperature sensors, pressure sensors, and flow meters into digital signals that can be read and processed by a control system. The AAI135 is known for its versatility and high accuracy, making it suitable for applications in environments that require precise and reliable data acquisition.
Product Parameters
| Parameter | Description |
|---|---|
| Model | AAI135 |
| Input Type | 4-20 mA, 0-10 V, Thermocouples, RTD |
| Input Range | Configurable depending on signal type |
| Signal Conversion | Analog to Digital |
| Number of Channels | 1 (single-channel) |
| Power Supply | 24 VDC (+10%, -15%) |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
| Accuracy | ±0.1% (depending on signal range) |
| Operating Temperature Range | -20°C to +60°C |
| Mounting | DIN Rail Mountable |
| Communication Protocol | Modbus RTU (via optional communication module) |
Product Applications
The AAI135 module is widely used across various industries for applications such as:
- Temperature Control: Integrated with thermocouples or RTDs to monitor temperature in industrial processes.
- Pressure Monitoring: Connects to pressure sensors to monitor and control pressure levels in pipelines and reactors.
- Flow Measurement: Ideal for measuring flow rates in chemical plants, water treatment facilities, and oil refineries.
- Level Measurement: Monitors liquid or solid levels in tanks and silos.
Its applications span over industrial automation systems, remote monitoring stations, and safety critical systems that require reliable and precise analog-to-digital conversions.
Product Advantages
-
High Accuracy: The AAI135 provides a high level of accuracy with minimal signal loss, ensuring precise process control and data monitoring.
-
Versatility: Capable of supporting a wide variety of input signal types such as 4-20 mA, voltage signals, thermocouples, and RTDs, making it suitable for various industrial settings.
-
Compact Design: With compact dimensions of 107.5 × 32.8 × 130 mm and a weight of just 0.3 kg, the AAI135 can be easily integrated into existing systems, saving space and reducing installation complexity.
-
Reliable Performance: Built to operate in harsh industrial environments with a wide operating temperature range of -20°C to +60°C.
-
Ease of Integration: The AAI135 can be easily integrated into various control systems, including PLCs and DCS, enhancing system flexibility.
Brand
- Brand: Yokogawa
Yokogawa is a leading manufacturer in industrial automation, known for its cutting-edge technology in control systems, instruments, and field devices. The AAI series represents their commitment to providing reliable and high-performance analog input solutions that meet the rigorous demands of modern industrial operations.
Recommended Models from the Same Series
| Model | Description | Input Type | Dimensions | Weight | Key Features |
|---|---|---|---|---|---|
| AAI136 | Analog input module, 2 channels | 4-20 mA, Thermocouple | 107.5 × 32.8 × 130 mm | 0.3 kg | Dual channel, higher input range |
| AAI137 | High precision analog input for wide signals | Voltage, RTD, Thermocouple | 107.5 × 32.8 × 130 mm | 0.3 kg | Multi-signal input, enhanced accuracy |
| AAI138 | 4-channel analog input module | 4-20 mA, Voltage | 107.5 × 32.8 × 130 mm | 0.5 kg | Multiple channels, compact design |
| AAI139 | Temperature and pressure monitoring module | RTD, Thermocouple | 107.5 × 32.8 × 130 mm | 0.3 kg | Special for temperature/pressure signals |
| AAI140 | Multi-purpose analog input with redundancy | 4-20 mA, Voltage | 107.5 × 32.8 × 130 mm | 0.4 kg | Redundant power supply, fault tolerance |
Popular Models from Yokogawa
| Model | Description | Input Type | Dimensions | Weight | Key Features |
|---|---|---|---|---|---|
| YTA610 | Temperature Transmitter | RTD, Thermocouple | 108 × 55 × 115 mm | 0.25 kg | High precision temperature monitoring |
| YFP1000 | Field Power Supply | AC/DC | 120 × 120 × 150 mm | 1.2 kg | Robust power supply for field devices |
| YOKOGAWA DX2000 | Digital Oscilloscope | Voltage | 220 × 220 × 220 mm | 4 kg | Ideal for precision measurement in R&D labs |
| YTA710 | Analog Transmitter | Voltage, Current | 100 × 50 × 115 mm | 0.5 kg | Compact and reliable signal conversion |
| YFGW710 | Field Gateway for Process Control | Modbus, Ethernet | 140 × 120 × 200 mm | 1.5 kg | Communication gateway for seamless data transfer |
FAQ (Q&A Format)
Q1: What is the input signal range for the AAI135?
A1: The AAI135 supports a variety of input signal ranges, including 4-20 mA, 0-10 V, thermocouples, and RTDs. The range is configurable based on the signal type.
Q2: How do I install the AAI135?
A2: The AAI135 is designed to be mounted on a DIN rail for easy installation in control panels or other industrial settings.
Q3: What is the power supply requirement for the AAI135?
A3: The AAI135 requires a 24 VDC power supply, with a tolerance of +10% to -15%.
Q4: Can the AAI135 handle multiple channels of input?
A4: No, the AAI135 is a single-channel module. However, other modules in the AAI series support multiple channels.
Q5: What is the operating temperature range of the AAI135?
A5: The AAI135 operates in environments with temperatures ranging from -20°C to +60°C.
Q6: Is the AAI135 compatible with Yokogawa’s DCS or PLC systems?
A6: Yes, the AAI135 is fully compatible with Yokogawa’s Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC).
Q7: What is the accuracy of the AAI135 module?
A7: The AAI135 offers an accuracy of ±0.1% depending on the input signal range.
Q8: What kind of signals can I input into the AAI135?
A8: The AAI135 accepts 4-20 mA, 0-10 V, thermocouples, and RTDs as input signals.
Q9: Can I use the AAI135 in hazardous environments?
A9: The AAI135 is designed for general industrial applications. For hazardous environments, additional protective measures may be necessary.
Q10: Does the AAI135 require any special calibration?
A10: The AAI135 may require calibration based on the specific application, but it is designed to offer reliable operation without frequent calibration.
Precision at Your Fingertips
The Yokogawa AAI135 brings unmatched precision to your industrial control systems. Whether you're measuring temperature, pressure, or flow, this high-performance analog input module ensures accurate data conversion every time.
Reliable Performance in Any Environment
Designed to withstand extreme temperatures and tough industrial conditions, the AAI135 guarantees consistent performance. Trust in Yokogawa’s legacy of innovation to keep your operations running smoothly.
Space-Saving, High-Efficiency Technology
With its compact design (107.5 × 32.8 × 130 mm), the Yokogawa AAI135 offers efficient use of space while delivering reliable signal conversion. Ideal for today’s ever-demanding industrial environments.
Versatility That Fits Your Needs
From RTDs to thermocouples, the AAI135 supports a wide variety of input signals. No matter the process, Yokogawa’s AAI135 adapts to meet your specific needs with ease and accuracy.
