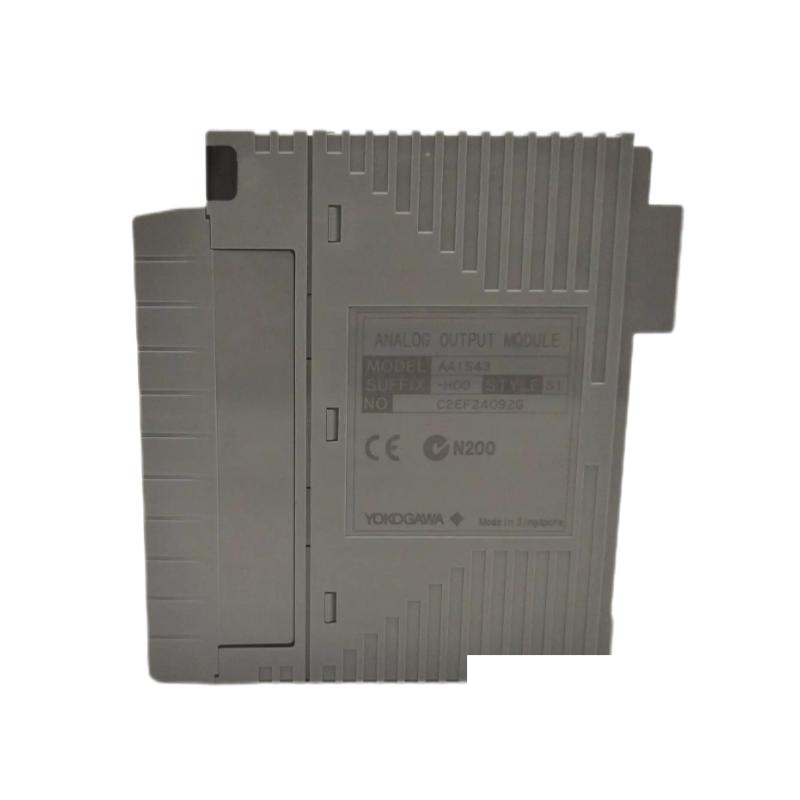

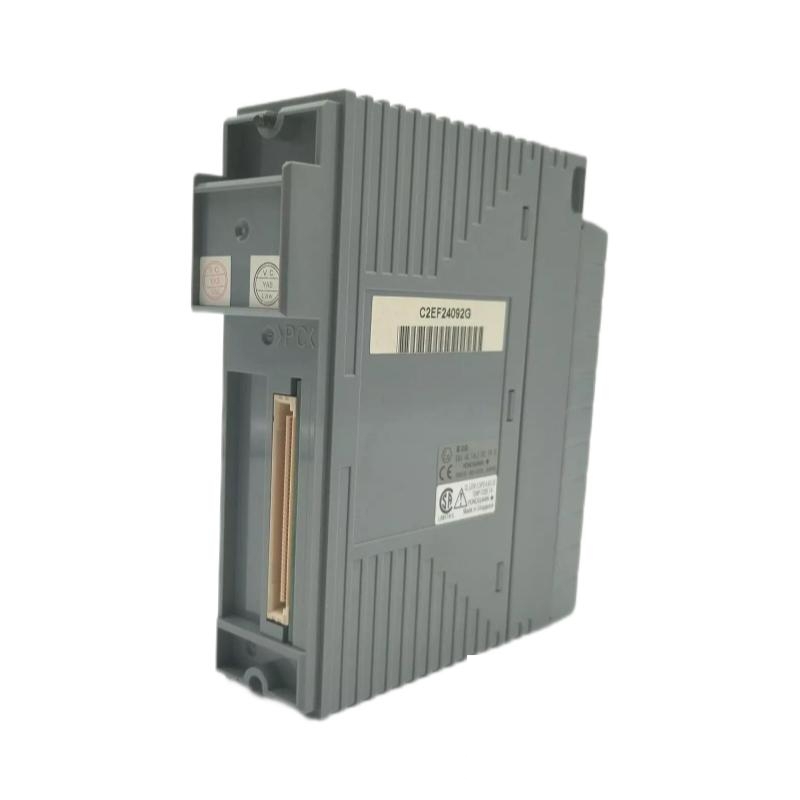

Yokogawa AAI543-H00 Analog Output Module
Product Overview:
The Yokogawa AAI543-H00 is a high-performance analog output module designed to deliver reliable and precise analog signals for industrial control systems. As part of the AAdesign series, the AAI543-H00 is ideal for use in applications that require exact control of parameters such as temperature, pressure, and flow. This module is built for easy integration into Yokogawa’s systems and is highly versatile, offering support for both current and voltage output configurations.
Featuring high accuracy and stability over long periods, the AAI543-H00 is perfect for industries where maintaining constant output values is critical. Its compact design ensures it fits into a variety of control systems, and its robust performance makes it an ideal choice for applications in industrial automation, process control, and more.
Applications:
- Industrial Automation: The AAI543-H00 is used to convert digital control signals into precise analog outputs, making it essential for controlling industrial processes.
- Process Control: Ideal for systems such as flow, temperature, and pressure regulation, where precise and consistent output is needed.
- SCADA Systems: Integrates seamlessly with SCADA systems for real-time monitoring and control of various parameters in a distributed control environment.
- Oil and Gas Industry: Used for controlling field devices such as valves and actuators in complex pipeline systems.
- Power Generation: Ensures stable control over turbines, generators, and other power-producing devices.
Advantages:
- High Accuracy & Precision: The AAI543-H00 provides high accuracy with minimal drift, ensuring stable and precise analog output even in demanding environments.
- Compact and Space-Saving Design: Its small dimensions (107.5 x 32.8 x 130 mm) make it ideal for installations in space-constrained environments, such as panels or control racks.
- Long-Term Stability: With low drift and minimal wear, the AAI543-H00 guarantees consistent performance throughout its operational life, reducing the need for frequent calibration.
- Versatility in Output Options: Supports both 4-20 mA and 0-10 V output configurations, making it adaptable to various applications and compatible with a wide range of field devices.
- Robust Performance: Built to endure harsh industrial conditions, offering excellent reliability even in challenging environments.
Brand: Yokogawa
Series: AAdesign Series
Product Specifications:
| Parameter | Specification |
|---|---|
| Model | AAI543-H00 |
| Function | Analog Output Module |
| Dimensions (W x H x D) | 107.5 x 32.8 x 130 mm |
| Weight | 0.4 kg |
| Output Type | 4-20 mA, 0-10 V |
| Accuracy | ±0.1% of Full Scale |
| Temperature Range | -10°C to +60°C |
| Power Supply | 24V DC |
| Mounting Type | DIN Rail Mount |
Recommended Similar Models:
| Model Number | Description | Output Type | Dimensions | Weight |
|---|---|---|---|---|
| AAI541 | 4-Channel Analog Output Module | 4-20 mA, 0-10 V | 107.5 x 32.8 x 130 mm | 0.45 kg |
| AAI542 | 2-Channel Analog Output Module | 4-20 mA, 0-10 V | 107.5 x 32.8 x 130 mm | 0.42 kg |
| AAI544 | High Precision Analog Output Module | 4-20 mA, 0-10 V | 107.5 x 32.8 x 130 mm | 0.48 kg |
| AAI545 | Multi-Channel Analog Output Module | 4-20 mA, 0-10 V | 107.5 x 32.8 x 130 mm | 0.50 kg |
| AAI546 | Isolated Analog Output Module | 4-20 mA, 0-10 V | 107.5 x 32.8 x 130 mm | 0.47 kg |
Other Popular Yokogawa Models:
| Model Number | Description | Output Type | Dimensions | Weight |
|---|---|---|---|---|
| AAI143 | 4-Channel Analog Input Module | 4-20 mA, 0-10 V | 107.5 x 32.8 x 130 mm | 0.38 kg |
| AAI121 | Analog Input Module | 4-20 mA | 107.5 x 32.8 x 130 mm | 0.35 kg |
| AAI131 | Precision Analog Input Module | 4-20 mA | 107.5 x 32.8 x 130 mm | 0.37 kg |
| AAI221 | Digital I/O Module | 4-20 mA | 107.5 x 32.8 x 130 mm | 0.40 kg |
| AAI312 | Signal Conditioning Module | 4-20 mA | 107.5 x 32.8 x 130 mm | 0.41 kg |
FAQ:
Q1: What is the purpose of the Yokogawa AAI543-H00 module?
A1: The AAI543-H00 is an analog output module used to convert digital control signals into precise analog outputs for controlling various industrial systems and processes.
Q2: What types of output does the AAI543-H00 support?
A2: The module supports 4-20 mA current output and 0-10 V voltage output, offering flexibility for different industrial applications.
Q3: How is the AAI543-H00 powered?
A3: The AAI543-H00 operates on a 24V DC power supply, which is common in many industrial control systems.
Q4: What is the size of the Yokogawa AAI543-H00 module?
A4: The module measures 107.5 x 32.8 x 130 mm, making it compact and easy to integrate into control systems.
Q5: How much does the AAI543-H00 module weigh?
A5: The AAI543-H00 weighs 0.4 kg, which is lightweight and convenient for installation in a variety of applications.
Q6: Can the AAI543-H00 be used in extreme environments?
A6: Yes, the AAI543-H00 operates in a temperature range of -10°C to +60°C, making it suitable for most industrial environments.
Q7: Is the AAI543-H00 compatible with other Yokogawa products?
A7: Yes, the AAI543-H00 is compatible with other Yokogawa systems, providing seamless integration into existing setups.
Q8: What is the accuracy of the AAI543-H00 module?
A8: The module provides an accuracy of ±0.1% of full scale, ensuring that the output remains consistent and reliable over time.
Q9: Can the AAI543-H00 be used for multi-channel applications?
A9: While the AAI543-H00 supports a single channel, Yokogawa offers other models in the AAdesign series, like the AAI544 and AAI545, that support multiple channels.
Q10: In which industries is the AAI543-H00 commonly used?
A10: The AAI543-H00 is commonly used in industries such as chemical processing, power generation, and industrial automation where precise control of parameters is essential.
