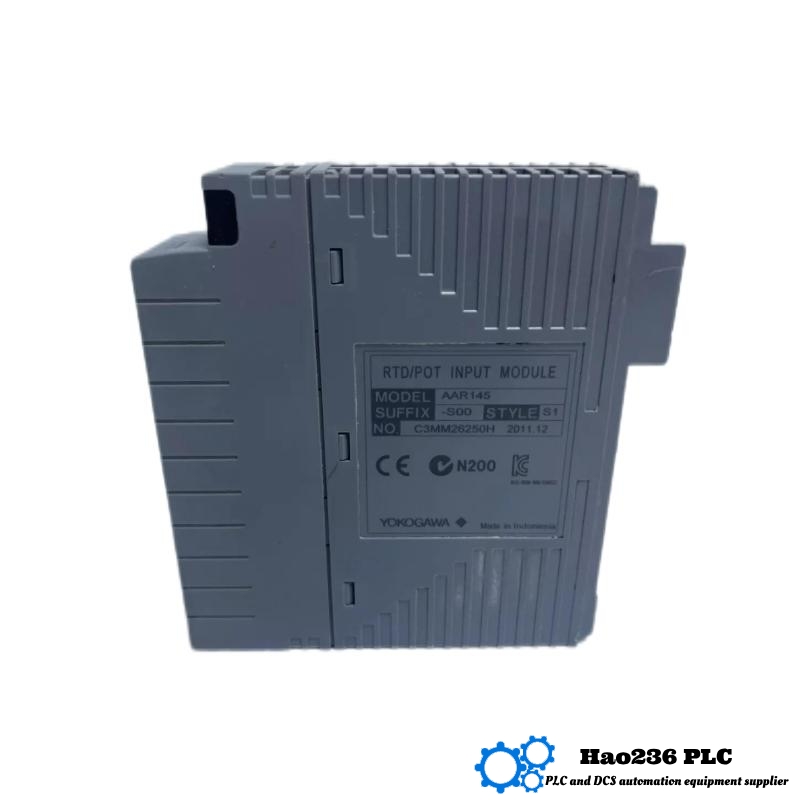

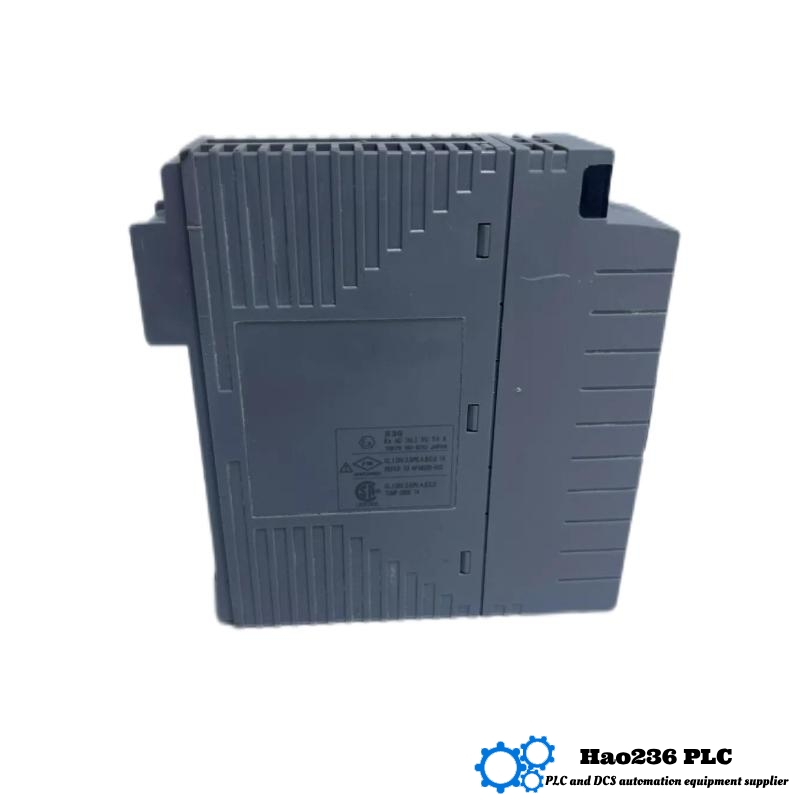

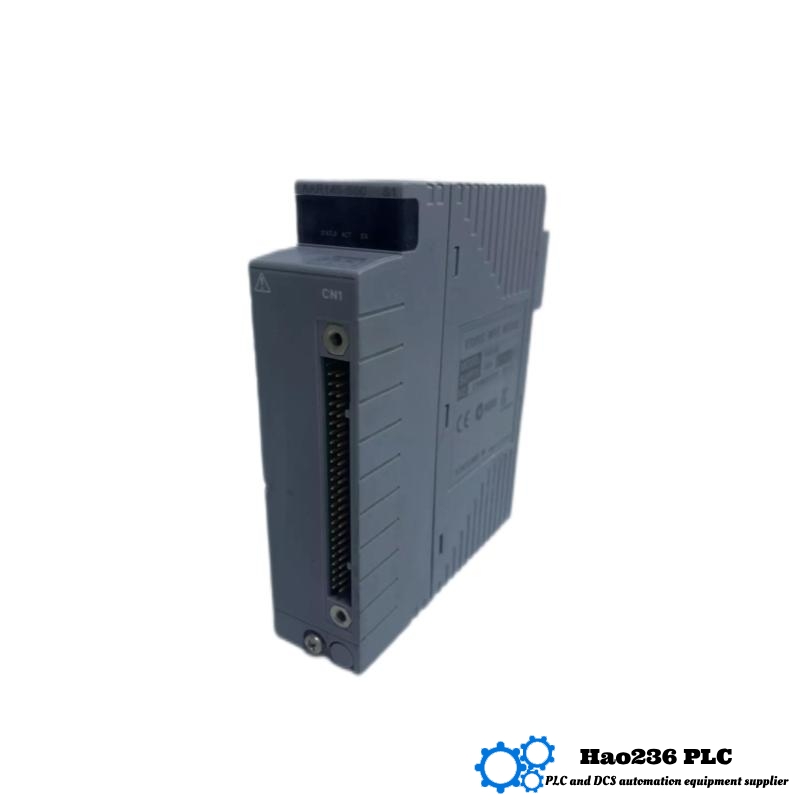

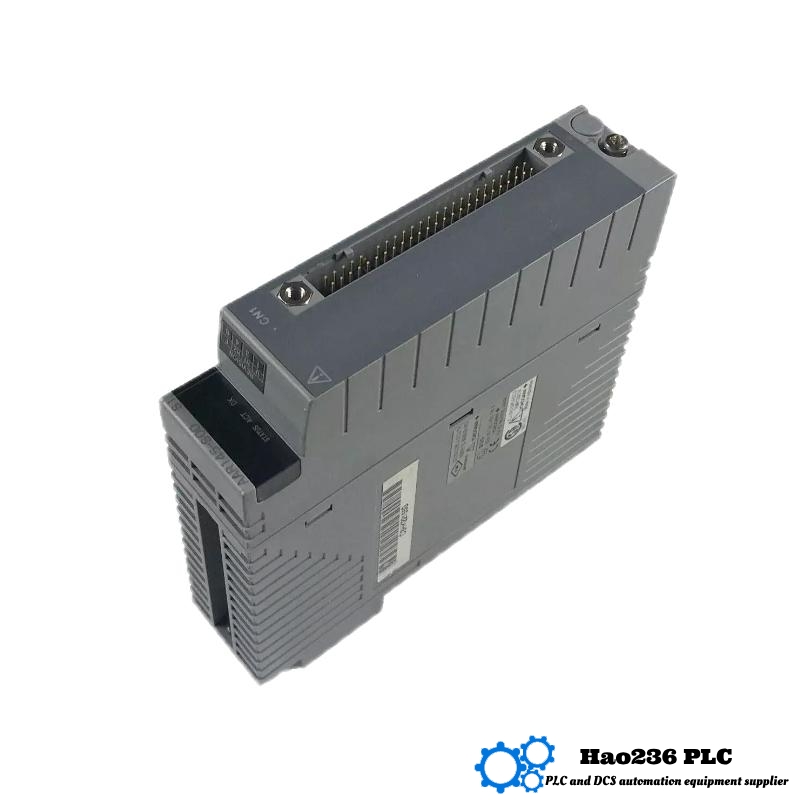

Product Overview for Yokogawa AAR145-S00 RTD/POT 16-Channel Input Module (Isolated)
Brand: Yokogawa
Series: AAR Series
Product Code: AAR145-S00
Product Type: 16-Channel RTD/POT Input Module (Isolated)
Product Introduction
The Yokogawa AAR145-S00 is a 16-channel RTD (Resistance Temperature Detector) and POT (Potentiometer) input module with galvanic isolation, designed to provide highly accurate and reliable temperature and resistance measurements in industrial automation systems. This module is part of the AAR Series and is engineered to meet the needs of applications requiring precise data acquisition from multiple sensors simultaneously.
The AAR145-S00 offers high flexibility with support for a variety of RTD and potentiometer sensors, making it an ideal choice for a wide range of industrial applications. It features galvanic isolation, which helps to protect your control systems from electrical noise and interference, ensuring stable and accurate readings. This module is commonly used in process control, machine monitoring, and environmental management systems, where temperature measurement and resistance sensing are critical.
Product Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 130 x 127.2 x 32.8 mm |
| Weight | 0.3 kg |
| Number of Channels | 16 |
| Input Type | RTD/Potentiometer (POT) |
| Isolation | Galvanic Isolation |
| Measurement Accuracy | ±0.1% FS (Full Scale) |
| Input Resistance Range | 10 Ω to 400 Ω |
| Temperature Range | -200°C to 850°C (RTD) |
| Power Supply | 24V DC |
| Signal Output | Digital Signal |
| Operating Temperature | -20°C to 60°C |
| Humidity | 5% to 95% RH (Non-condensing) |
Applications
The Yokogawa AAR145-S00 RTD/POT 16-Channel Input Module is designed for use in various industrial environments where precise temperature and resistance measurement is required. Some common applications include:
-
Process Control: Ideal for controlling temperature in processes such as chemical manufacturing, power plants, and HVAC systems, ensuring consistent product quality and energy efficiency.
-
Machine Monitoring: Used to monitor temperatures of critical equipment, motors, or machinery, helping to prevent overheating and reduce the risk of downtime or failures.
-
Environmental Monitoring: Suitable for environmental monitoring systems, measuring temperature and resistance in industrial sites or laboratories, ensuring compliance with environmental standards.
-
Calibration Systems: The module’s high precision makes it a great choice for temperature calibration systems where accuracy and consistency are essential.
-
Energy Management: Can be used to measure temperatures in energy management applications, optimizing system efficiency and preventing energy waste.
Product Advantages
-
High Precision and Reliability: The AAR145-S00 provides measurement accuracy of ±0.1% Full Scale, ensuring highly reliable data for critical control and monitoring applications.
-
Galvanic Isolation: With built-in galvanic isolation, the module prevents electrical interference and protects sensitive components from power surges or noise, ensuring stable system performance.
-
Flexible Input Options: The module supports both RTD and Potentiometer inputs, making it versatile and suitable for a wide range of applications and sensor types.
-
16 Channels: The 16-channel design allows for simultaneous measurement of multiple points, making it suitable for large systems with many sensors.
-
Wide Temperature Range: With a temperature range of -200°C to 850°C for RTDs, the module is capable of handling extreme temperature environments in industrial settings.
-
Compact and Robust: Designed for harsh industrial environments, the module is compact yet durable, fitting easily into control cabinets or automation systems.
-
Seamless Integration: The AAR145-S00 integrates smoothly with Yokogawa’s control systems, allowing for easy installation and reliable communication in complex automation setups.
Recommended Related Models in the AAR Series
| Model | Description | Channels | Input Type | Temperature Range |
|---|---|---|---|---|
| AAR143 | 8-Channel RTD/POT Input Module | 8 | RTD/Potentiometer | -200°C to 850°C |
| AAR146 | 32-Channel RTD/POT Input Module | 32 | RTD/Potentiometer | -200°C to 850°C |
| AAR144 | 16-Channel Thermocouple Input Module | 16 | Thermocouple | -200°C to 1372°C |
| AAR141 | 4-Channel Thermistor Input Module | 4 | Thermistor | -50°C to 150°C |
| AAR147 | 16-Channel RTD Input Module | 16 | RTD | -200°C to 850°C |
Other Popular Yokogawa Models
| Model | Channels | Input Type | Measurement Range | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| Yokogawa AAR145-S01 | 16 | RTD/POT | -200°C to 850°C | 130 x 127.2 x 32.8 | 0.3 |
| Yokogawa AAR145-S02 | 16 | RTD/POT | -200°C to 850°C | 130 x 127.2 x 32.8 | 0.3 |
| Yokogawa AAR145-S03 | 16 | RTD/POT | -200°C to 850°C | 130 x 127.2 x 32.8 | 0.3 |
| Yokogawa AAR146 | 8 | RTD/POT | -200°C to 850°C | 130 x 127.2 x 32.8 | 0.3 |
| Yokogawa AAR147 | 8 | RTD/POT | -200°C to 850°C | 130 x 127.2 x 32.8 | 0.3 |
FAQ (Frequently Asked Questions)
Q1: What types of sensors are compatible with the AAR145-S00 module?
A1: The AAR145-S00 supports RTD and potentiometer (POT) sensors for temperature and resistance measurements.
Q2: What is the accuracy of the AAR145-S00?
A2: The AAR145-S00 offers a measurement accuracy of ±0.1% Full Scale (FS).
Q3: What is the temperature range supported by the AAR145-S00?
A3: The AAR145-S00 supports a temperature range of -200°C to 850°C for RTD sensors.
Q4: Can the AAR145-S00 handle electrical interference?
A4: Yes, the AAR145-S00 features galvanic isolation to prevent electrical interference, ensuring stable and accurate measurements.
Q5: How many channels does the AAR145-S00 support?
A5: The AAR145-S00 supports 16 channels, allowing for multiple sensor connections simultaneously.
Q6: What is the operating temperature range of the AAR145-S00?
A6: The AAR145-S00 operates within a temperature range of -20°C to 60°C.
Q7: What power supply does the AAR145-S00 require?
A7: The AAR145-S00 requires a 24V DC power supply.
Q8: Can the AAR145-S00 be used in high-temperature environments?
A8: Yes, it can measure temperatures in the range of -200°C to 850°C for RTD sensors, making it suitable for high-temperature applications.
Q9: What is the weight of the AAR145-S00 module?
A9: The AAR145-S00 weighs 0.3 kg.
Q10: How is the AAR145-S00 mounted?
A10: The AAR145-S00 is designed for easy DIN rail mounting, ensuring quick and secure installation.
Precision Meets Versatility with Yokogawa’s AAR145-S00 RTD/POT Input Module
Achieve unrivaled accuracy in temperature and resistance measurements. The AAR145-S00 is the ideal choice for high-performance industrial applications.
16 Channels of Performance, One Reliable Solution
Streamline your industrial measurements with the AAR145-S00. 16 isolated channels provide seamless integration and superior reliability.
Isolation for Reliability, Accuracy You Can Trust
Protect your systems from interference with Yokogawa’s galvanically isolated AAR145-S00. Perfect for process control and environmental monitoring.
Compact, Powerful, Precise – The AAR145-S00 RTD/POT Input Module
Experience top-tier performance in a compact design. The AAR145-S00 provides high-accuracy measurements for all your industrial needs.
