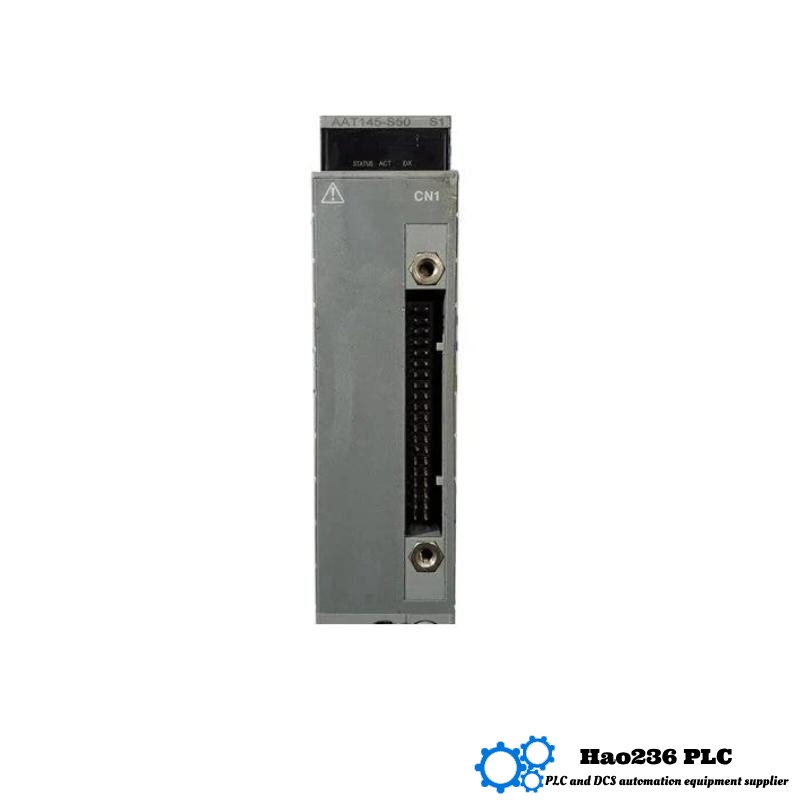

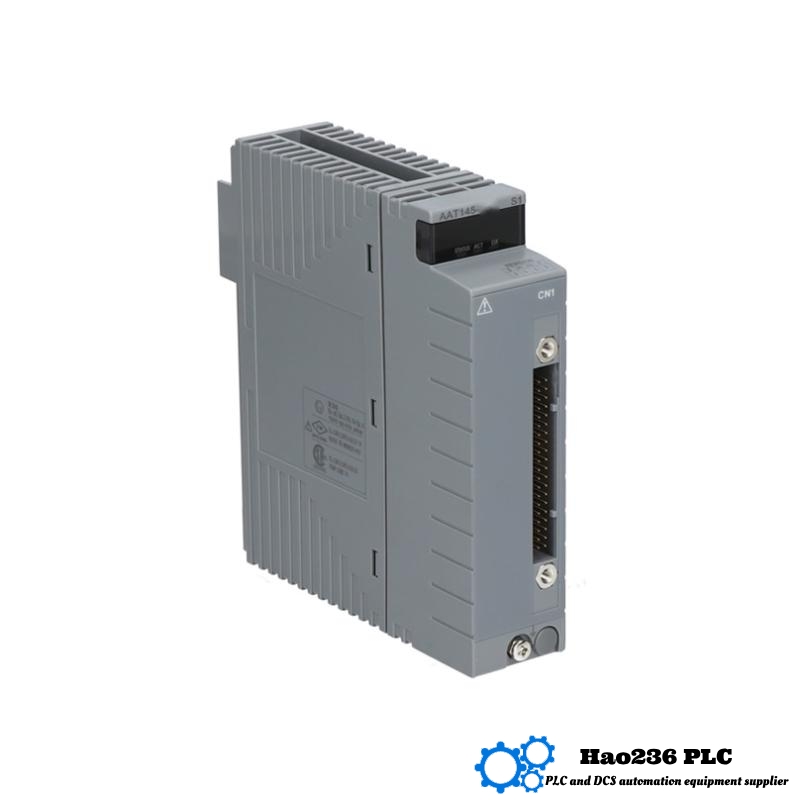

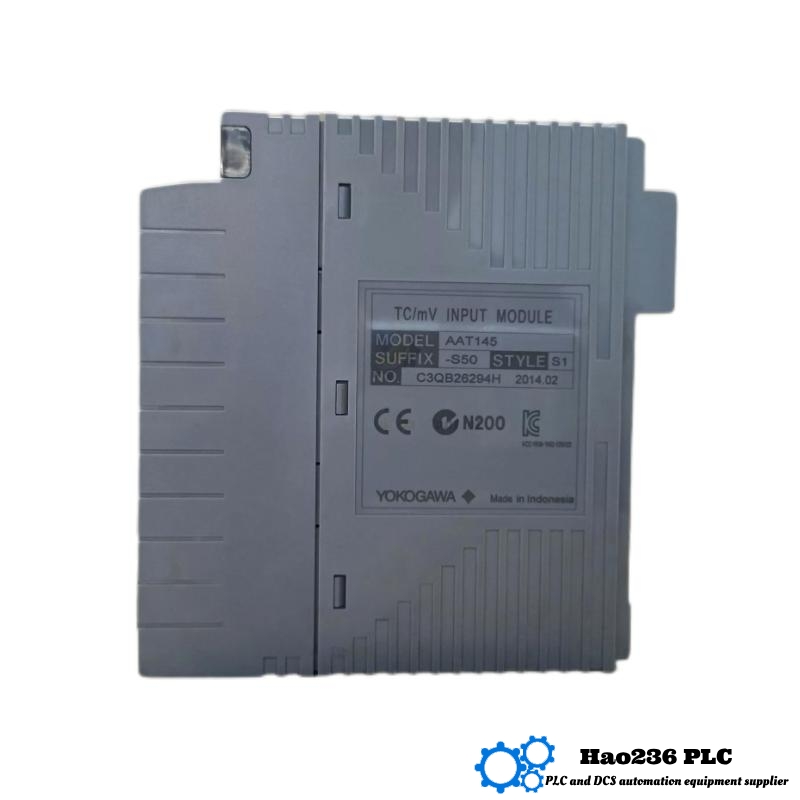

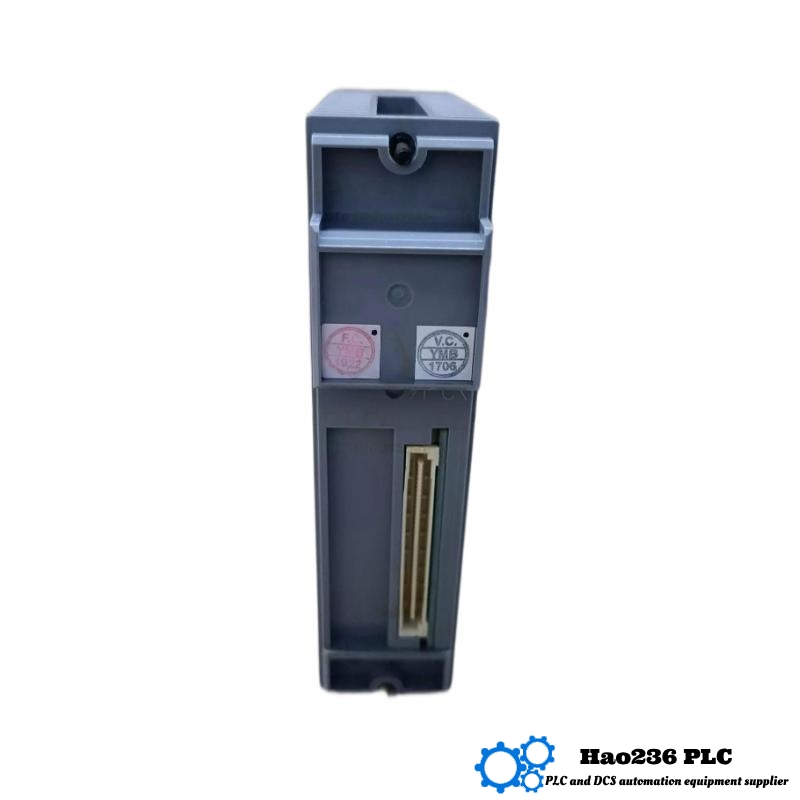

Yokogawa AAT145-S50 TC/mV Input Module
Product Overview:
The Yokogawa AAT145-S50 is a high-performance input module designed to handle thermocouple (TC) and millivolt (mV) signals with precision and accuracy. This module is ideal for measuring temperature and process variables in industrial control systems, particularly in applications requiring high-resolution temperature measurements. It integrates seamlessly into Yokogawa’s advanced control systems, providing reliable and consistent data for process control.
The AAT145-S50 is part of the Yokogawa family of analog input modules, offering a robust solution for industries where accurate, real-time measurement of temperature or millivolt signals is crucial for optimal performance. With superior isolation and reliable signal processing, it is a preferred choice for industries such as oil & gas, power generation, and manufacturing.
Product Features and Benefits:
-
Wide Signal Compatibility: The AAT145-S50 accepts both thermocouple and millivolt input signals, making it versatile for a variety of industrial applications.
-
High Accuracy: It ensures accurate and reliable measurements, making it ideal for environments where precision is critical.
-
Electrical Isolation: With built-in isolation, it minimizes the impact of electrical noise and ground loop interference, enhancing signal integrity.
-
Compact Design: The module’s slim and compact design ensures easy integration into existing systems and space-constrained environments.
-
Rugged and Durable: Built to withstand harsh industrial environments, it delivers reliable performance over long periods of use.
-
Simple Integration: The AAT145-S50 is easy to integrate into existing Yokogawa systems, providing a seamless interface for temperature and millivolt measurement.
Applications:
The Yokogawa AAT145-S50 is widely used in various industrial applications where precise temperature and millivolt measurements are required. Key applications include:
-
Temperature Measurement Systems: The module is ideal for collecting data from thermocouples in temperature control systems, offering precise temperature monitoring in chemical processing, oil & gas production, and manufacturing.
-
Process Monitoring and Control: It is used in process industries where millivolt signals need to be measured for system monitoring, including temperature control in furnaces, reactors, and other industrial processes.
-
Energy Management Systems: Used for monitoring temperature in power generation systems, ensuring optimal performance and safety.
-
Environmental Monitoring: The module can also be used in environmental monitoring applications where accurate temperature measurements are crucial.
Product Advantages:
-
Versatility: The AAT145-S50 supports both thermocouples and millivolt signals, providing flexibility for various industrial processes.
-
Reliable Isolation: With electrical isolation, it ensures that the signals remain free from interference, improving measurement accuracy and reliability.
-
Ease of Use: Its compact design allows for simple integration, reducing installation complexity and downtime.
-
High Performance: With excellent accuracy and performance, it meets the demands of industries where high precision is essential.
-
Durable Construction: Designed to endure the challenges of industrial environments, this module is built for longevity and stability.
Brand:
-
Brand: Yokogawa
Product Specifications:
| Parameter | Description |
|---|---|
| Model | Yokogawa AAT145-S50 |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
| Input Type | Thermocouple (TC), Millivolt (mV) |
| Input Channels | 16 channels |
| Thermocouple Types | J, K, T, E, N, R, S, B, L, U |
| Millivolt Range | ±100 mV |
| Power Supply | 24 VDC ± 10% |
| Operating Temperature | -20°C to +60°C |
| Isolation | Fully isolated input channels |
| Accuracy | ±0.1% of full scale |
| Operating Humidity | 5% to 95% non-condensing |
Recommended Related Models:
| Model | Description | Key Specifications |
|---|---|---|
| Yokogawa AAT145-S60 | Multi-channel thermocouple input module | 16 channels, supports multiple TC types |
| Yokogawa AAT145-S70 | High-accuracy temperature measurement module | 16 channels, superior signal isolation |
| Yokogawa AAT145-S80 | Multi-channel mV input module | 16 channels, enhanced mV measurement |
| Yokogawa AAT145-S40 | 8-channel thermocouple input module | Supports multiple TC types, compact design |
| Yokogawa AAT145-S90 | 8-channel input module for process monitoring | Ideal for both thermocouple and mV signals |
Popular Yokogawa Products:
| Model | Description | Key Specifications |
|---|---|---|
| Yokogawa AAR145-S50 | RTD/Potentiometer input module | 16 channels, supports PT100/PT1000 |
| Yokogawa AAR145-S40 | 8-channel RTD input module | Compact, high-accuracy temperature monitoring |
| Yokogawa AAR145-S10 | General-purpose analog input module | 16 channels, versatile input compatibility |
| Yokogawa AAR115-S50 | Temperature input module with isolation | 8 channels, ideal for industrial systems |
| Yokogawa AAR145-S20 | High-performance temperature input module | 8 channels, fast response time |
FAQ for Yokogawa AAT145-S50:
Q1: What types of input signals are compatible with the AAT145-S50?
A1: The AAT145-S50 supports thermocouple (TC) and millivolt (mV) input signals, making it versatile for various temperature and process measurements.
Q2: How many input channels does the AAT145-S50 support?
A2: The module supports up to 16 input channels, allowing for simultaneous measurement of multiple sensors.
Q3: What types of thermocouples are supported by the AAT145-S50?
A3: The AAT145-S50 supports a wide range of thermocouple types, including J, K, T, E, N, R, S, B, L, and U.
Q4: What is the input range for millivolt signals on the AAT145-S50?
A4: The module can handle a millivolt input range of ±100 mV.
Q5: What is the operating temperature range of the AAT145-S50?
A5: The AAT145-S50 operates in a temperature range of -20°C to +60°C.
Q6: What is the power supply requirement for the AAT145-S50?
A6: The module requires a 24 VDC ± 10% power supply.
Q7: How precise is the AAT145-S50 in measuring temperature?
A7: The module provides an accuracy of ±0.1% of full scale for both thermocouple and millivolt inputs.
Q8: Can the AAT145-S50 be used in hazardous environments?
A8: Yes, it is designed for use in industrial environments, providing robust and reliable measurement capabilities even in harsh conditions.
Q9: What is the isolation capability of the AAT145-S50?
A9: The module features full isolation between input channels, ensuring minimal signal interference and maintaining measurement accuracy.
Q10: How much does the AAT145-S50 weigh?
A10: The module weighs 0.2 kg, making it lightweight and easy to integrate into your system.
Unmatched Precision for Temperature Measurement
Discover superior accuracy with the Yokogawa AAT145-S50. Designed for thermocouple and millivolt input signals, it ensures high-quality data collection in industrial environments, providing you with reliable temperature and process monitoring.
The Flexibility You Need: Yokogawa AAT145-S50
Whether you need thermocouple or millivolt measurements, the AAT145-S50 adapts to your application needs. Its flexible design and advanced isolation features make it the perfect choice for complex industrial processes.
Enhanced Signal Integrity with Yokogawa AAT145-S50
Ensure accurate and interference-free readings with the Yokogawa AAT145-S50. With full isolation and high-precision capabilities, this module is ideal for environments that demand flawless temperature and process monitoring.
Reliable Data at Your Fingertips: Yokogawa AAT145-S50
Achieve consistent and accurate data collection with the Yokogawa AAT145-S50. This high-performance module supports both thermocouple and millivolt inputs, making it a versatile solution for any industrial application.
